Mercedes A0099907604 - Болт

B 250 246.244

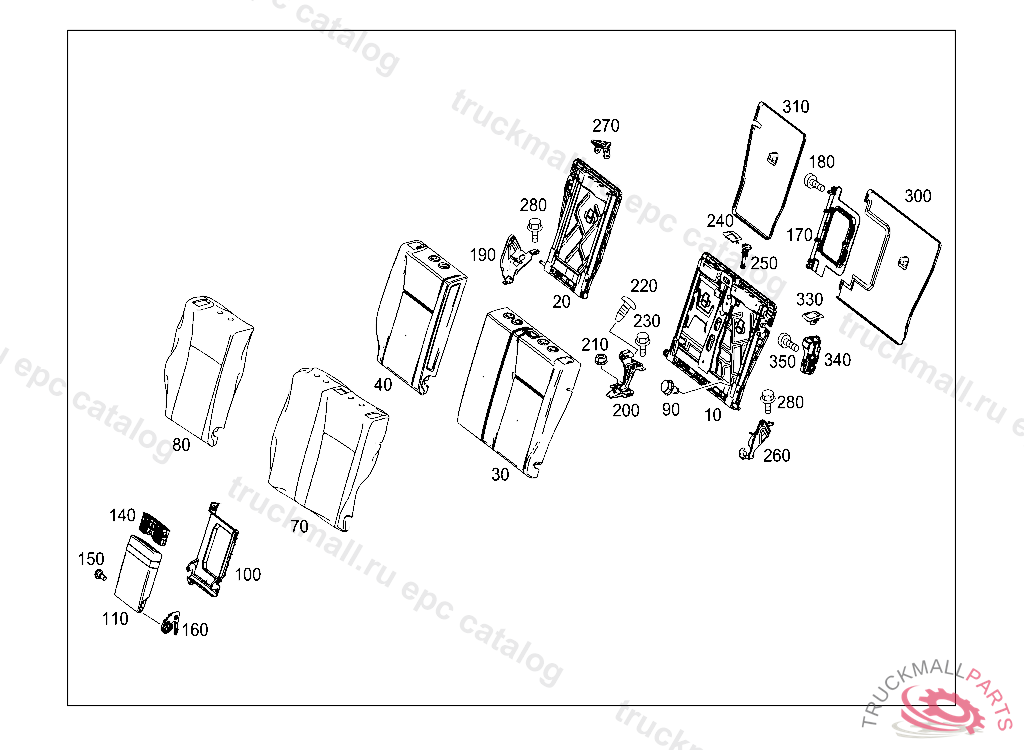

92 REAR SEAT BENCH - 022 REAR FOLDING BACKREST

Поз.
Артикул
Описание
10
A2469200032
BACKREST FRAME LEFT
10
A2469200334
BACKREST FRAME LEFT
10
A2469200700
BACKREST FRAME LEFT
10
A2469200132
BACKREST FRAME LEFT
20
A2469200434
BACKREST FRAME RIGHT
20
A2469200800
BACKREST FRAME RIGHT
30
A2469200316
PAD REAR SEAT BACKREST LEFT
30
A2469200516
PAD REAR SEAT BACKREST LEFT
30
A2469200716
PAD REAR SEAT BACKREST LEFT
30
A2469204100
PAD REAR SEAT BACKREST LEFT
40
A2469204200
PAD REAR SEAT BACKREST RIGHT
40
A2469200016
PAD REAR SEAT BACKREST RIGHT
40
A2469200216
PAD REAR SEAT BACKREST RIGHT
70
A2469201560
COVER REAR SEAT BACKREST LEFT
70
A2469200160
COVER REAR SEAT BACKREST LEFT
70
A2469208900
COVER REAR SEAT BACKREST LEFT
70
A2469200760
COVER REAR SEAT BACKREST LEFT
70
A2469200960
COVER REAR SEAT BACKREST LEFT
70
A2469201960
COVER REAR SEAT BACKREST LEFT
70
A2469201160
COVER REAR SEAT BACKREST LEFT
70
A2469200360
COVER REAR SEAT BACKREST LEFT, 9H38 001A QFT246A2010 BLACK
70
A2469208700
COVER REAR SEAT BACKREST LEFT
70
A2469200560
COVER REAR SEAT BACKREST LEFT
70
A2469201360
COVER REAR SEAT BACKREST LEFT
70
A2469201760
COVER REAR SEAT BACKREST LEFT
70
A2469208100
COVER REAR SEAT BACKREST LEFT
80
A2469207200
COVER REAR SEAT BACKREST RIGHT
80
A2469208200
COVER REAR SEAT BACKREST RIGHT
80
A2469204401
COVER REAR SEAT BACKREST RIGHT, J 20131203 N 20131129 9H38 001A QFT246A2010 BLACK
80
A2469200860
COVER REAR SEAT BACKREST RIGHT
80
A2469200460
COVER REAR SEAT BACKREST RIGHT
80
A2469200060
COVER REAR SEAT BACKREST RIGHT, J 20131203 N 20131129 9H38 001A QFT246A2010 BLACK
80
A2469200660
COVER REAR SEAT BACKREST RIGHT
80
A2469201060
COVER REAR SEAT BACKREST RIGHT
80
A2469207300
COVER REAR SEAT BACKREST RIGHT
80
A2469200260
COVER REAR SEAT BACKREST RIGHT
90
N000000000300
HEXALOBULAR BOLT BRACKET TO REAR AXLE M10X16
100
A2469230400
COVER CUT-OUT FOR ARMREST, 9051QFT246A2300 BLACK
110
A2469700430
FOLDING ARMREST REAR SEAT BENCH
110
A2469700230
FOLDING ARMREST REAR SEAT BENCH
110
A2469700330
FOLDING ARMREST REAR SEAT BENCH
140
A0998100213
BEVERAGE HOLDER , 9051QFT246A2300 BLACK
150
A0009917716
BEARING BOLT ARMREST ATTACHMENT
160
A2469730246
NOTCHED ELEMENT RIGHT
160
A2469730146
NOTCHED ELEMENT LEFT
170
A2469700029
FLAP ARMREST , 9051QFT246A2300 BLACK
180
N000000001527
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
180
N000000004778
SCREW PLATE AT HANDLE, J 47509420000815
190
A2469200224
PIVOT BEARING OUTSIDE RIGHT
200
A2469200324
PIVOT BEARING REAR BACKREST MIDDLE
210
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
220
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
230
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
240
A2469230300
COVER BELT OUTLET
250
A2469700241
GUIDE FOR HEADREST RIGHT REAR SEAT HEAD RESTR., OUTSIDE
250
A2469700441
GUIDE FOR HEADREST LEFT REAR SEAT HEAD RESTRAINT, INSIDE
250
A2469700341
GUIDE FOR HEADREST RIGHT REAR SEAT HEAD RESTRAINT, INSIDE, Replaced By: A2469700441
260
A2469200124
PIVOT BEARING OUTSIDE LEFT
270
A2469200209
RETAINING CLIP LOCK RIGHT
270
A2469200109
RETAINING CLIP LOCK LEFT
280
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
300
A2469240300
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
300
A2469240900
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
300
A2469240000
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
300
A2469241100
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
300
A2469240500
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
300
A2469240100
COVER REAR BACKREST LEFT, 9E83QFT246A2160 BLACK
310
A2469240600
COVER REAR BACKREST RIGHT, 9E83QFT246A2160 BLACK
310
A2469240400
COVER REAR BACKREST RIGHT, 9E83QFT246A2160 BLACK
330
A2469230200
MOLDING REAR RIGHT
340
A2469200272
LOCK FOR SEAT BACKREST REAR RIGHT
340
A2469200172
LOCK FOR SEAT BACKREST REAR LEFT
350
N000000001428
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
350
A0099907604
BOLT UNLOCKING MECHANISM TO FRAME M8X50
350
N000000003724
HEXALOBULAR BOLT CATCH ON BACKREST FRAME, LEFT M8X50, J 20120827 V 00000020130404
