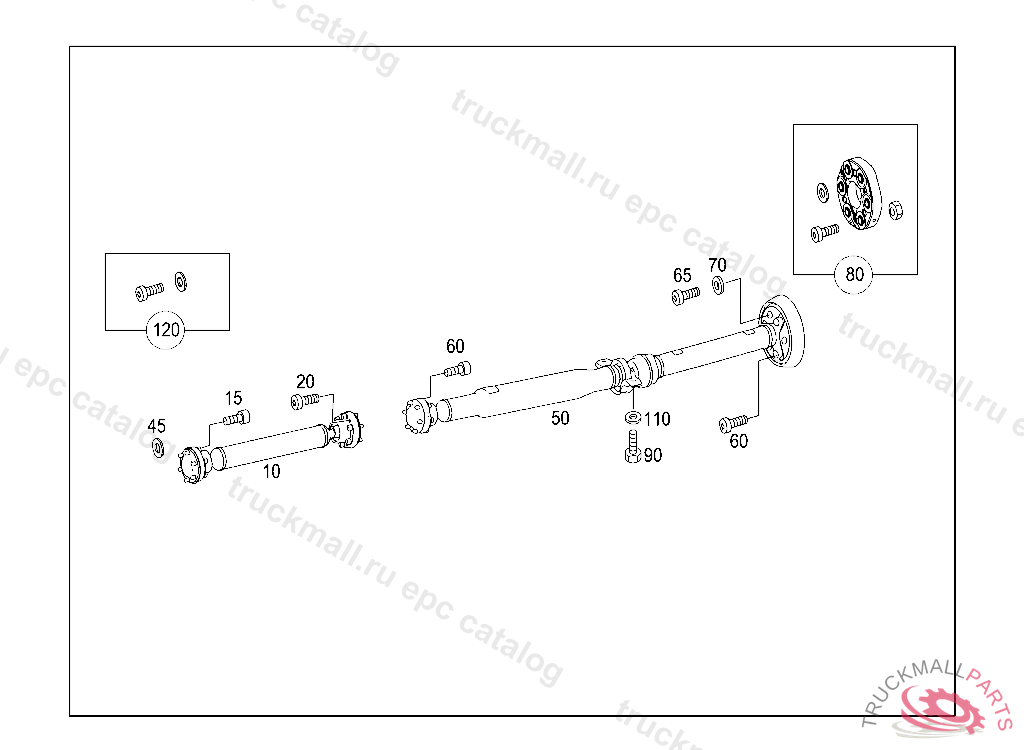

Поз.
Артикул
Описание
10
PROPELLER SHAFT TRANSFER CASE TO FRONT AXLE GEAR
10
PROPELLER SHAFT TRANSFER CASE TO FRONT AXLE GEAR
15
HEXALOBULAR BOLT. SCREW SHUT-OFF COCK AND 2/2-WAY VALVE TO DISC WHEEL
20
HEXALOBULAR BOLT. SCREW SHUT-OFF COCK AND 2/2-WAY VALVE TO DISC WHEEL
45
SHIM PROPELLER SHAFT TO FRONT AXLE GEAR 0,5 MM
45
SHIM PROPELLER SHAFT TO FRONT AXLE GEAR 2,0 MM
45
SHIM PROPELLER SHAFT TO FRONT AXLE GEAR 1,5 MM
45
FITTED WASHER AS REQUIRED 1.0 MM
45
SHIM TO FRONT AXLE GEAR 16X3,0
45
SHIM TO FRONT AXLE GEAR 16X2,5
50
PROPELLER SHAFT TO REAR AXLE
60
HEXALOBULAR BOLT. SCREW SHUT-OFF COCK AND 2/2-WAY VALVE TO DISC WHEEL
65
HEXAGON HEAD BOLT. SCREW BRACKET TO REAR AXLE
80
TS FLEXIBLE DISK PARTS KIT REAR
80
FLEXIBLE JOINT DISC PARTS KIT REAR M12, Replaced By: A0004111100
90
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
90
SCREW CONNECTOR TO REAR SHIFTING ROD
90
SCREW HYDROPNEUMATIC SPRING LEG TO REAR AXLE
110
WASHER BRACKET TO COVERING
110
WASHER BRACKET TO FUEL TANK SUPPORT
120
TS FASTENING PARTS KIT PROPELLER SHAFT TO FRONT AXLE GEAR
120
TS FASTENING PARTS KIT AT FRONT AXLE M10
