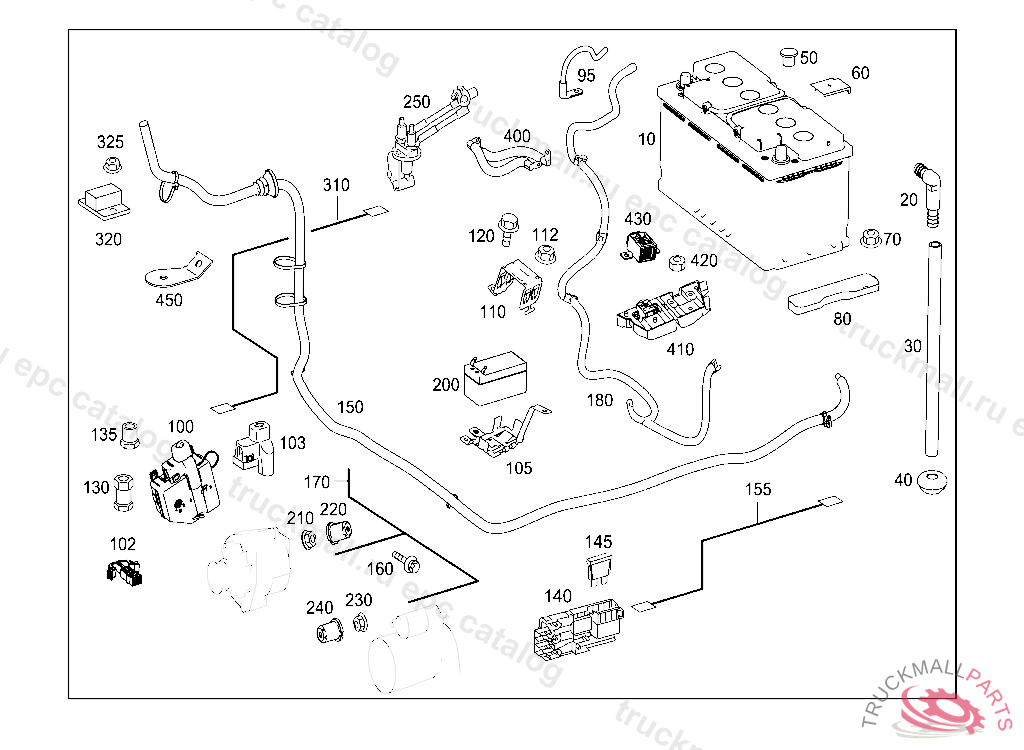

Поз.
Артикул
Описание
10
BATTERYVLIES,70 AH / 450 AHHOPPECKE
10
STARTER BATTERY IN REAR END 12V / 95AH
10
BATTERY FILLED 12V/95AH
20
ELBOW FITTING. DISTRIBUTOR
30
HOSE , ORDER BY THE METER
40
GROMMET ENGINE COMPARTMENT FEED-THROUGH
50
STOP PLUG. PLUG ON BATTERY,LATERALLY
60
BOOT POS. POLE
70
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
70
NUT HORN TO BRACKET M8
80
BRACKET BATTERY FASTENING
80
BRACKET BATTERY FASTENING
95
GROUND STRAP FROM BATTERY TO GROUNF CONNECTION
100
FUSE BOX JUMP-STARTING POINT, A 10197220090709800, Replaced By: A1645400350
100
FUSE BOX PREFUSE BOX AND JUMP STARTING TERMINAL POINT, A 54961420090831
100
FUSE BOX JUMP-STARTING POINT, A 09458520081001809 A 11190420100430
100
FUSE BOX PREFUSE BOX AND JUMP STARTING TERMINAL POINT, A 53600720090709800
102
LOCK FUSE BOX, A 00558020051003806
103
COVER JUMP-STARTING POINT
105
BRACKET BATTERY BACKUP
110
BRACKET BATTERY BACKUP
112
NUT COVERING TO CAB FIRE WALL
120
HEXAGON HEAD BOLT LINE MOUNTING M6X10
130
NUT JUMP START NEGATIVE TERMINAL
130
NUT BATTERY CABLE TO CABLE CONNECTOR
135
HEX NUT JUMP-STARTING POINT, A 04721120061023
140
FUSE BOX FRONT PREFUSE BOX F33, A 37349120080108 A 47093920080908
140
FUSE BOX FRONT PREFUSE BOX F33, A 47093920080908
150
POS.CABLE BATTERY CABLE
150
BATTERY CABLE HIGH CAPACITY BATTERY, A 14104920110926
150
POS.CABLE HIGH CAPACITY BATTERY, A 14104820110926
155
ELECTRICAL WIRING HARNESS BATTERY POS. TERM. TO PREFUSE BOX G1 - F33
160
SCREW BRACKET TO SIDE MEMBER M8X20
180
WIRING HARNESS JUMP-STARTING POINT TO ALTERNATOR
200
BATTERY BATTERY BACKUP 1.2AH, A 01175020070731808
210
NUT CABLE TO ALTERNATOR,TERMINAL 30
220
PROTECTIVE CAP. BOOT NUT , M8
230
NUT , Replaced By: N913023006001
230
NUT CABLE TO ALTERNATOR,TERMINAL 30
240
PROTECTIVE CAP. BOOT NUT , M8
240
PROTECTIVE CAP. PROTECTION CAP PARTITION PANEL TO GRIP RAIL
250
SWITCH BATTERY CUT-OFF
310
ELECTRICAL WIRING HARNESS PREFUSE BOX AND JUMP STARTING TERMINAL POINT F32 - F58
320
RECTIFIER
320
INVERTER115V
325
NUT COVERING TO CAB FIRE WALL
400
GROUND LINE ENGINE SUPPORT, A 64598420100819
400
GROUND STRAP ENGINE SUPPORT, A 11696320100819
