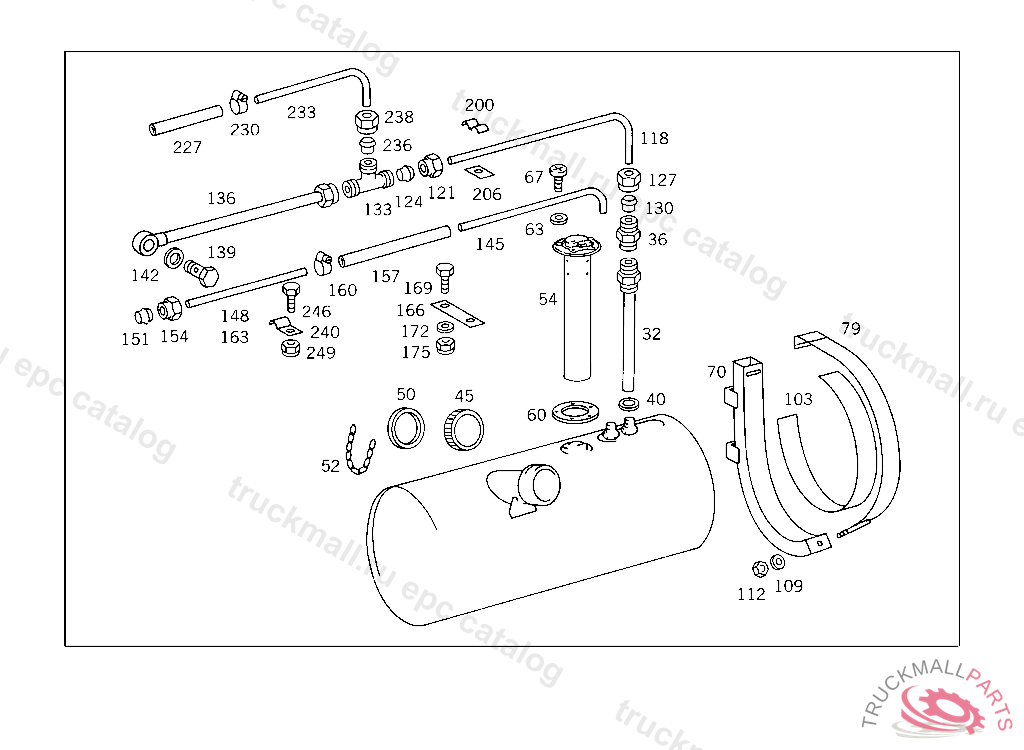

Поз.
Артикул
Описание
32
RISING PIPE ,004624598595
32
RISING PIPE , Replaced By: A3084707026
36
FITTING
40
SEAL RING AT TANK
45
FILLER CAP
45
FILLER CAP , Replaced By: A3444700205
50
SEAL RING
52
CHAIN FILLER CAP
54
SENDER UNIT , Replaced By: A3085427017
60
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
63
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
67
SCREW COMPRESSED AIR LINE MOUNTING
67
SCREW CONTROL UNIT
70
SUPPORT ,004623
70
SUPPORT , NOT USED
79
STRAP ,004624
103
RUBBER STRIP FUEL TANK TO SUPPORT
109
WASHER SUPPORT TO FRAME,D 127794
112
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
118
LINE FROM FUEL TANK TO "T" CONNECTION FITTING,004624598595
118
LINE ,004623
121
UNION NUT ,598595
124
BALL-TYPE NIPPLE. SEAL CONE FROM FUEL TANK TO THRU-WAY VALVE (FEED LINE)
127
NUT. UNION NUT RETURN
130
SEAL CONE ,598595
133
T-FITTING , Replaced By: A0009902670
136
HOSE
139
HOLLOW SCREW , Replaced By: N915036010100
142
SEAL RING INJECTION PUMP
145
LINE FROM RUBBER HOSE TO FUEL TANK
148
LINE FROM RUBBER HOSE TO FUEL TANK,004624598595
148
LINE , Replaced By: A3084707264
151
SEAL CONE ,598595
154
NUT. UNION NUT RETURN
157
HOSE FROM RETURN LINE TO RETURN CONNECTION
160
CLAMP , Replaced By: N916017011001
160
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
163
LINE , Replaced By: A3084707164
163
LINE FROM FUEL FILTER TO RUBBER HOSE,598595
166
BRACKET FUEL LINE
169
SCREW PLUG SOCKET TO FRAME
172
WASHER TRAILER PLUG SOCKET TO BRACKET
175
NUT
200
CLAMP
200
CLAMP , Replaced By: A3379950332
206
BRACKET FUEL LINE
206
BRACKET FUEL LINES
227
HOSE , ORDER BY THE METER
227
HOSE , Replaced By: A3769978182
227
HOSE , Replaced By: A3440780081
230
CLAMP LINE MOUNTING
233
LINE , Replaced By: A3094701864
233
LINE LEAK RETURN,303382
236
BALL-TYPE NIPPLE. SEAL CONE FROM FUEL TANK TO THRU-WAY VALVE (FEED LINE)
238
UNION NUT ,598595
240
FIXING CLAMP. CLAMP ,845437
246
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
249
NUT PUMP TO BRACKET
999
LINE , Replaced By: A3084707064
999
FUEL TANK , Replaced By: A3084700201
999
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
999
ELBOW FITTING FUEL LINES TO FITTING CONEXAO ESPIGAO - "L"
999
CONNECTOR
999
PIPING ,KB848396
999
FUEL TANK , Replaced By: A3084700201
999
FUEL TANK , Replaced By: A3084707401
999
FUEL TANK ,004624, Replaced By: A3084700201
999
STRAP
