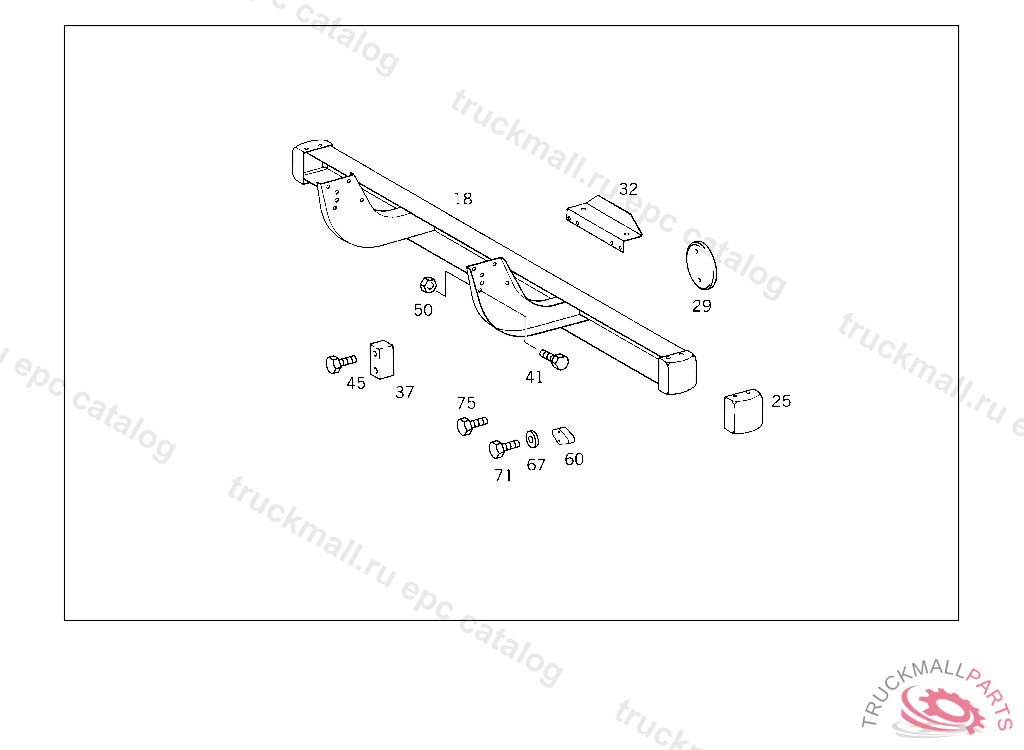

Поз.
Артикул
Описание
18
BUMPER UNDERRUN PROTECTION, FROM IDENT NO.580377 ALSO INSTALLED ON 576726,576918,577032,577388,578349 TO BE ADAPTED DURING ASSEMBLY
18
BUMPER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 580376, Replaced By: A3095201771
18
BUMPER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 580376, Replaced By: A3095201871, +002A3095250463
18
BUMPER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 580376, Replaced By: A3095201871
18
BUMPER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 580376, Replaced By: A3095201871
18
BUMPER
25
CAP
29
REFLECTOR
32
STIFFENING UNDERRUN PROTECTION
37
SHIM UNDERRUN PROTECTION
41
SCREW END PIECE TO EXHAUST PIPE M 10X25
45
SCREW , Replaced By: N304017010055
45
SCREW , Replaced By: N304017010050
50
NUT STRAP TO BRACKET
50
NUT , Replaced By: N910113010000
60
SHIM JUNCTION BOX
60
SHIM JUNCTION BOX TO FRAME, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 368971
67
BUSHING INTERMEDIATE LEVER TO CONSOLE
71
SCREW FUSE BOX TO BRACKET M4X35
71
SCREW , Replaced By: N007985004235
75
SCREW , Replaced By: N007985006180
75
SCREW SWITCH TO BRACKET M6X35
999
BRACKET REFLECTOR
999
SHIM REFLECTOR BRACKET TO TAIL LAMP BRACKET
999
BUMPER
999
BUMPER , Replaced By: A3095200371
999
BUMPER , Replaced By: A3095200271
