Поз.
Артикул
Описание

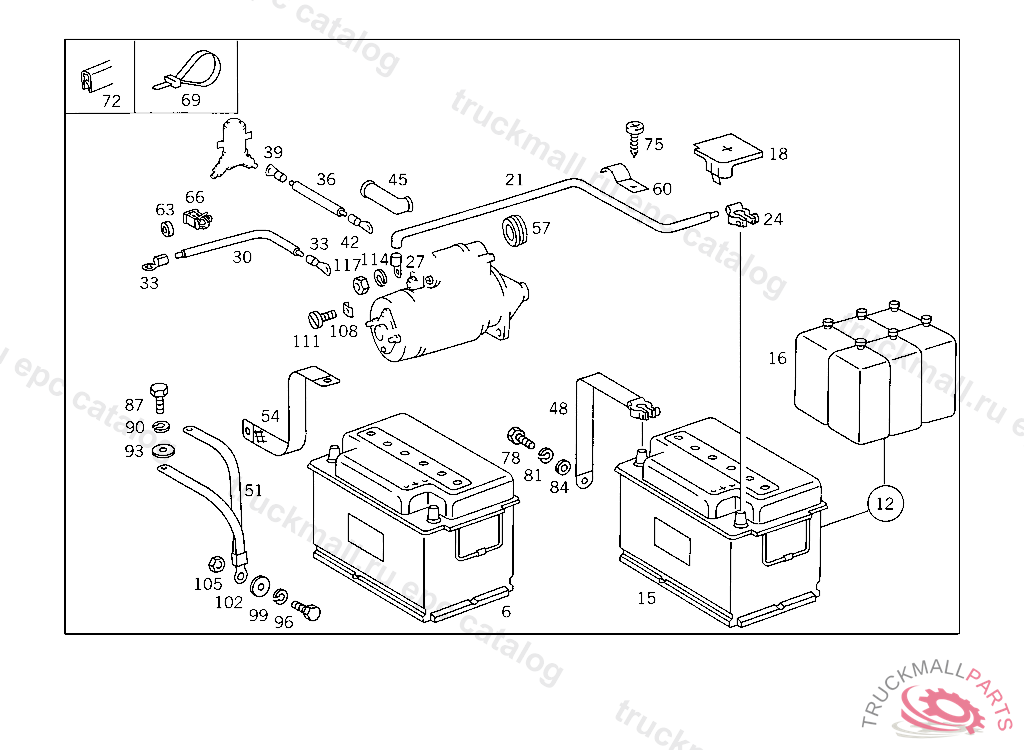

6
BATTERY12 V/100 AH
6
BATTERY , Replaced By: A0035410001
12
BATTERY , Replaced By: A0035419201, +001A0009891415
12
BATTERY , Replaced By: A1405400101
12
BATTERY , Replaced By: A0045414601
12
BATTERY100 AH
15
BATTERY12V/88AH, Replaced By: A0009823808
15
BATTERY , Replaced By: A0045413101
15
BATTERY , Replaced By: A0045411501
15
BATTERY , Replaced By: A0025414101
16
BATTERY ACID BOTTLE SET , Replaced By: A0009891415
16
BATTERY ACID BOTTLE SET
18
BOOT , Replaced By: A0015460835
21
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
21
ELECTRIC CABLE , Replaced By: A6735460011
24
SOLDERING TERMINAL POS. POLE
27
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
36
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
39
CABLE SHOE NEG. CABLE
42
CABLE SHOEA 10-35
45
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
48
NEG. CABLE FROM BATTERY TO BATTERY SUPPORT
51
GROUND STRAP FROM BELL HOUSING TO CAB SIDE MEMBER,369112
51
GROUND STRAP FROM CAB RIGHT SIDE MEMBER TO BELL HOUSING
51
GROUND STRAP , Replaced By: A3135400041
51
GROUND STRAP , Replaced By: A3095400741
54
GROUND STRAP FROM CAB RIGHT SIDE MEMBER TO FRAME SIDE MEMBER
57
GROMMET 34 MM
60
CLAMP FUEL LINE TO BRACKET
60
CLAMP , Replaced By: A1109950401
60
CLAMP , Replaced By: A3129952420
75
SHEET METAL SCREW BRACKET TO CAB
75
SHEET METAL SCREW COVER PLATE TO COVER PLATE
78
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
81
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
84
WASHER BRACKET TO COVERING
84
WASHER , Replaced By: N009021010209
87
SCREW BRACKET TO CONSOLE
90
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
93
WASHER BRACKET TO COVERING
93
WASHER , Replaced By: N009021010209
96
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
99
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
102
WASHER BRACKET TO COVERING
102
WASHER , Replaced By: N009021010209
105
NUT BRACKET TO SUPPORT AND TO END PIECE
108
WASHER , Replaced By: A0001510011
108
MOUNTING BOW CABLE TO STARTING MOTOR,TERMINAL 50
111
SCREW ,374026
114
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
117
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT AIR CLEANER ELEMENT
999
ELECTRIC CABLE FROM SWITCH BOX TO HEATER PLUG STARTING SWITCH
999
REPAIR KIT , Replaced By: A0009970434, +001A0009910145, +001A0009975486
999
CLAMP LINE TO CAB
999
BOOT , Replaced By: A0005460135
999
BRACKET
999
SHIM REFLECTOR BRACKET TO TAIL LAMP BRACKET
999
ELECTRIC CABLE STOP LIGHT SWITCH,303365
999
BRACKET SPEEDOMETER ADAPTER,182065
999
ELECTRIC CABLE FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR, 035655
999
PLUG
999
LOOM TIE , Replaced By: A0019974190
