Главная
›
Mercedes
›
VAN
›
LF 508 D/LF 608 D
›
310.350
›
43 SA-VERZEICHNIS
›

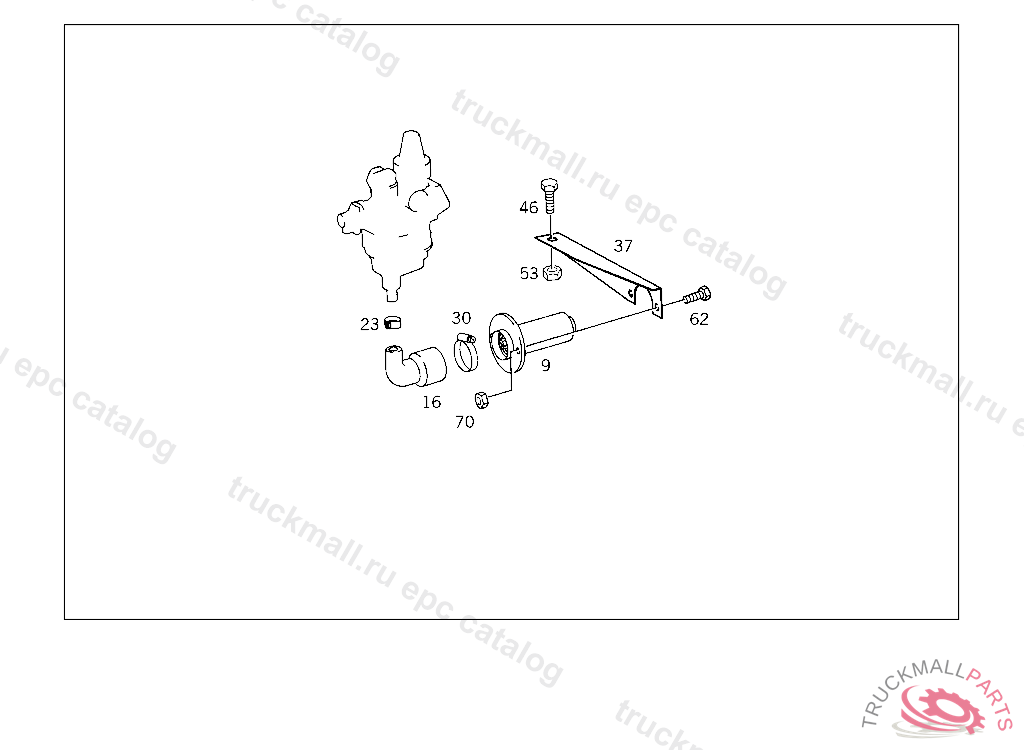

001 MUFFLER USED FOR PRESSURE REGULATOR
Mercedes N304017006018 - Болт
LF 508 D/LF 608 D 310.350
43 SA-VERZEICHNIS - 001 MUFFLER USED FOR PRESSURE REGULATOR
Поз.
Артикул
Описание
9
A0004300170
MUFFLER PRESSURE REGULATOR BREATHING
9
A0004300070
MUFFLER , Replaced By: A0004300170
16
A3094310086
CUP BRACKET TO SUPPORT
23
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
23
N916017020000
CLAMP , Replaced By: N000000000667
30
N916017040000
CLAMP , Replaced By: N000000000671
30
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
37
A3094314540
BRACKET MUFFLER,707221
46
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
53
N910113010000
NUT STRAP TO BRACKET
53
N913004010008
NUT , Replaced By: N910113010000
62
N000933006103
SCREW , Replaced By: N304017006018
62
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
70
N913004006001
NUT PUMP TO BRACKET
70
N913004006002
NUT , Replaced By: N913004006001
