Mercedes N000934010010 -

LF 508 D/LF 608 D 310.350

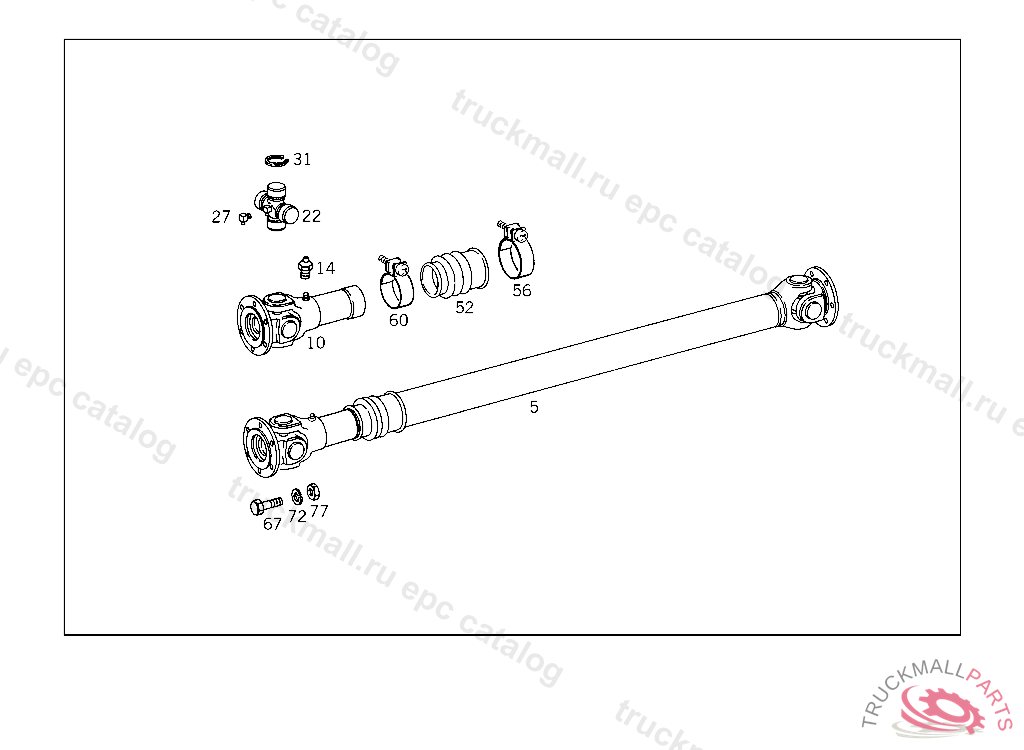

41 PROPELLER SHAFT - 001 PROPELLER SHAFT

Поз.
Артикул
Описание
5
A3144100502
PROPELLER SHAFT FROM INTERMED.SHAFT BEARING TO REAR AXLE, 5.6 T FROM CHASSIS 013362 5.99 T FROM CHASSIS 014983 ALSO INSTALLED ON 013464-014767
10
A3234100108
UNIVERSAL JOINT YOKE
14
N071412008102
GREASE NIPPLE
14
N071412008101
GREASE NIPPLE , Replaced By: N071412008102
22
A3854100231
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
27
N071412008302
GREASE NIPPLE
31
A3129941535
SNAP RING2.700 MM
31
A3129941435
SNAP RING2.650 MM
31
A3129941635
SNAP RING2.550 MM
31
A3129941135
SNAP RING2.500 MM
31
A3129941335
SNAP RING2.600 MM
31
A3129941735
SNAP RING2.750 MM
52
A3144100080
BOOT
56
N916002078100
CLAMP , WITH BOOT
60
N916002070101
CLAMP
67
A3219901501
SCREW , Replaced By: A3539900001
67
A3539900001
HEX. HEAD SCREW. SCREW PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE, LOCK WASHER MUST NOT BE INSTALLED
72
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
77
N000934010010
NUT FROM PROPELLER SHAFT TO FRONT AXLE
