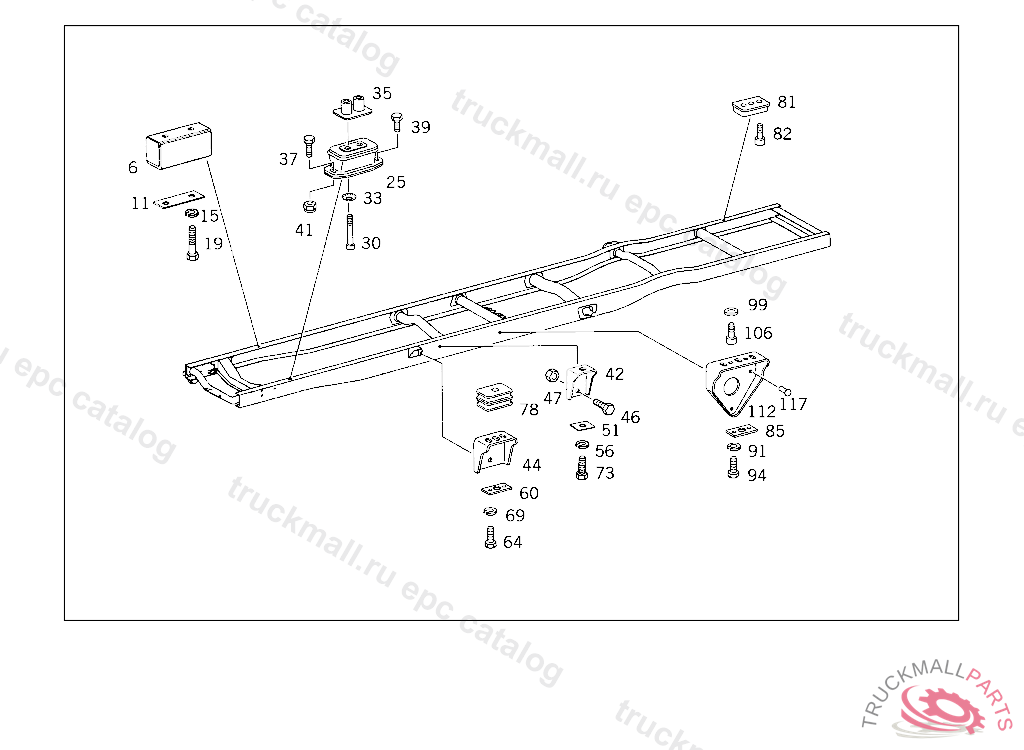

Поз.
Артикул
Описание
6
CONSOLE CAB SUSPENSION
6
CONSOLE CAB SUSPENSION
11
SHIM RIGHT REAR
15
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
19
SCREW BELT TIGHTENER TO CYLINDER CRANKCASE TO 9062001470,1770
19
SCREW , Replaced By: A0069908901
25
BUFFER FRONT
30
SCREW RUBBER MOUNTING TO BODY
33
SERRATED WASHER RUBBER MOUNTING TO BODY
35
SHIM
37
SCREW REAR EXHAUST PIPE TO MUFFLER
39
SCREW BRACKET TO SIDE MEMBER
39
SCREW , Replaced By: N304017010002
41
NUT , Replaced By: N910113010000
41
NUT STRAP TO BRACKET
42
CONSOLE BODY MOUNTING
44
CONSOLE BODY MOUNTING
46
SCREW BRACKET TO SIDE MEMBER
47
NUT STRAP TO BRACKET
47
NUT , Replaced By: N910113010000
51
PLATE RUBBER MOUNTING TO SUPPORT
56
LOCK WASHER FITTING TO BRACKET
60
SHIM AT FRAME
64
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
69
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
73
HEXAGON HEAD BOLT , Replaced By: A0029902704
73
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
73
SCREW , Replaced By: N308676012012
73
SCREW , Replaced By: N308676012013
78
BUFFER REAR
81
SHIM RUBBER MOUNTING TO SUPPORT
82
SCREW PIPE TO CHARGING AIR INTERCOOLER
82
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
85
SHIM AT FRAME
91
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
94
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
94
SCREW , Replaced By: N304017010028
99
LOCK WASHER SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART
106
SCREW AIR DEHYDRATOR TO BRACKET M12X1.5X25
112
CONSOLE CONSOLE TO SIDE MEMBER
117
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
999
SCREW RUBBER MOUNTING TO BODY
999
CONSOLE , Replaced By: A3093101563
999
SHIM RUBBER MOUNTING TO BODY
999
CONSOLE , Replaced By: A6883117063
999
SHIM RUBBER MOUNTING TO FRAME
999
LOCK WASHER AIR CLEANER TO BRACKET
999
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
