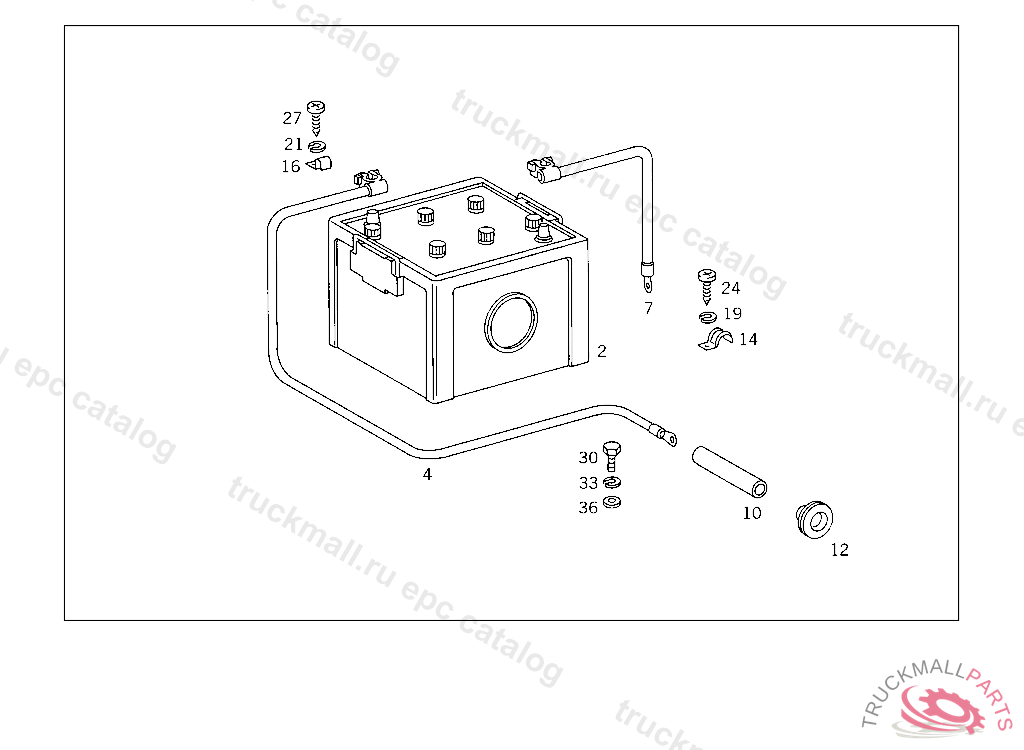

Поз.
Артикул
Описание
2
BATTERY , Replaced By: A0015418201
2
BATTERY12V 125 AH
4
ELECTRIC CABLE , Replaced By: A6735460013
4
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
7
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
7
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
7
ELECTRIC CABLE , Replaced By: A6735460013
7
ELECTRIC CABLE , Replaced By: A6735460011
10
HOSE BATTERY CABLE 75 MM
12
GROMMET
12
GROMMET
14
CLAMP MAIN CABLE HARNESS TO LEFT SIDE PART
16
CLAMP FUEL LINE TO BRACKET
16
CLAMP , Replaced By: A1109950401
16
CLAMP , Replaced By: A3129952420
16
CLAMP , Replaced By: A3049950220
19
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
21
LOCK WASHER
24
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
27
SHEET METAL SCREW BRACKET TO CAB
27
SHEET METAL SCREW COVER PLATE TO COVER PLATE
30
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
33
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
36
WASHER BRACKET TO COVERING
36
WASHER , Replaced By: N009021010209
999
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
999
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
999
CABLE SHOE BATTERY CABLE 12-70 MM
999
CABLE SHOE BATTERY CABLE 10-70 MM
999
NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013200
999
NEG. CABLE , Replaced By: A3605401431
999
NEG. CABLE FROM BATTERY TO CAB REAR CROSS MEMBER
999
POSITIVE CABLE. POS.CABLE , Replaced By: N922002070000, +001N046236010007, +001N072332013100
999
POSITIVE CABLE , Replaced By: N072551050880, +002N046234010008
999
POSITIVE CABLE , Replaced By: N072551050880, +001N046234010008, +001N072332011100
999
POSITIVE CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
999
POSITIVE CABLE
999
NEG. CABLE
999
BATTERY , Replaced By: A0025414301
