Поз.
Артикул
Описание

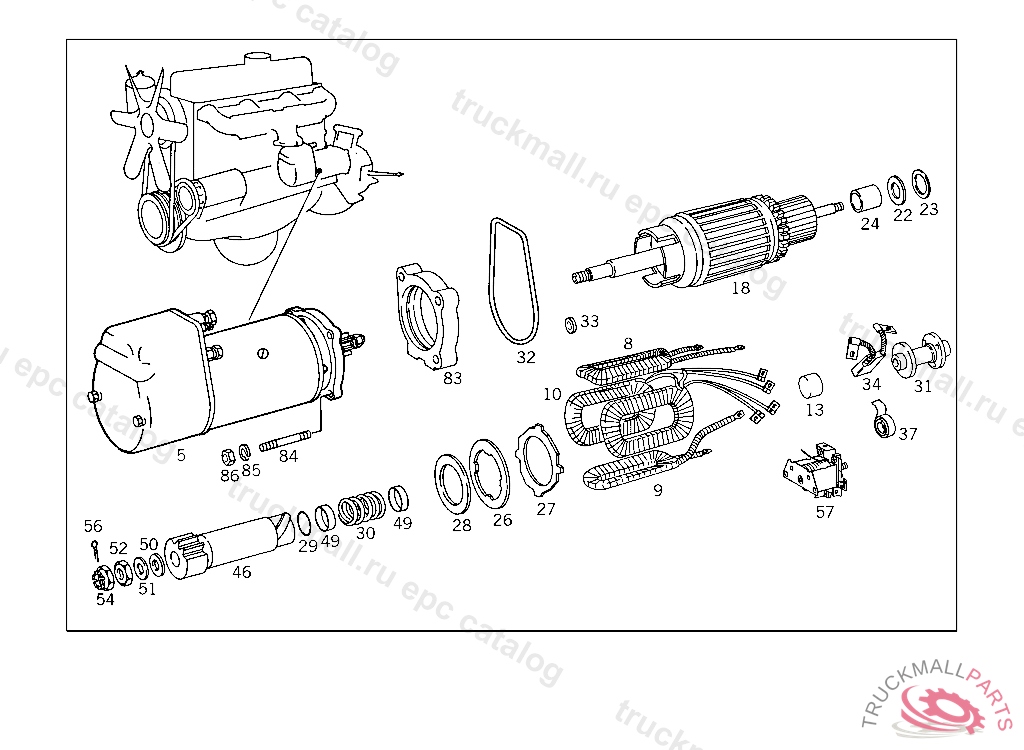

5
STARTING MOTOR , Replaced By: A3431517101
8
EXCITER COIL
9
EXCITER COIL2 TO 000 151 33 01
10
EXCITER COILTO 000 151 33 01
13
BUSHINGTO 001 151 41 01,001 151 36 01,
18
ARMATURETO 000 151 33 01
22
SEAL RINGTO 000 151 33 01
23
SEAL RINGTO 000 151 33 01,001 151 41 01
24
BUSHINGTO 001 151 36 01,001 151 38 01
26
DISC INSIDE TOOTHING TO 001 151 36 01,001 151 38 01,
27
DISC OUTSIDE TOOTHING TO 000 151 33 01,001 151 41 01
28
DISCTO 000 151 33 01,001 151 41 01,
29
SEAL RINGTO 001 151 36 01,001 151 38 01
30
SPRINGTO 000 151 33 01,001 151 41 01,
31
BEARINGTO 000 151 33 01, 001 151 41 01,
32
SEAL RINGTO 000 151 33 01, 001 151 41 01,
33
WASHERTO 001 151 41 01,001 151 33 01,
34
CARBON BRUSH SETTO 000 151 33 01, 001 151 38 01
37
SPRINGTO 001 151 38 01
37
SPRING , Replaced By: A0019936201
46
PINIONTO 001 151 38 01, 000 151 33 01
49
BUSHINGTO 001 151 36 01,001 151 38 01,
50
SPACER WASHERTO 001 151 36 01,001 151 38 01,
51
SPACER WASHERTO 000 151 33 01,001 151 41 01,
52
NUTTO 000 151 33 01,001 151 41 01,
54
NUT
56
LOCKTO 000 151 33 01,001 151 41 01,
57
SOLENOID SWITCHTO 000 151 33 01
83
INTERMEDIATE PIECE , Replaced By: A3141510412
83
INTERMEDIATE PIECE STARTING MOTOR
84
STUD BOLT
85
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
86
NUT , Replaced By: N304032010002
999
SCREW BALL GUIDE TO PISTON, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
999
NUT BALL PIVOT TO LEVER
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
TOOTHED WASHER
999
WASHER RADIATOR STRUT TO SUPPORT AND TO CAB
999
COUPLINGTO 001 151 36 01,001 151 38 01
999
GROMMET WITH. BUSHING
999
REGULATOR SWITCH SPECIAL REQUEST GENERATOR 300 WATT
999
REGULATOR AND CUT-OUT , Replaced By: A0001548506
999
REGULATOR AND CUT-OUT
999
REGULATOR AND CUT-OUT
999
3-ELEMENT VOLTAGE
999
KNURLED NUT. NUT
999
GLOW PLUG MAKE BOSCH OPTIONAL
999
GLOW PLUG MAKE BERU OPTIONAL
999
INCANDESCENT SPIRAL , ON OM 321 ENGINE
999
RESISTORBERU, ON SPECIAL REQUEST, SHIELDED GENERATOR, SHIELDED WINDSHIELD WIPER, AND SHIELDED BLINKER SENDER UNIT
999
BOOT , Replaced By: A0005463335
999
BOOT HEATER PLUGS
999
REGULATOR AND CUT-OUT , Replaced By: A0011544406
999
ALTERNATOR
999
PULLEY , Replaced By: A3211550515
999
PULLEY
999
SUPPORT , Replaced By: A3211550235
999
SCREW LINE TO HOSE
999
SCREW AIR CLEANER ELEMENT TO 015 094 74 02
999
SCREW , 032323
999
SCREW
999
WASHER , WITH BM 346.910,941,943,945 FOR L-VEHICLES UP TO ENGINE 016447 WITH BM 346.912,917,941,942,944,946,952 FOR LP-VEHICLES UP TO ENGINE 017592
999
WASHER , Replaced By: N000125013008
999
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
999
LOCK WASHER , ON SPECIAL REQUEST
999
LOCK WASHER CLAMP TO BRACKET
999
SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
999
NUT POWER CYLINDER
999
SCREW ,A 006845
999
SCREW
