Mercedes N304017006018 - Болт

LPS 608,709 314.063

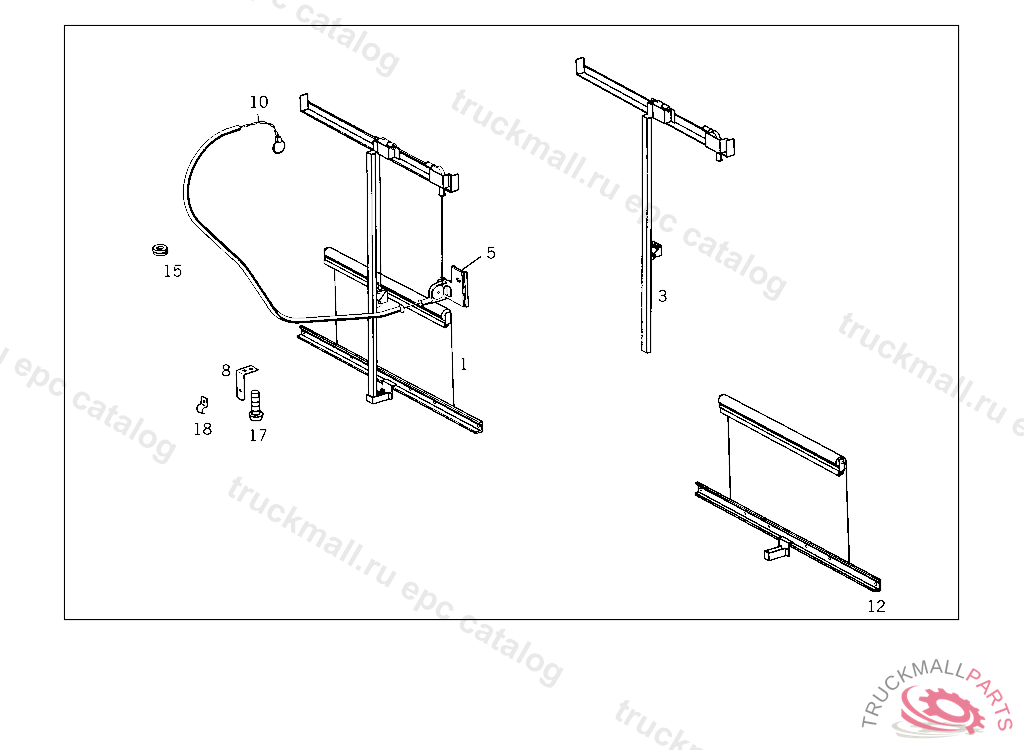

50 RADIATOR - 001 RADIATOR SHUTTER,ROLL-TYPE

Поз.
Артикул
Описание
1
A3145000018
RADIATOR COVERING
3
A0005052521
GUIDE
5
A0005050025
BRACKET
8
A3145051340
BRACKET
10
A0005050210
WIRE CABLE
12
A0005054601
RADIATOR SHUTTER
15
A0009972881
GROMMET ,D 314239
17
N007971004205
SHEET METAL SCREW GUIDE TO CAB SUPPORT
18
A1539950220
BEFESTIGUNGSSCHELLE. CLAMP LINES TO ENGINE
999
N000084005130
SCREW
999
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
N000127005204
LOCK WASHER
999
N000933005058
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
N000933006103
SCREW , Replaced By: N304017006018
999
N000934006007
NUT BALL PIVOT TO LEVER
999
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
N304032005002
NUT , Replaced By: N304032005005
999
N304032005005
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
N912004005103
LOCK WASHER BRACKET TO STEERING COLUMN END
999
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
