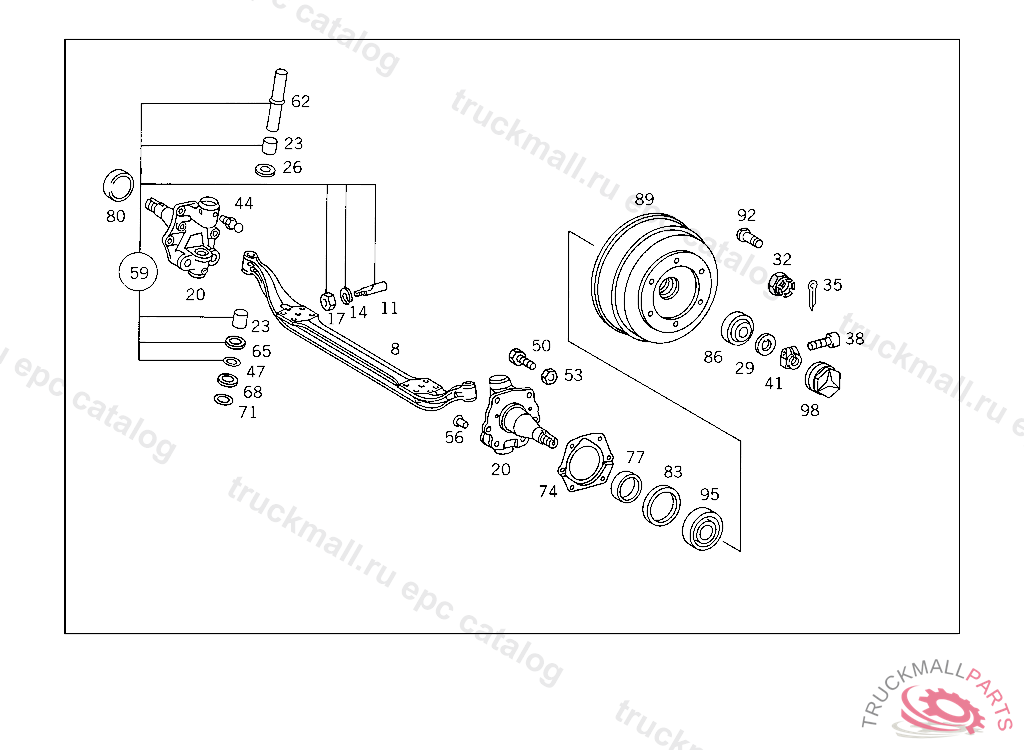

Поз.
Артикул
Описание
8
FRONT AXLE BEAM ,6951998 000001
8
FRONT AXLE BEAM , Replaced By: A3163310201
8
FRONT AXLE BEAM ,695198
11
BOLT
14
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
NUT
20
STEERING KNUCKLE ,6951998 000001
20
STEERING KNUCKLE , Replaced By: A3163300120
20
STEERING KNUCKLE
23
BUSHING STEERING KNUCKLE,6951998 000001
23
BUSHING
26
SEAL RING STEERING KNUCKLE,6951998 000001
26
SEAL RING STEERING KNUCKLE,6951998 000001
29
THRUST WASHER INTERMEDIATE LEVER TO STEERING SUPPORT
32
NUT CYLINDER TO BEARING BRACKET AND PITMAN ARM M24X1.5
35
COTTER PIN FRONT WHEEL HUB TO STEERING KNUCKLE,695198
38
SCREW. CAP BOLT COVER TO CASE M8X25
38
SCREW , Replaced By: N000912008202
41
NUT
41
NUT , Replaced By: A6753300088
44
GREASE NIPPLE PROTECTIVE TUBE
47
EXPANSION PLUG
50
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
53
NUT STRAP TO SUPPORT
56
PLUG TO PLUG HYDRAULIC LINE
59
KING PIN PARTS KIT,STANDARD 30 MM,6951998 000001
59
KING PIN STANDARD 30 MM
62
KINGPIN STANDARD SIZE I,6951998 000001
62
KINGPIN STANDARD SIZE I 30.30 MM
65
ROLLER BEARING STEERING KNUCKLE,6951998 000001
65
ROLLER BEARING STEERING KNUCKLE,6951998 000001
65
TAPERED ROLLER BEARING STEERING KNUCKLE,6951998 000001
65
ROLLER BEARING
68
THRUST WASHER STEERING KNUCKLE,695198
71
SPACER WASHER2.10 MM
71
SPACER WASHER , Replaced By: A3143320452
71
SPACER WASHER1.70 MM
71
SPACER WASHER1.60 MM
71
SPACER WASHER1.50 MM
71
SPACER WASHER1.40 MM
71
SPACER WASHER1.30 MM
71
SPACER WASHER1.20 MM
71
SPACER WASHER1.10 MM
71
SPACER WASHER1.00 MM
71
SPACER WASHER0.90 MM
74
OIL COLLECTOR ,6951998 000001
74
OIL COLLECTOR ,695198
77
RING
80
RING
83
SEAL HOLDER , 791606
83
SEAL RING
83
SEAL RING
86
TAPERED ROLLER BEARING OUTSIDE
86
TAPERED ROLLER BEARING OUTSIDE
89
DRUM HUB ,6951998 000001
92
WHEEL MOUNTING BOLT
95
TAPERED ROLLER BEARING INSIDE,6951998 000001
95
TAPERED ROLLER BEARING , Replaced By: A0069815605
95
TAPERED ROLLER BEARING REAR FLANGE
95
TAPERED ROLLER BEARING INSIDE,6951998 000001
95
TAPERED ROLLER BEARING INSIDE,695198
95
TAPERED ROLLER BEARING INSIDE,695198
98
HUB CAP STEERING INTERMEDIATE BRACKET
999
BOOT , Replaced By: A0004631396
999
JOINT , Replaced By: A0003308535
999
JOINT , Replaced By: A0003308635
999
SEAL RING , Replaced By: A0089977546
999
BUSHING , Replaced By: A3533320048
999
FRONT AXLE BEAM , Replaced By: A3143310501
999
WHEEL MOUNTING BOLT , Replaced By: A3144020071
999
PART NAME MISSING , Replaced By: A3163320048
999
TIE ROD , Replaced By: A3163300603
999
STEERING ARM , Replaced By: A3163380305
999
STEERING ARM , Replaced By: A3163380306
999
STEERING ARM , Replaced By: A3163380707
999
STEERING ARM , Replaced By: A3163380708
999
REPAIR KIT , Replaced By: A3163300119
999
STEERING KNUCKLE , Replaced By: A3533320001
