Главная
›
Mercedes
›
ENGINE
›
OM 314 MBSA
›
314.920
›

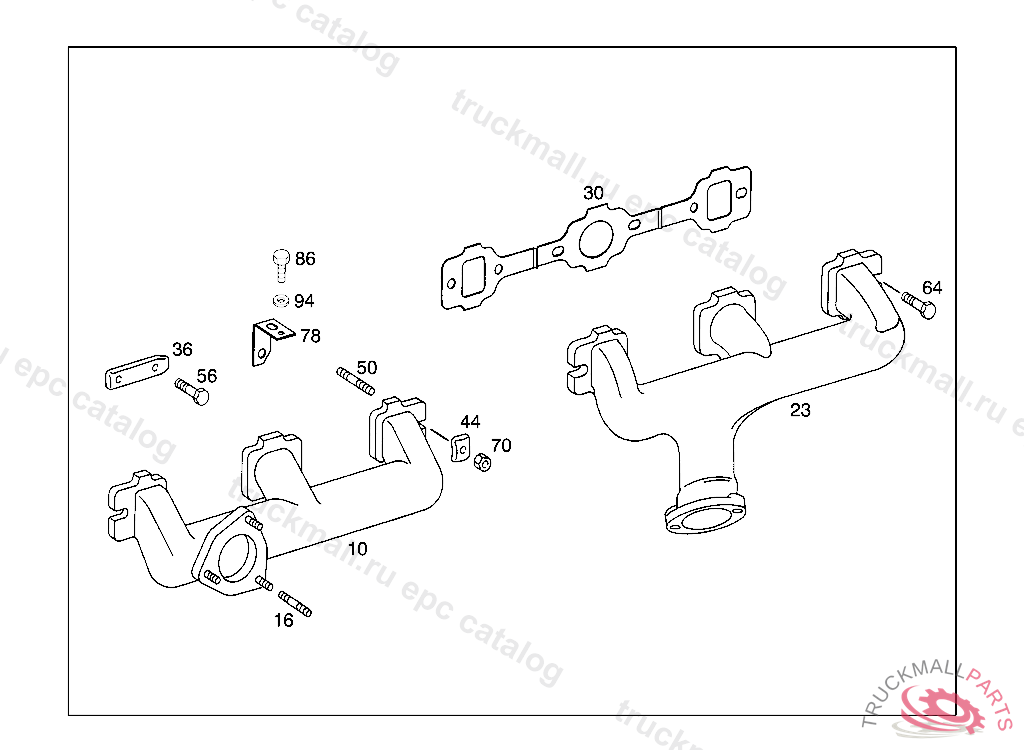

14 INTAKE AND EXHAUST MANIFOLDS
›
001 INTAKE AND EXHAUST MANIFOLDS
Mercedes N000939010009 -
OM 314 MBSA 314.920
14 INTAKE AND EXHAUST MANIFOLDS - 001 INTAKE AND EXHAUST MANIFOLDS
Поз.
Артикул
Описание
10
A0141400009
EXHAUST MANIFOLD LATERAL
16
A0009906005
STUD CONNECTING PIPE TO EXHAUST MANIFOLD
16
N000939010009
STUD BOLT ADDITIONAL GEARBOX TO TRANSMISSION CASE M 10X30
30
A3141420380
GASKET EXHAUST MANIFOLD
36
A3121420112
CLAMPING PIECE LATERAL
44
A3121420212
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD,014208
50
N000939010029
STUD BOLTM 10X45
56
N000931010355
SCREW , Replaced By: N304017010035
70
N000934010014
NUT BRACKET TO SUPPORT AND TO END PIECE
78
A3044290940
BRACKET FLEXIBLE SHAFT TO TRANSMISSION
86
N000931010094
SCREW CROSS MEMBER TO FRAME
94
N007349010007
WASHER STRUT TO CROSS MEMBER
999
A3141402909
EXHAUST MANIFOLD WITH MUFFLER
