Mercedes N000125010532 - Диск

OM 314 L III MBSA 314.922

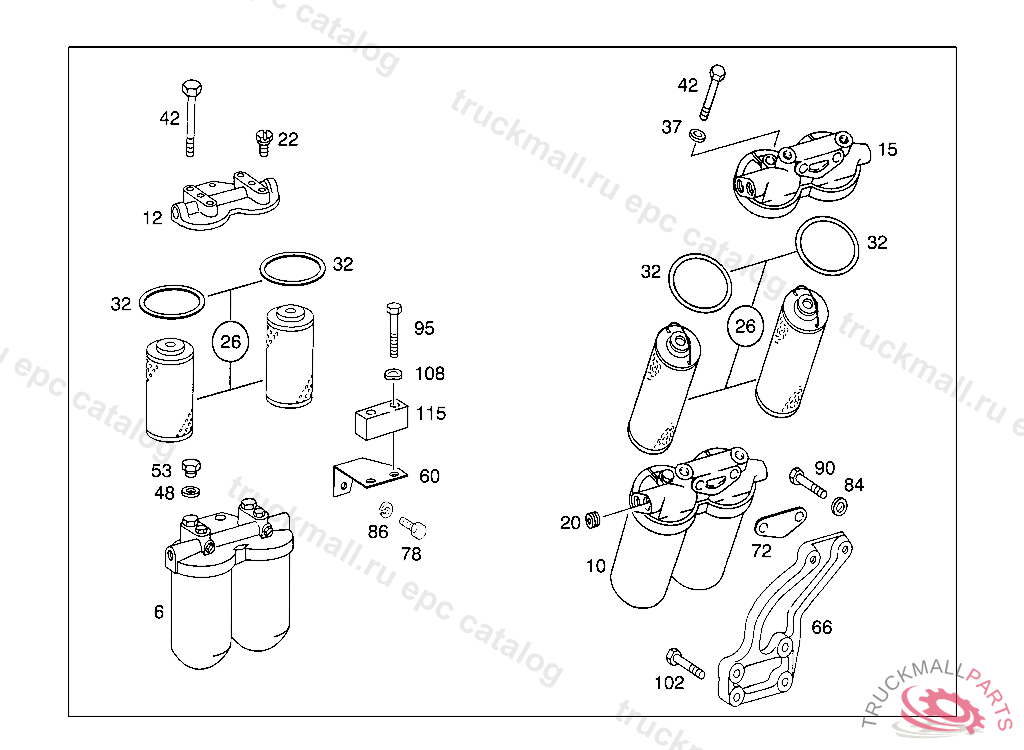

09 FUEL PUMP - 001 FUEL FILTER

Поз.
Артикул
Описание
10
A0010921201
FILTER , Replaced By: A0010927001
10
A0010926701
FILTER FUEL FILTER "HENGST",RB031294
10
A0010920201
FILTER , Replaced By: A0010926701
15
A0000922708
FILTER HEAD"HENGST"
20
N000906014000
SCREW PLUG FUEL TANK BREATHING M 14X1.5
26
A3524700092
FILTER ELEMENT ,D 031294
26
A0000901151
FILTER ELEMENT REPAIR KIT
32
A0004773580
SEAL RING ,D 031246
37
N007603008109
SEAL RING SCREW PLUG
42
N000931008326
SCREW , Replaced By: N304014008009
42
N000931008448
SCREW FILTER BOWL TO FILTER HEAD M 8X90,841477 ONLY FOR USE WITH BOSCH DOUBLE FILTER
66
A3520921540
BRACKET FUEL FILTER
72
A3522230484
SHIM
84
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
90
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
102
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
