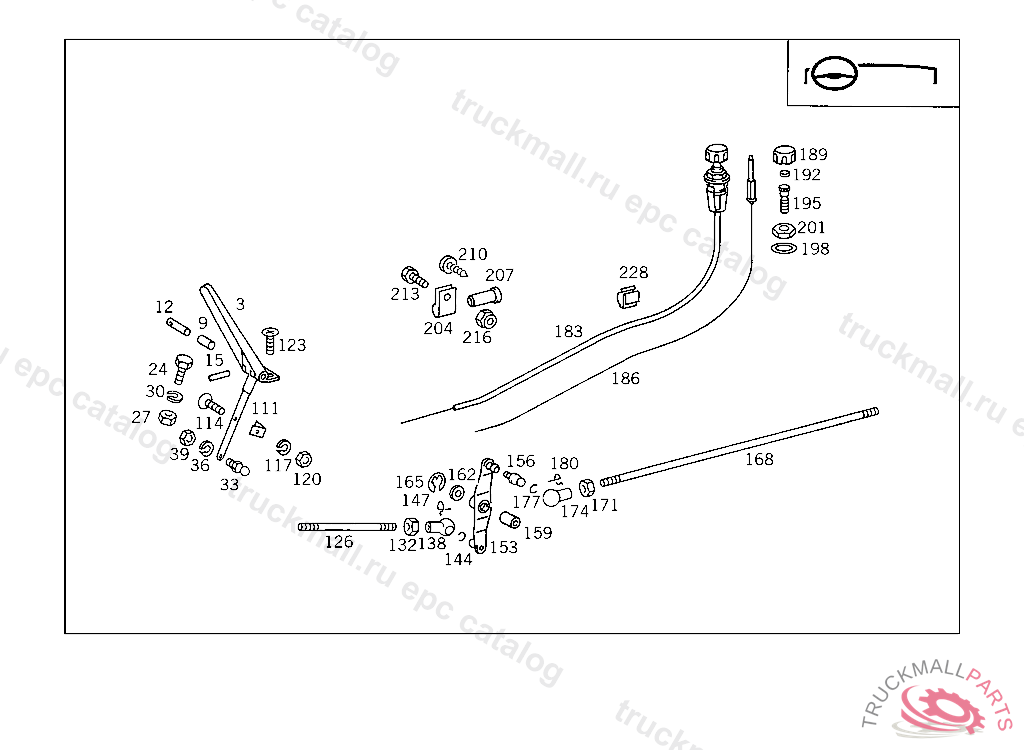

Поз.
Артикул
Описание
3
ACCELERATOR PEDAL ,4 282707
3
9
BUSHING
12
CYLINDRICAL PIN ACCELERATOR PEDAL BEARING
15
GROOVED PIN ,4 282707
24
SCREW , Replaced By: N304017008018
24
SCREW SUPPORT TO FENDER
27
NUT
30
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
33
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
36
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
39
NUT BALL PIVOT TO LEVER
111
STOP ACCELERATOR PEDAL,4 282707
114
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
117
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
120
NUT BALL PIVOT TO LEVER
123
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
126
PULL ROD SENSOR TO AXLE M 6X170X30, TO BE ADAPTED DURING ASSEMBLY
126
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
132
NUT BALL PIVOT TO LEVER
138
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
144
SNAP RING SPRING-LOADED PUSH ROD
147
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
153
LEVER CONTROL,LEFT,4 282707
156
BALL PIVOT , Replaced By: A3129910120
156
BALL PIVOT LEVER
159
BUSHING
162
FITTED WASHER LEVER TO BRACKET
165
LOCK PLATE
168
PULL ROD BETWEEN LEFT AND RIGHT CONTROL LEVERS
171
NUT BALL PIVOT TO LEVER
174
BALL SOCKET PULL ROD TO LEVER
177
SNAP RING SPRING-LOADED PUSH ROD
180
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
183
KNOB WITH SPINDLE,WIRE CABLE,AND END PIECE,5 051625
183
KNOB WITH SPINDLE,WIRE CABLE,AND END PIECE
186
WIRE CABLE , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
186
WIRE CABLE ,992525, Replaced By: A3523000230
186
WIRE CABLE , Replaced By: A3523000230
189
KNOBTO 323 300 00 07
189
KNOB , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020201, +001A3523020308
189
KNOB , Replaced By: A3523020201
189
KNOB , 10/50 528499 20/60 528275
189
KNOB , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
192
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
195
GUIDE , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
195
GUIDE , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020308, +001A3523020201
195
GUIDE , Replaced By: A3523020308
198
SPACER WASHER ,303365 10/50 528498 20/60 528274
198
WASHER , ON SPECIAL REQUEST
198
WASHER MANUAL CONTROL,4 155516
201
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
201
NUT , Replaced By: A3129901151
204
CLAMP , Replaced By: A3609950301
204
CLAMP LINE MOUNTING
207
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
207
GROMMET , Replaced By: A3453027091
210
SHEET METAL SCREW , Replaced By: N000000000459
210
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
213
SCREW COVER PLATE TO BRACKET
216
NUT
216
NUT PUMP TO BRACKET
216
NUT , Replaced By: N913004006001
228
CLIP CABLE HARNESS TO ROOF RAIL
999
RING WIRE CABLE TO LEVER
999
END PIECE , Replaced By: A1233000086
999
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000933006229, +001A3763020468
999
CLAMP WIRE CABLE TO FIRE WALL
999
999
999
BRACKET DOUBLE LEVER
999
999
KNOB , Replaced By: A3183000007
999
999
999
999
CLAMP , Replaced By: A3609950301
999
TUBE
999
999
KNOB , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020201, +001A3523020308
999
KNOB , Replaced By: A3523020201
999
WIRE CABLE , Replaced By: A3523000230
999
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
999
PULL ROD , Replaced By: N900331006619
