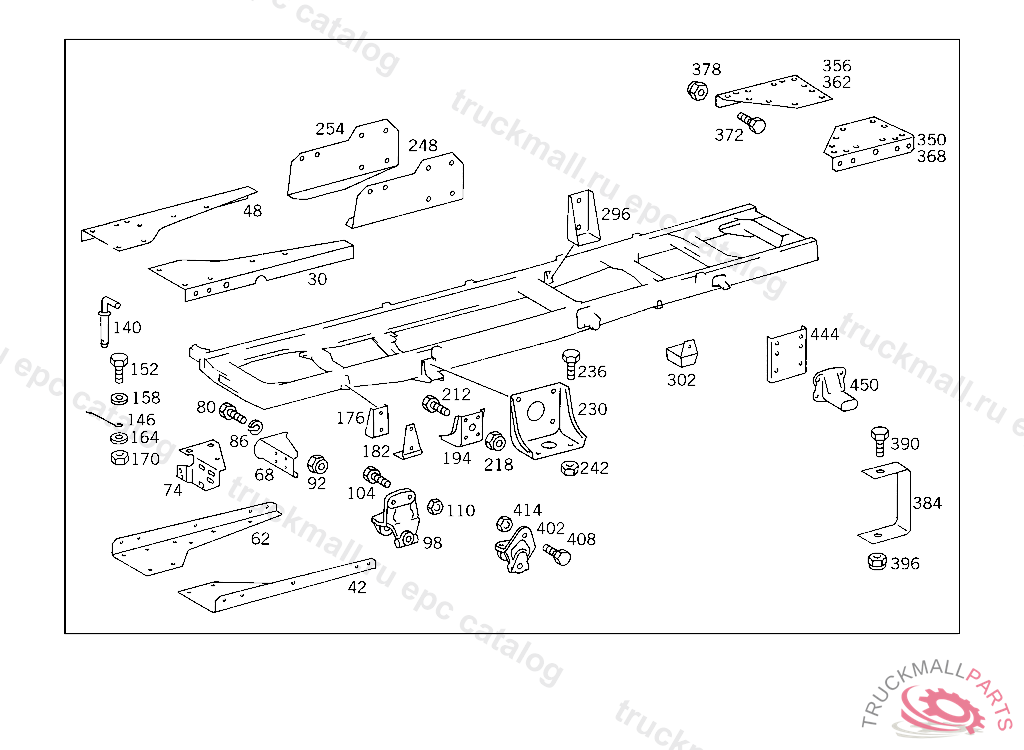

Поз.
Артикул
Описание
30
GUSSET PLATE LEFT TOP,695199-4 2827078 000001
42
GUSSET PLATE LEFT BOTTOM,695199-4 2827078 000001
48
GUSSET PLATE RIGHT TOP,695199-4 2827078 000001
62
GUSSET PLATE RIGHT BOTTOM,695199-4 2827078 000001
68
CONSOLE BUMPER AT TORSION BAR,4 282707
74
BRACKET BUMPER,RIGHT,4 373947
74
BRACKET BUMPER,LEFT,4 2827084 383114 ALSO INSTALLED ON 4 366280,4 366695,4 367047.
74
BRACKET BUMPER AT TORSION BAR,4 282708-4 383113 EXCEPT FOR 4 366280,4 366695,4 367047.
80
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
80
SCREW END PIECE TO EXHAUST PIPE M 10X25
86
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
92
NUT STRAP TO BRACKET
92
NUT , Replaced By: N910113010000
92
NUT BRACKET TO SUPPORT AND TO END PIECE
98
FRONT SPRING BRACKET FRONT,695199-4 2827078 000001
104
HEXAGON HEAD BOLT , Replaced By: A0029902704
104
SCREW , Replaced By: N308676012013
104
SCREW STRUT TO FRAME M 12X62
104
SCREW , Replaced By: N308676012018
104
SCREW , Replaced By: N000961012184
110
NUT STRAP TO SUPPORT
140
COUPLING PIN FRONT
140
COUPLING PIN FRONT
140
COUPLING PIN , Replaced By: A3143150406
146
LOCK COUPLING PIN
152
SCREW PIPE CLAMP
152
SCREW , Replaced By: N304017008021
158
WASHER EXHAUST MUFFLER TO STRAP
158
WASHER , Replaced By: N000125008443
170
NUT
176
REINFORCEMENT AT SIDE MEMBER
182
ANGLE FRAME TRUSSING,6951998 000001
194
BRACKET CAB MOUNTING,REAR
212
SCREW END PIECE TO EXHAUST PIPE M 10X25
212
SCREW REAR EXHAUST PIPE TO MUFFLER
218
NUT STRAP TO BRACKET
218
NUT , Replaced By: N910113010000
230
BRACKET CAB MOUNTING,REAR
236
SCREW END PIECE TO EXHAUST PIPE M 10X25
242
NUT BRACKET TO SUPPORT AND TO END PIECE
248
REINFORCEMENT BRACKET AND REINFORCEMENT TO SIDE MEMBER
254
REINFORCEMENT RIGHT,6951998 000001
296
REINFORCEMENT AT SIDE MEMBER
302
RUBBER SPRING REAR SPRING
350
GUSSET PLATE LEFT TOP
356
GUSSET PLATE RIGHT TOP
372
SCREW END PIECE TO EXHAUST PIPE M 10X25
378
NUT STRAP TO BRACKET
378
NUT , Replaced By: N910113010000
402
FRONT SPRING BRACKET REAR,695199-4 2827078 000001
408
SCREW BRACKET TO FRAME M 12X35
408
SCREW TORSION BAR TO BEARING BRACKET M 12X50,5 903514
408
SCREW ,5 903514, Replaced By: N000961012205
414
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
414
NUT , Replaced By: N308673012002
444
STIFFENING HELPER SPRING BRACKET TO SIDE MEMBER
450
HELPER SPRING BRACKET HELPER SPRING
999
BUSHINGTO 682 317 71 03
999
RUBBER BUFFER , Replaced By: A0003234385
999
RIVET , Replaced By: N910005010002
999
RIVET , Replaced By: N910005010003
999
SCREW FRAME REAR PART TO FRAME FRONT PART, FOR BEVERAGE TRANSPORT VEHICLES
999
RIVET , Replaced By: N910005010027
999
NUT FRAME MOUNTING, ONLY APPLICABLE TO BEVERAGE VEHICLES
999
RETAINER CAB MOUNTING,FRONT
999
RUBBER BUFFER, BOTTOM. RUBBER BUFFER CAB MOUNTING,FRONT
999
RUBBER BUFFER CAB MOUNTING,FRONT
999
SHAFT ,4 282707
999
CROSS MEMBER REAR SHOCK ABSORBERS
999
CROSS MEMBER , Replaced By: A3183100140
999
CROSS MEMBER , Replaced By: A3143120935
999
SHIM , Replaced By: A6743120184
999
SPACER WASHER S-BUMP BUFFER TO FRAME
999
HELPER SPRING BRACKET , Replaced By: A3143250117
999
CONSOLE , Replaced By: A3143100963
999
FRAME , Replaced By: A3163101801
999
PIN SHOCK ABSORBER TO CAB
999
WASHER , Replaced By: A6739901040
999
CROSS MEMBER , Replaced By: A3183100137
999
SPACER TUBE CAB MOUNTING,FRONT
999
CONSOLE , Replaced By: A3183201978
999
BRACKET
999
HELPER SPRING BRACKET , Replaced By: A3143250117
