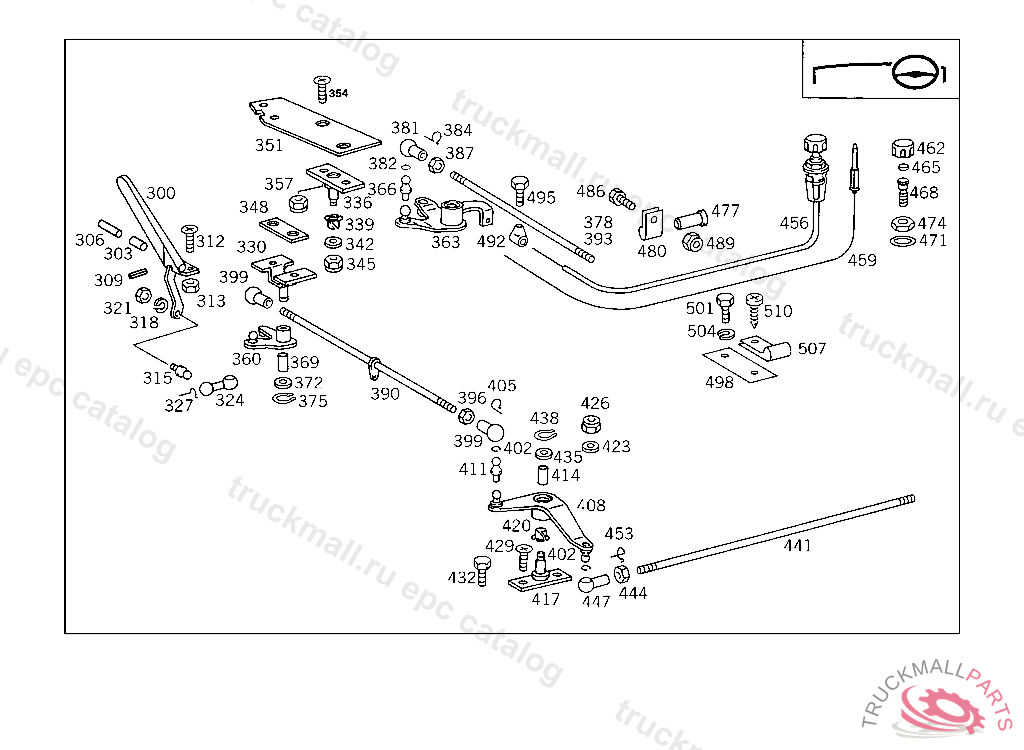

Поз.
Артикул
Описание
300
ACCELERATOR PEDAL
303
BUSHING
306
CYLINDRICAL PIN ACCELERATOR PEDAL BEARING
309
GROOVED PIN ,4 282707
312
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
313
NUT PUMP TO BRACKET
313
NUT , Replaced By: N913004006001
315
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
318
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
321
NUT BALL PIVOT TO LEVER
324
BALL SOCKET CONTROL LEVER TO ACCELERATOR PEDAL,4 431948
327
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
330
BRACKET RIGHT CONTROL LEVER,4 431948
336
PIN LEFT CONTROL LEVER,4 431949
339
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
342
WASHER EXHAUST MUFFLER TO STRAP
342
WASHER , Replaced By: N000125008443
345
NUT STRAP TO BRACKET
348
REINFORCEMENT BRACKET TO CAB,864701
351
REINFORCEMENT INTERMEDIATE BEARING TO CAB FLOOR,4 431948
351
REINFORCEMENT BRACKET TO CAB,4 431949
354
SCREW INTERMEDIATE BEARING TO CAB FLOOR
357
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
357
NUT , Replaced By: N913004008001
360
363
LEVER CONTROL,RIGHT,4 431949
363
LEVER CONTROL,RIGHT,4 431948
366
BALL PIVOT LEVER
366
BALL PIVOT , Replaced By: A3129910120
369
BUSHING
372
FITTED WASHER CLUTCH SLAVE CYLINDER TO RELEASE YOKE,4 667416
375
LOCK RINGTO 000 553 37 01,000 553 39 01,
378
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
381
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
382
SNAP RING SPRING-LOADED PUSH ROD
384
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
387
NUT BALL PIVOT TO LEVER
390
393
PULL ROD BETWEEN LEFT AND RIGHT CONTROL LEVERS
396
NUT BALL PIVOT TO LEVER
399
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
402
SNAP RING SPRING-LOADED PUSH ROD
405
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
408
408
411
BALL PIVOT LEVER
411
BALL PIVOT , Replaced By: A3129910120
414
BUSHING
417
PIN LEFT CONTROL LEVER,4 431948
417
PIN LEFT CONTROL LEVER,4 431949
420
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
423
WASHER EXHAUST MUFFLER TO STRAP
423
WASHER , Replaced By: N000125008443
426
NUT STRAP TO BRACKET
429
SCREW INTERMEDIATE BEARING TO CAB FLOOR
432
SCREW , Replaced By: N304017008016
432
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
435
FITTED WASHER LEVER TO BRACKET
438
LOCK RINGTO 000 553 37 01,000 553 39 01,
441
PULL ROD BETWEEN LEFT AND RIGHT CONTROL LEVERS
444
NUT BALL PIVOT TO LEVER
447
BALL SOCKET PULL ROD TO LEVER
453
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
456
KNOB WITH SPINDLE,WIRE CABLE,AND END PIECE
456
KNOB , Replaced By: A3183000007
456
459
WIRE CABLE , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
462
KNOB , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
465
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
468
GUIDE , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
468
GUIDE , Replaced By: A3523020308
468
GUIDE , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020308, +001A3523020201
471
WASHER MANUAL CONTROL,4 155516
471
WASHER , ON SPECIAL REQUEST
471
SPACER WASHER ,303365 10/50 528498 20/60 528274
474
NUT , Replaced By: A3129901151
474
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
477
GROMMET , Replaced By: A3453027091
477
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
480
CLAMP LINE MOUNTING
486
SCREW COVER PLATE TO BRACKET
489
NUT PUMP TO BRACKET
489
NUT , Replaced By: N913004006001
492
END PIECE WIRE CABLE
495
SCREW IN CASE OF SUBSEQUENT INSTALLATION
498
BRACKET WIRE CABLE,4 431948
501
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
501
SCREW , Replaced By: N304017008039
504
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
507
CLAMP LINE MOUNTING
510
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
510
SHEET METAL SCREW , Replaced By: N000000000459
999
PULL ROD , Replaced By: N900331006619
999
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
999
WIRE CABLE , Replaced By: A3523000230
999
KNOB , Replaced By: A3523020201
999
KNOB , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020201, +001A3523020308
999
999
TUBE
999
CLAMP , Replaced By: A3609950301
999
999
999
999
KNOB , Replaced By: A3183000007
999
999
BRACKET DOUBLE LEVER
999
999
999
CLAMP WIRE CABLE TO FIRE WALL
999
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000933006229, +001A3763020468
999
END PIECE , Replaced By: A1233000086
999
RING WIRE CABLE TO LEVER
