Поз.
Артикул
Описание
1

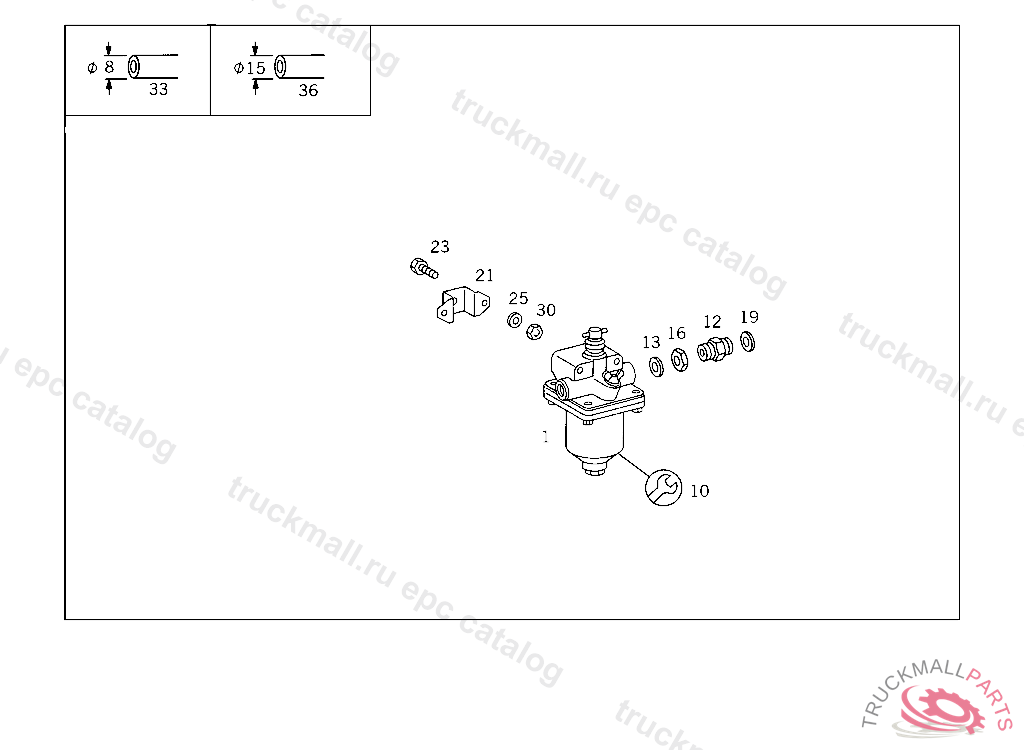

ANTI-FREEZE DEVICE
10
REPAIR KITTO 000 431 21 15,WEST 432 199 010 0
12
FITTING , Replaced By: A0019972372
12
FITTING SHUTTLE VALVE,CONNECTION: "20"
13
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
13
THRUST RING CHECK VALVE TO AIR RESERVOIR
16
NUT CHECK VALVE TO AIR RESERVOIR
19
SEAL RING LINE CONNECTION
21
BRACKET , 695198
23
SCREW , Replaced By: N304017008021
23
SCREW PIPE CLAMP
25
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
30
NUT
33
LINE , Replaced By: A0005516456
33
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
36
LINE , Replaced By: A0005516256
36
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
36
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW , Replaced By: N000933008134
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
SEAL RINGTO 001 431 37 05,4 375193
999
SCREW PLUG
999
WICK , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
VALVE DRAIN, Replaced By: A0004322107
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322407
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
SCREW PLUG WITH DIPSTICK
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
