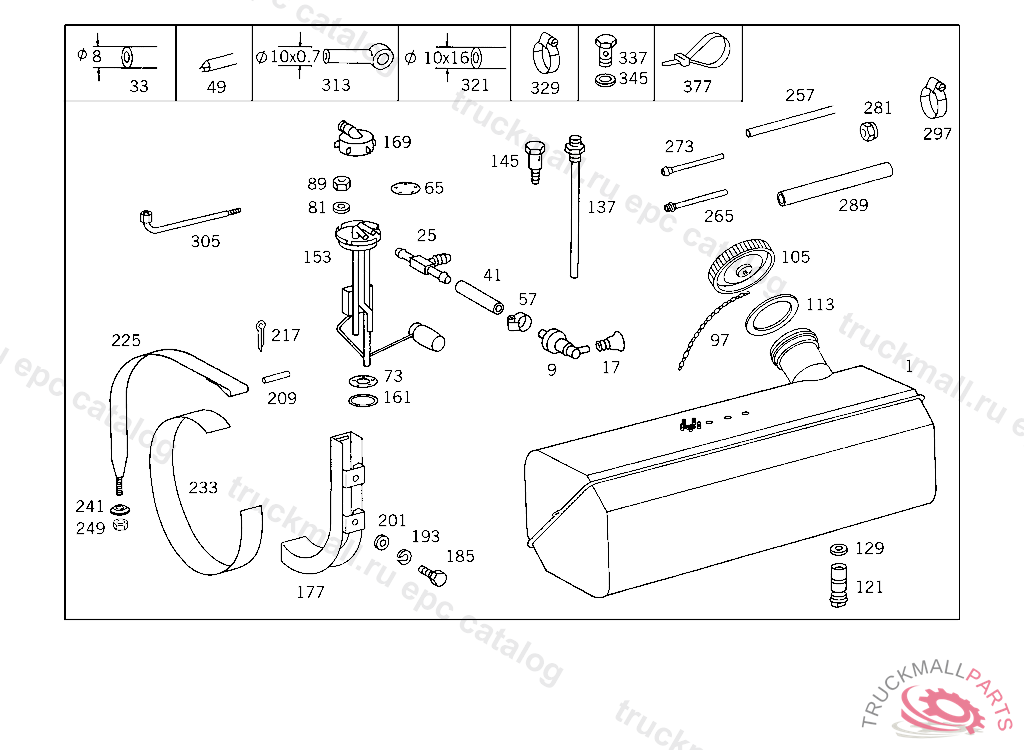

Поз.
Артикул
Описание
1
FUEL TANK105L
1
FUEL TANK , Replaced By: A6734701001
1
FUEL TANK105 L,5 218303
1
FUEL TANK135 L,4 493736
1
FUEL TANK , 726993, Replaced By: A3834701101, +001A0004710530, +001A0004710235, +001A0085427717, +002A3879900078, +001A0009908188, +001A0119970745, +001A0019975272, +001N007603014302, +001N007604014106, +001N915001006002
1
FUEL TANK105 L,5 218303
1
FUEL TANK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3834700701, +001A0004710530, +001A0004710235, +001A0085427617, +002A3879900078, +001A0009908188, +001A0119970745, +001A0019975272, +001N007603014302, +001N007604014106, +001N915001006002
1
FUEL TANK LESS SENDER UNIT 100 L
1
FUEL TANK , Replaced By: A3224703101
9
VALVE ,K 169122
9
VALVE ,K 169122
17
BOOT CHECK VALVE,K 169122
25
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
33
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
33
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
33
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
41
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
49
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
49
EDGE GUARD SECTION , Replaced By: A0029873572
57
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
65
COVER FUEL TANK
73
GASKET SENDER UNIT AND COVER TO FUEL TANK
81
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
89
NUT IN CASE OF SUBSEQUENT INSTALLATION
89
NUT , Replaced By: N304032005005
97
CHAIN FILLER CAP
105
FILLER CAP
105
FILLER CAP , Replaced By: A0004700305
105
FILLER CAP , Replaced By: A0004700305
105
FILLER CAP , Replaced By: A0004717930
113
SEAL RING
113
FILLER CAP , Replaced By: A0004700305
121
FUEL STRAINER FUEL TANK,K 169122
129
SEAL RING FUEL LINE TO FEED PUMP
137
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
137
RISING PIPE , Replaced By: A3609900263
137
RISING PIPE
145
HOLLOW SCREW RISING PIPE, ON MOTOR 352-358 UP TO IDENT NO. 4 292267,ON MOTOR 360 UP TO IDENT NO. 4 675310 008 997 54 82,446 MM LONG
153
SENDER UNIT FUEL GAUGE,4 316250
153
SENDER UNIT , Replaced By: A0085427617
153
SENDER UNIT FUEL GAUGE
153
SENDER UNIT FUEL GAUGE
153
SENDER UNIT FUEL GAUGE,5 218303
153
SENDER UNIT FUEL GAUGE SENDER UNIT TO FUEL TANK,4 495577
161
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
169
BOOT ELECTRIC CABLE CONNECTION TO GAUGE SENDER UNIT
177
SUPPORT FUEL TANK
177
SUPPORT FUEL TANK
185
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
185
SCREW , Replaced By: N308676012026
193
LOCK WASHER FITTING TO BRACKET
201
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
201
WASHER , Replaced By: N007349013005
209
PIN STRAP TO SUPPORT
217
COTTER PIN STRAP TO SUPPORT
225
STRAP FUEL TANK TO SUPPORT
225
STRAP FUEL TANK TO SUPPORT, UP TO IDENT NO. 734559 EXCEPT FOR 500001-599999
233
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
233
PAD , Replaced By: A3634750320
233
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
233
PAD , Replaced By: A3634750220
233
PAD FUEL TANK TO SUPPORT 60/51MM, ORDER BY THE METER
233
RUBBER STRIP FUEL TANK TO SUPPORT
241
WASHER STRAP TO SUPPORT
249
NUT STRAP TO SUPPORT
257
LINE , LP 608(314)FROM CHASSIS 602811-604949 L.H.D AND FROM CHASSIS 602811-605095 R.H.D.
257
LINE , LP 608(314)FROM CHASSIS 602811-604949 L.H.D AND FROM CHASSIS 602811-605095 R.H.D.
265
LINE FROM TANK TO SCREW CONNECTION, 741958
265
LINE , Replaced By: A3404702665, +001A3404701965, +NBN073379009100, +001N915001008000, +001N916002014100
273
LINE WITH SEAL CONE 3000 MM, 740810
281
UNION NUT FUEL HOSE
289
HOSE FUEL LINE, ORDER BY THE METER
297
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
297
CLAMP , Replaced By: N000000000665
305
LINE FUEL LINE, LP 608(314)FROM CHASSIS 602811-604949 L.H.D AND FROM CHASSIS 602811-605095 R.H.D.
313
LINE FUEL COMPENSATING
321
HOSE LEAK LINE
329
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
329
CLAMP , Replaced By: N916017011001
337
HOLLOW SCREW , Replaced By: N915036010100
345
SEAL RING FUEL LINE TO FEED PUMP
377
LOOM TIE LINE MOUNTING
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017006020
999
CLAMP LINE MOUNTING
999
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
999
BRACKET FUEL LINE
999
SENDER UNIT , Replaced By: A0075424117
