Поз.
Артикул
Описание

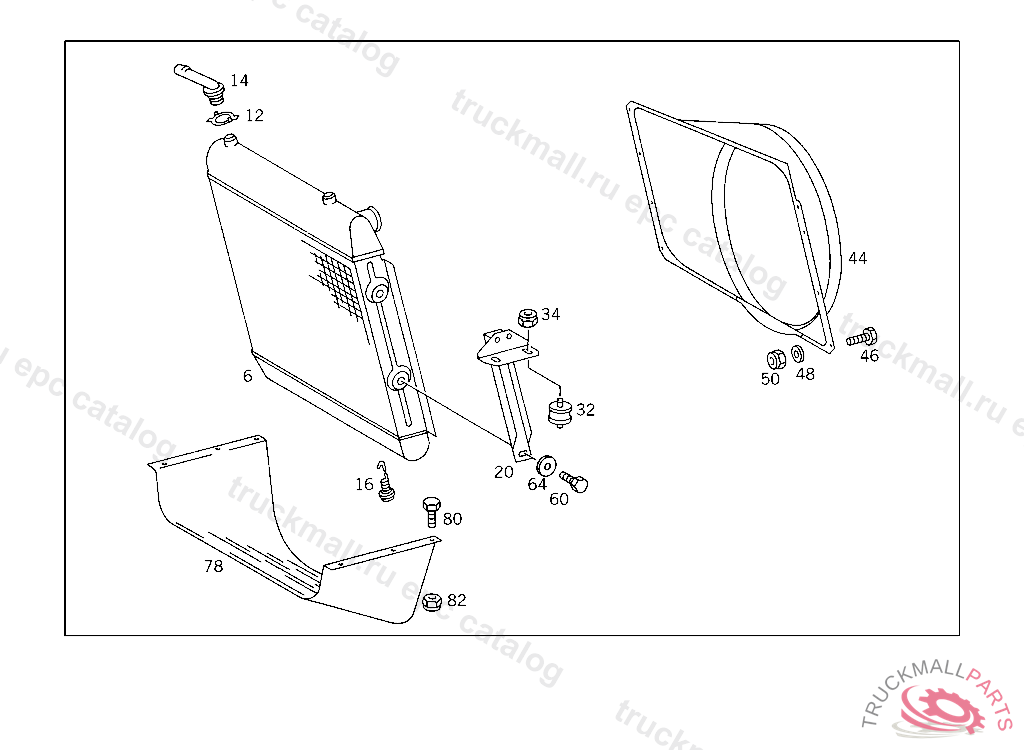

6
RADIATORBEHR,4 467136
12
LOCKTO 318 500 19 02
14
BREATHER PIPETO 318 500 19 02
16
SCREW WATER DRAIN
20
SUPPORT RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER,4 467136
20
SUPPORT RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER,4 467136
32
RUBBER BUFFER BRACKET TO SUPPORT
34
NUT STRAP TO BRACKET
34
NUT STRAP TO BRACKET
34
NUT , Replaced By: N910113010000
44
FAN SHROUD
46
SCREW LICENSE PLATE TO BRACKET
46
SCREW LICENSE PLATE TO BRACKET
46
SCREW , Replaced By: N304017006020
48
WASHER COMPRESSED AIR LINE TO BRACKET
48
WASHER , Replaced By: N009021006208
50
NUT PUMP TO BRACKET
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
60
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
60
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
60
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
60
SCREW , Replaced By: N304017010028
60
SCREW BRACKET TO FRAME SIDE MEMBER
64
WASHER BRACKET TO COVERING
64
WASHER , Replaced By: N009021010209
78
PROTECTIVE GRILL
80
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
80
SCREW BRACKET TO SIDE MEMBER
80
SCREW , Replaced By: N304017010002
82
NUT BRACKET TO SUPPORT AND TO END PIECE
82
NUT STRAP TO BRACKET
82
NUT , Replaced By: N910113010000
999
RUBBER BUFFER EXHAUST MUFFLER
999
BRACKET , Replaced By: A3184291540
999
BRACKET , Replaced By: A3185000331
999
FAN SHROUD RADIATOR
999
LINE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 375862, Replaced By: A3185011682
999
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 375862, Replaced By: A3185011982
999
FAN SHROUD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 467135, Replaced By: A3185051155
999
FAN SHROUD , Replaced By: A3185001155
999
LINE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 375862, Replaced By: A3185060360
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 375862, Replaced By: A3185011682
999
HOSE ,854136, Replaced By: A3185011282, +001A3185000572, +002N916017025000
999
HOSE , Replaced By: N073379006203
999
HOSE DE-AERATION,854136
999
HOSE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 467135, Replaced By: A3185011982
999
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3185060640
999
CLAMP LINE MOUNTING
999
TANK , Replaced By: A3815001649
999
SHIM , Replaced By: A3815010495
