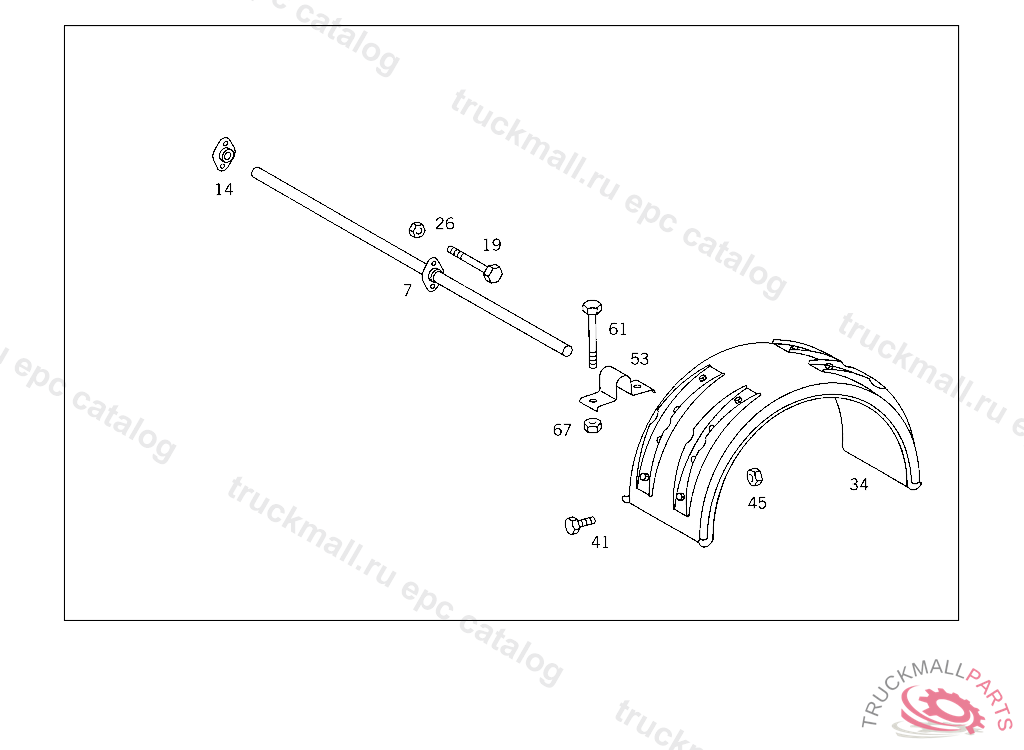

Поз.
Артикул
Описание
7
SUPPORT
14
FLANGE
19
SCREW CONNECTOR TO REAR SHIFTING ROD
19
SCREW , Replaced By: N304017010047
26
NUT AIR CLEANER ELEMENT
34
FENDER
41
SCREW PIPE CLAMP
41
SCREW , Replaced By: N304017008021
45
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
45
NUT , Replaced By: N913004008001
53
CLAMPING PIECE FENDER TO SUPPORT
61
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
61
SCREW , Replaced By: N304017008027
67
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
67
NUT , Replaced By: N913004008001
999
CAP AT BRACKET,K 257460
999
REINFORCEMENT , Replaced By: A4405220829
999
BRACKET
999
FENDER
999
REINFORCEMENT FENDER TO BRACKET
