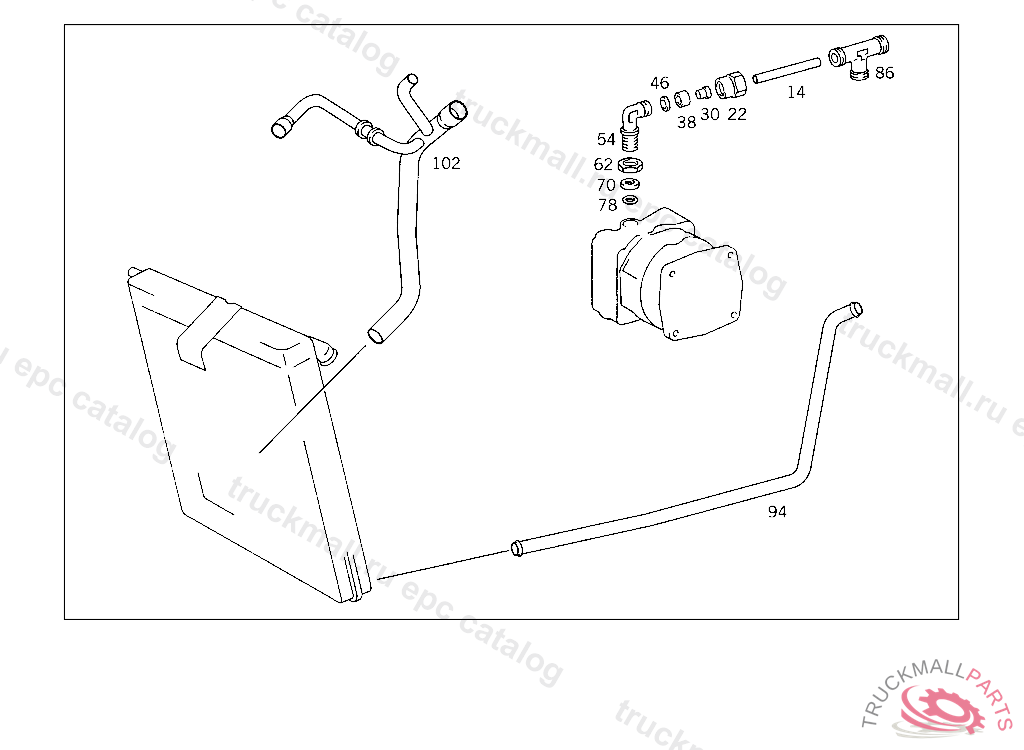

Поз.
Артикул
Описание
14
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
22
UNION NUT BUTT SCREW CONNECTION
30
GLAND LINE CONNECTION
38
THRUST RING BUTT SCREW CONNECTION
46
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
46
SEAL RING , Replaced By: N007603012121
54
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
62
NUT SUCTION LINE TO OIL PUMP
70
THRUST RING SUCTION LINE TO OIL PUMP
78
SEAL RING LINE CONNECTION
86
T-FITTING BETWEEN THE LINES
94
PIPE (HEATING PIPE)
102
HOSE FROM RADIATOR TO WATER PUMP
999
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET , 318.351,352,353,354,372 FROM IDENT-NO. 4 497676,318.356,357,358,359,392 FROM IDENT-NO. 4 477458 ONLY ON VEHICLES HAVING MERCEDES-BENZ CAB
999
HOSE FROM RADIATOR TO WATER PUMP,4 822761 FOR USE WITH MERCEDES-BENZ CAB
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP STAY TO BRACKET
