Поз.
Артикул
Описание

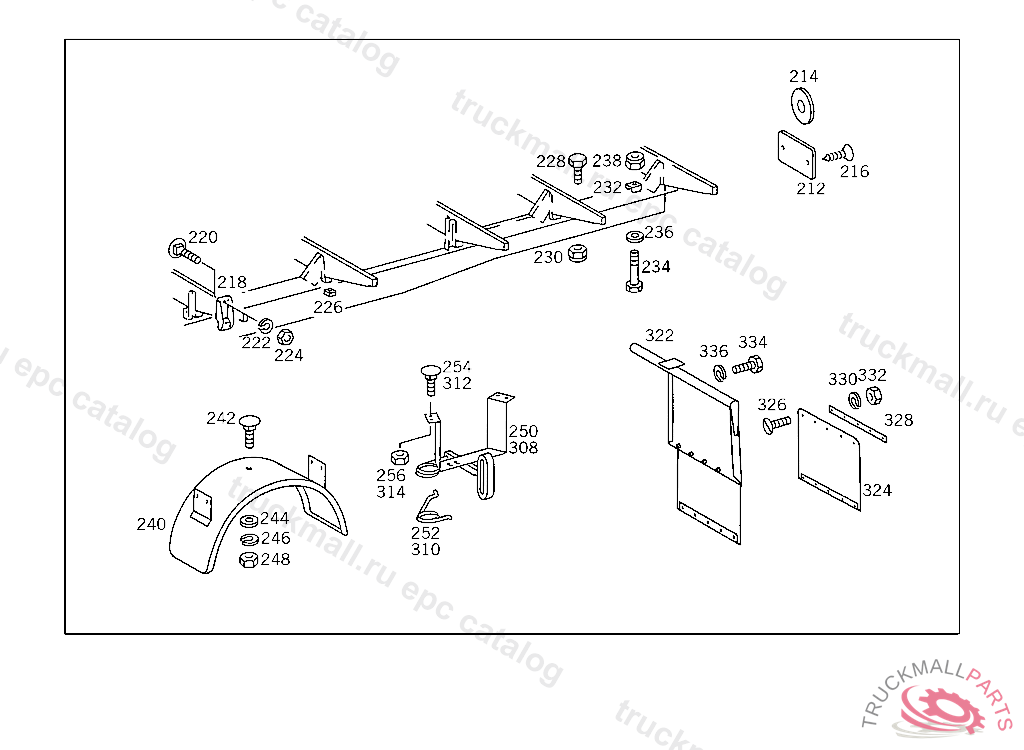

308
FIXTURE CHOCK,755918
310
SPRING CHOCK
312
SCREW BRACKET TO BODY M8X40
312
SCREW , Replaced By: N304017008021
312
SCREW PIPE CLAMP
314
NUT
314
NUT , Replaced By: N913004008001
314
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
322
MUD APRON LEFT
322
MUD APRON RIGHT
324
SPLASH GUARD450X300 MM
326
SCREW
328
BRACKET MUD APRON
330
LOCK WASHER BRACKET TO STEERING COLUMN END
332
NUT , Replaced By: N304032005005
332
NUT IN CASE OF SUBSEQUENT INSTALLATION
334
SCREW , Replaced By: N308676012038
334
SCREW BRACKET TO TRANSMISSION
336
LOCK WASHER FITTING TO BRACKET
999
WASHER SHOCK ABSORBER TO SIDE MEMBER
999
FIXTURE , Replaced By: A3528900110
999
PIPE CLAMP OIL LINE MOUNTING, WITH COMPLETE VEHICLES
999
LINE , Replaced By: A3856191365
999
SUBSTRUCTURE (AUXILIARY FRAME),4 155917 DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH
999
PLATFORM3500 X 2240 X 400 MM,4 155917 DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH
999
VALVE DUMPING PLATFORM
999
SUBSTRUCTURE (AUXILIARY FRAME),4 155918 DUMPING PLATFORM AND COMPONENT PARTS,INCLUSIVE OF SPARE WHEEL MOUNTINGS,SHOULD BE ORDERED FROM THE RESPECTIVE PLATFORM MANUFAC TURERS,MESSRS.F.X.MEILLER,MUNICH
999
PLATFORM
999
BRACKET , Replaced By: A3142362540
999
GROMMET BATTERY CASE
999
WIRE CABLE
999
WIRE CABLE ,4 155917
