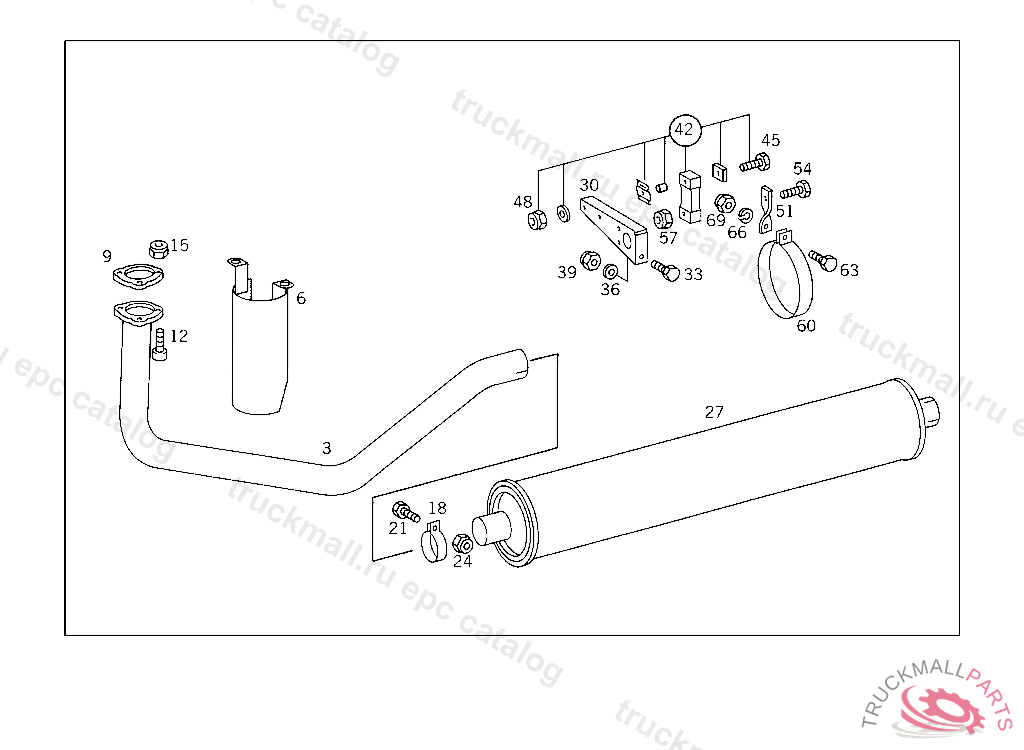

Поз.
Артикул
Описание
3
EXHAUST PIPE FRONT,4 282707
3
EXHAUST PIPE FRONT
6
PROTECTIVE PLATE ,FB696640
6
PROTECTIVE PLATE FRONT
9
FLANGE GASKET , Replaced By: A4424920280
9
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
12
SCREW CONVERTER HOUSING
12
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD,4 282707
12
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M 10X50
15
NUT EXHAUST PIPE TO SIDE MEMBER
15
NUT EXHAUST PIPE TO SIDE MEMBER
18
CLAMP FRONT EXHAUST PIPE TO MUFFLER
21
SCREW , Replaced By: N304017008034
21
SCREW BRACKET TO CROSS CONNECTION STRUT
24
NUT , Replaced By: A1201420072
24
HEXAGON NUT SCREENING PLATE,5 163561
27
EXHAUST MUFFLER
30
SUPPORT RIGHT AIR RESERVOIR
30
SUPPORT RIGHT AIR RESERVOIR
33
SCREW END PIECE TO EXHAUST PIPE M 10X25
36
WASHER , Replaced By: N000125010532
36
WASHER RADIATOR TO RUBBER MOUNTING
39
NUT AIR CLEANER ELEMENT
39
NUT , Replaced By: N910113010000
39
NUT STRAP TO BRACKET
42
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
45
SCREWM 8X40
48
NUT , Replaced By: N913004008001
48
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
51
BRACKET AT MUFFLER,5 194472
54
SCREW VALVE TO BRACKET
57
NUT , Replaced By: A1201420072
57
HEXAGON NUT SCREENING PLATE,5 163561
60
BRACKET EXHAUST MUFFLER SUSPENSION
63
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
66
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
69
NUT EXHAUST PIPE TO SIDE MEMBER
999
RUBBER BUFFER , Replaced By: A0019875240
999
NUT , Replaced By: N913004008005
999
NUT , Replaced By: N913004008007
999
NUT , Replaced By: N913004010000
999
INSULATING WASHER. INSULATION , Replaced By: A3094900037
999
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
999
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
999
SPACER TUBE FRONT EXHAUST PIPE,B 884219
999
REPAIR KIT , Replaced By: A3094900037
999
SUPPORT , Replaced By: A3164920316
999
EXHAUST PIPE ,4 282707, Replaced By: A3184923104, +001A3184920641, +001A3184923641, +001A3185440338, +001N000933008152, +001N071555060500, +001N913004008004
999
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3184901719
999
EXHAUST PIPE ,949960-4 282707
999
BRACKET , Replaced By: A3144910341
999
SPACER TUBE EXHAUST SYSTEM TO SUBSTRUCTURE, 804703
999
BRACKET , Replaced By: A3184920641
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A3184924304
999
EXHAUST MUFFLER , Replaced By: A3834900001
999
BRACKET AT MUFFLER,5 1522775 194472
999
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
