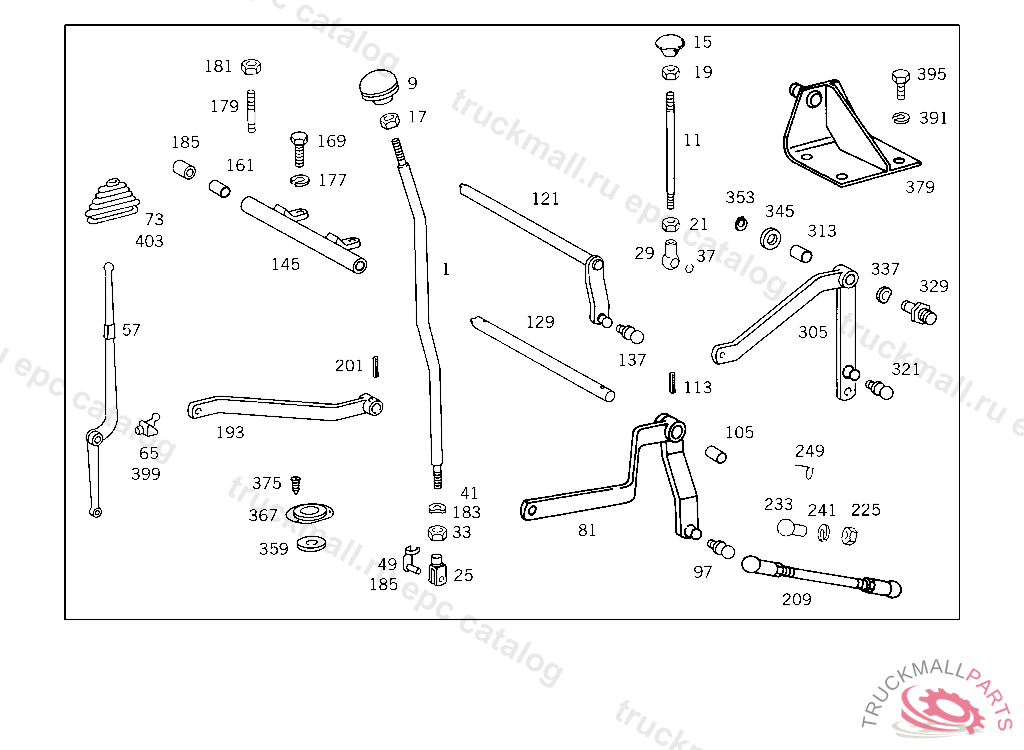

Поз.
Артикул
Описание
1
SHIFTING ROD , Replaced By: A3522605233
1
SHIFTING ROD P.T.O.
1
SHIFTING ROD P.T.O.
1
SHIFTING ROD P.T.O.
1
SHIFTING ROD P.T.O.
1
SHIFTING ROD P.T.O.,4 406125
1
SHIFTING ROD P.T.O.,4 406126
1
SHIFTING ROD P.T.O.
9
HANDLE (GEARSHIFT LEVER KNOB)
11
SHIFTING ROD P.T.O.
15
HANDLE (GEARSHIFT LEVER KNOB)
17
NUT GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
17
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
19
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
21
NUT
25
YOKE OPERATING ROD
25
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
25
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
29
BALL SOCKET ROD TO BALL PIVOT
33
NUT
33
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
33
NUT , Replaced By: N913004008001
37
SNAP RING
41
SPRING WASHER SHIFTING CYLINDER TO YOKE
49
PIN SHIFT LEVER TO PIVOT PIN
49
PIN PULL ROD TO TRANSMISSION SHIFT LEFER
57
SHIFT LEVER P.T.O.
57
SHIFT LEVER P.T.O.
57
SHIFT LEVER , Replaced By: A3222603039
65
GREASE NIPPLE
73
BOOT SHIFT LEVER BEARING COVERING
73
BOOT , Replaced By: A3222640096
73
BOOT , Replaced By: A3222640096
73
BOOT , Replaced By: A3222640096
81
LEVER SHIFTING TRANSFER,LEFT,4 611167
81
LEVER SHIFTING TRANSFER,LEFT,4 406125-4 611166
81
LEVER SHIFTING TRANSFER,LEFT,4 406125
81
LEVER SHIFTING TRANSFER,LEFT
97
BALL PIVOT
97
BALL PIVOT
105
BUSHING
113
GROOVED PIN SHIFTING SHAFT TO LEVER
121
SHAFT (SHIFTING SHAFT)
121
SHAFT (SHIFTING SHAFT)
129
SHAFT (SHIFTING SHAFT)
137
BALL PIVOT
145
BEARING SHIFTING SHAFT BEARING
145
BEARING SHIFTING SHAFT BEARING
161
BUSHING
169
SCREW , Replaced By: N308676012038
169
SCREW BRACKET TO TRANSMISSION
169
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
169
SCREW , Replaced By: N304017008043
169
SCREW VALVE TO BRACKET M 8X55
169
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
169
SCREW BRACKET TO TRANSMISSION
169
SCREW SHIFTING SHAFT BEARING TO HOUSING M 12X165
177
LOCK WASHER FITTING TO BRACKET
177
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
179
STUD BOLT BELL HOUSING, FROM IDENT NO. 760272 ALSO INSTALLED ON 500001-599999 10/20 UP TO IDENT NO. 922885 EXCEPT FOR 502153,502155,502162,502192-502195,502198-502204,502207-599999,918576,921744,921785,921797,922052, 922078,922195,922255,922267,922336,922675,922688,922719,922739,922763,922853. ALSO INSTALLED ON 934036,934433,934539,935068,935169,937098. 50/60 UP TO IDENT NO. 922468 ON 96 KW (130 PS/DIN) 50/60 UP TO IDENT NO. 923153 ON 124 KW (168 PS/DIN)
181
NUT , Replaced By: N304032010002
181
NUT
183
SPRING WASHER SHIFTING CYLINDER TO YOKE
185
PIN PULL ROD TO TRANSMISSION SHIFT LEFER
185
HUB SHIFTING SHAFT BEARING TO HOUSING
193
LEVER (SHIFT LEVER)
193
LEVER (SHIFT LEVER)
201
GROOVED PIN SHIFTING SHAFT TO LEVER
209
PULL ROD , Replaced By: N900331008262
209
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
209
PULL ROD FROM SHIFT LEVER TO P.T.O.
225
NUT
225
NUT BRACKET TO EXHAUST PIPE BRACKET
225
NUT
233
BALL SOCKET ROD TO BALL PIVOT
241
SNAP RING
241
SNAP RING
249
SECURING CLIP. CIRCLIP
249
SECURING CLIP. CIRCLIP
305
LEVER GEARSHIFT MECHANISM
305
LEVER GEARSHIFT MECHANISM
313
BUSHING
321
BALL PIVOT
329
PIN P.T.O. SHIFT LEVER
337
WASHER SHIFT LEVER TO PIVOT PIN
345
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
353
LOCK RING SHIFT LEVER TO PIVOT PIN
359
WASHER SHIFT LEVER TO CAB FLOOR
367
LOCKING CAP SHIFT LEVER BEARING COVERING
375
SCREW
375
SHEET METAL SCREW , Replaced By: N000000002062
379
BEARING BRACKET SHIFT LEVER
391
CONNECTOR
391
LOCK WASHER FITTING TO BRACKET
395
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
399
COUPLER
399
GREASE NIPPLE
403
BOOT SHIFT LEVER BEARING COVERING
999
LEVER P.T.O. CONTROL,614928
999
SHIFTING ROD
999
SHIFTING ROD
999
SHIFTING ROD P.T.O. CONTROL
999
SHIFT LEVER
999
PAD
999
BEARING BRACKET SHIFTING ROD
999
SHIFTING ROD P.T.O.
999
LEVER SHIFTING TRANSFER,LEFT
999
SHIFTING ROD MEILLER DUMPER PUMP
999
SHIFT LEVER P.T.O.
999
BEARING BRACKET P.T.O. SHIFT LEVER
999
SHIFTING TUBE FROM SHIFT LEVER TO LEVER
999
LEVER SHIFTING TRANSFER,RIGHT
999
SHIFT LEVER P.T.O.
999
LEVER SHIFTING TRANSFER,LEFT
999
LEVER SHIFTING TRANSFER,LEFT
999
LEVER SHIFTING TRANSFER,LEFT
999
SHAFT (SHIFTING SHAFT)
999
PULL ROD
999
PULL ROD
999
PULL ROD
999
BEARING SHIFTING SHAFT BEARING
999
BEARING SHIFTING SHAFT BEARING
999
LEVER SHIFTING TRANSFER,RIGHT
999
BEARING BRACKET SHIFTING SHAFT BEARING
999
BEARING CONTROL SHAFT
999
LEVER SHIFT LEVER
999
BEARING BRACKET SHIFTING SHAFT BEARING
999
LEVER SHIFTING TRANSFER,LEFT
999
PULL ROD FROM SHIFT LEVER TO P.T.O.
999
BEARING SHIFTING SHAFT BEARING
999
BEARING BRACKET SHIFT LEVER
999
BEARING BRACKET SHIFT LEVER
999
BEARING SHIFTING SHAFT BEARING
999
BEARING SHIFTING SHAFT BEARING
999
PULL ROD
999
BEARING SHIFTING SHAFT BEARING
999
LEVER SHIFT LEVER
999
SHIFTING ROD P.T.O.
999
LEVER SHIFT LEVER
999
LEVER SHIFT LEVER
999
SHIFTING ROD P.T.O.
999
LEVER SHIFT LEVER
999
LEVER SHIFTING TRANSFER,LEFT
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
ANGLE JOINT DUMPER PUMP
999
ANGLE JOINT P.T.O. CONTROL, NO LONGER AVAILABLE,ORDER INDIVIDUAL PARTS
999
BALL PIVOT AT SHIFT LEVER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT AIR RESERVOIR TO FRAME
999
NUT AIR CLEANER ELEMENT
