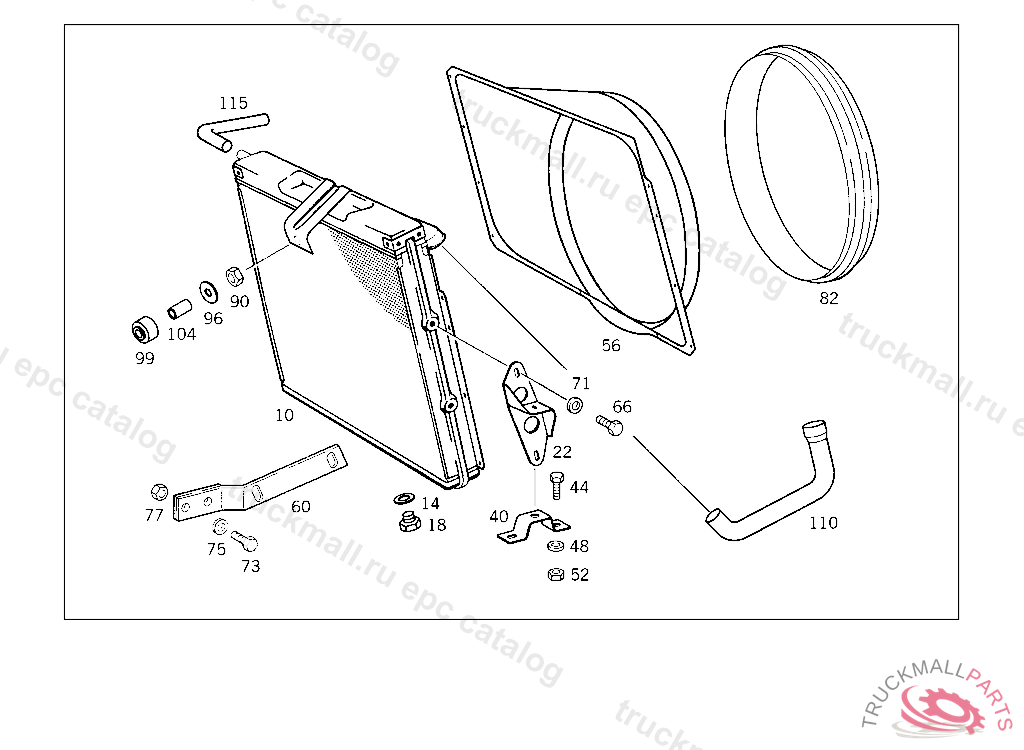

Поз.
Артикул
Описание
10
RADIATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 610757, Replaced By: A3185002002
10
RADIATOR
14
SEAL RING FUEL LINE TO FEED PUMP
18
SCREW PLUG , Replaced By: N007604014110
18
SCREW PLUG FUEL TANK
22
SUPPORT LEFT,4 467136
40
BRACKET RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER,4 467136
44
SCREW REAR EXHAUST PIPE TO MUFFLER
48
WASHER , Replaced By: N000125010532
48
WASHER RADIATOR TO RUBBER MOUNTING
52
NUT BRACKET TO SUPPORT AND TO END PIECE
56
FAN SHROUD RADIATOR
60
SUPPORT LEFT
66
SCREW , Replaced By: N304017010028
66
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
71
WASHER , Replaced By: N000125010532
71
WASHER RADIATOR TO RUBBER MOUNTING
73
SCREW , Replaced By: N304017008034
73
SCREW BRACKET TO CROSS CONNECTION STRUT
75
WASHER , Replaced By: N000125008443
75
WASHER EXHAUST MUFFLER TO STRAP
77
NUT STRAP TO BRACKET
82
BOOT FAN SHROUD
90
NUT BRACKET TO SUPPORT AND TO END PIECE
96
WASHER , Replaced By: N009021010209
96
WASHER BRACKET TO COVERING
99
RUBBER RING SHOCK ABSORBER MOUNTING
104
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
110
HOSE FROM RADIATOR TO THERMOSTAT,4 467135
115
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
999
NUT , Replaced By: N910113010000
999
NUT STRAP TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017010002
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER CONSOLE TO FRAME
999
RUBBER MOUNTING
999
RADIATOR STRUT ,4 467135
999
SUPPORT RIGHT
999
SUPPORT RIGHT
999
FAN SHROUD RADIATOR
999
RUBBER BUFFER EXHAUST MUFFLER
