Поз.
Артикул
Описание

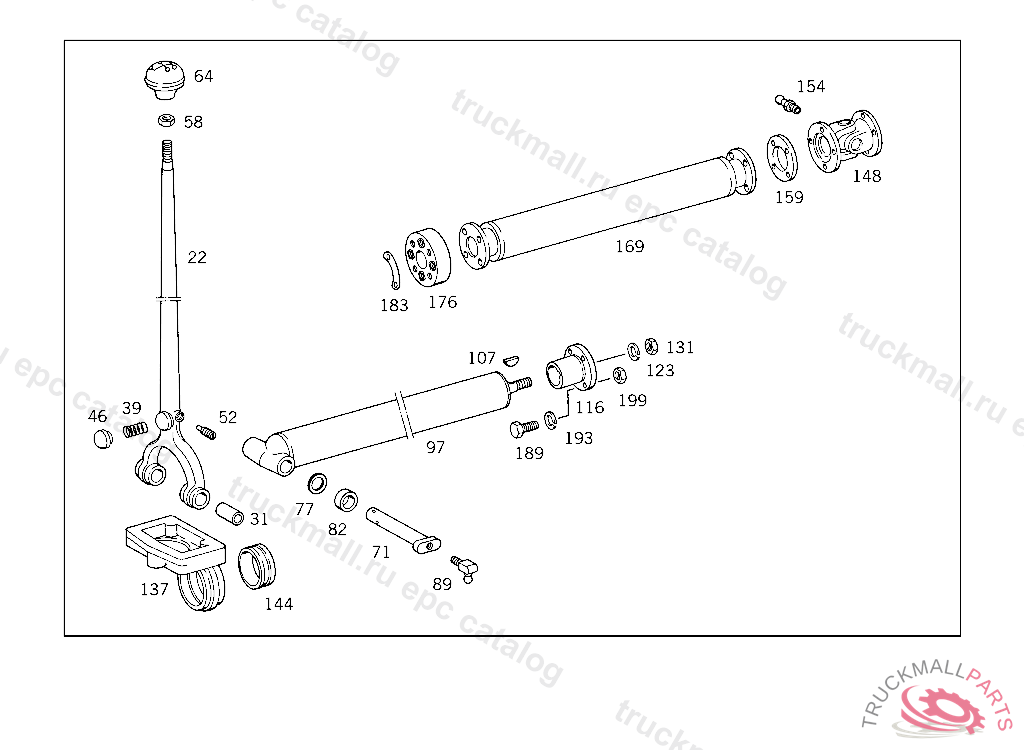

22
SHIFT LEVER REMOTE GEARSHIFT MECHANISM
31
BUSHING SHIFT LEVER TO FRONT SHIFTING TUBE
39
SPRING
46
THRUST PIECE FROM SHIFT LEVER TO P.T.O.
52
HEADLESS SETSCREW FROM SHIFT LEVER TO P.T.O.
58
NUT , Replaced By: N308675010000
58
NUT PUSH ROD
64
HANDLE , Replaced By: A3222600140
64
HANDLE SHIFT LEVER,556499
71
PIN SHIFT LEVER TO FRONT SHIFTING TUBE
77
WASHER LINE MOUNTING
82
SPACER WASHER SHIFT LEVER TO FRONT SHIFTING TUBE, FROM IDENT NO.002562 ALSO INSTALLED ON 002558,002560
89
GREASE NIPPLE
107
WOODRUFF KEY FLANGE TO SHIFTING TUBE
116
CONNECTOR FLANGE TO SHIFTING TUBE
123
LOCK WASHER FITTING TO BRACKET
131
NUT STRAP TO SUPPORT
137
SHIFT CASE REMOTE GEARSHIFT MECHANISM
144
BUSHING , Replaced By: A3572680150
144
BUSHING SHIFTING TUBE
148
JOINT , Replaced By: A0002681989
148
JOINT , Replaced By: A0002681989
148
JOINT , Replaced By: A0002681989
148
JOINT FRONT SHIFTING ROD TO SHIFTING ROD ABOVE FRONR AXLE
148
JOINT SHIFTING ROD TO SHIFTING ROD
148
JOINT , Replaced By: A0002681889
148
JOINT , Replaced By: A0002681889
148
JOINT , Replaced By: A0002681889
148
JOINT , Replaced By: A0002681889
148
JOINT
148
JOINT SHIFTING ROD TO SHIFTING ROD
154
GREASE NIPPLE. LUBRICATING NIPPLE LOCK ANGLE SENSOR
159
SPACER WASHER5 MM
159
SPACER WASHER3 MM
169
SHIFTING ROD REAR, FROM CHASSIS 001732
176
CONNECTOR FRONT SHIFTING ROD TO REAR SHIFTING ROD
183
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
189
SCREW SHIFTING TUBE TO TRANSMISSION
189
SCREW SHIFTING TUBE TO TRANSMISSION
193
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
193
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
199
NUT , Replaced By: N304032008006
199
NUT , Replaced By: N304032008006
999
999
999
999
SPACER WASHER2 MM
999
SCREW SHIFTING ROD TO TRANSMISSION
999
COTTER PINROCKINGER,TYP 59 U150
999
SCREW APPARATUS SUPPORT TO FRAME M 14X45
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
