Mercedes A0005450272 - Mutter

O 317 FH: 317.217, M: 317.217 326.990

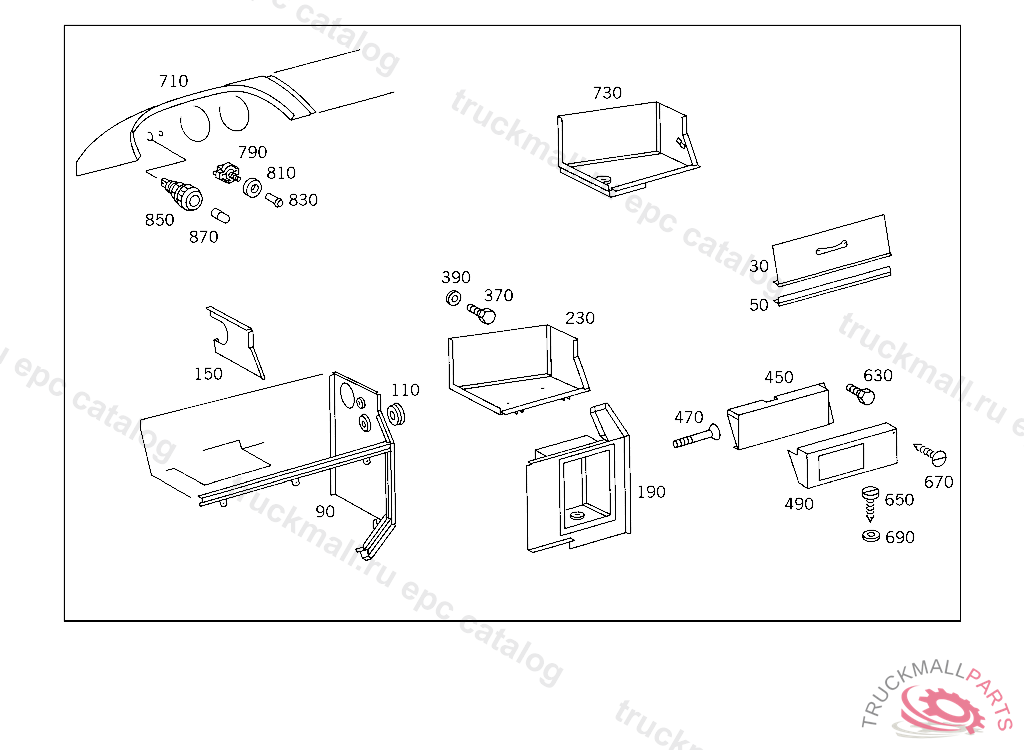

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS IL. 5

Поз.
Артикул
Описание
30
A3176800382
FLAP GLOVE COMPARTMENT
50
A3176880531
CONSOLE
90
A3176802276
PARTITION BOTTOM RIGHT, 000855
110
A0009975081
GROMMET
150
A3176802076
PARTITION , 000855
190
A3176807206
PANELLING COWL,BOTTOM RIGHT, 000855
230
A3176807106
PANELLING AMPLIFIER, 000855
370
N304017008018
SCREW SUPPORT TO FENDER
370
N000933008150
SCREW , Replaced By: N304017008018
390
N000125008400
WASHER , 034 UP TO CHASSIS A 004589
450
A3176880738
PANELLING , 000855
470
N000091004109
SCREW , 000855
490
A3176880138
PANELLING RADIO SET
630
N000933004006
SCREW , 000855
650
N007971004205
SHEET METAL SCREW GUIDE TO CAB SUPPORT
670
N007972004204
SHEET METAL SCREW , 000855
690
N000125004300
WASHER , 000855
710
A3076801408
COVERING LEFT
730
A3076801606
PANELLING BELOW WINDOW SILL,RIGHT
790
A0005455111
SWITCH ABS AND ASR
810
A0005450272
NUT SWITCH TO APPARATUS PLATE
830
A0005450837
BUTTON
850
A0005453415
TELL-TALE LAMP AMPLIFIER
870
N072601012800
BULB2W
999
A0006890170
999
A0009880163
999
A3076801906
999
A3176800569
999
A3176801076
999
A3176801376
999
A3176805106
999
A3176880708
999
H333216880086
999
N000088004101
999
N000088004108
999
N000125003003
999
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
N000933004005
SCREW
999
N000933004067
SCREW AT INSTRUMENT PANEL M 4X16,036897
999
N000933006124
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
N007513004403
999
N007972003209
