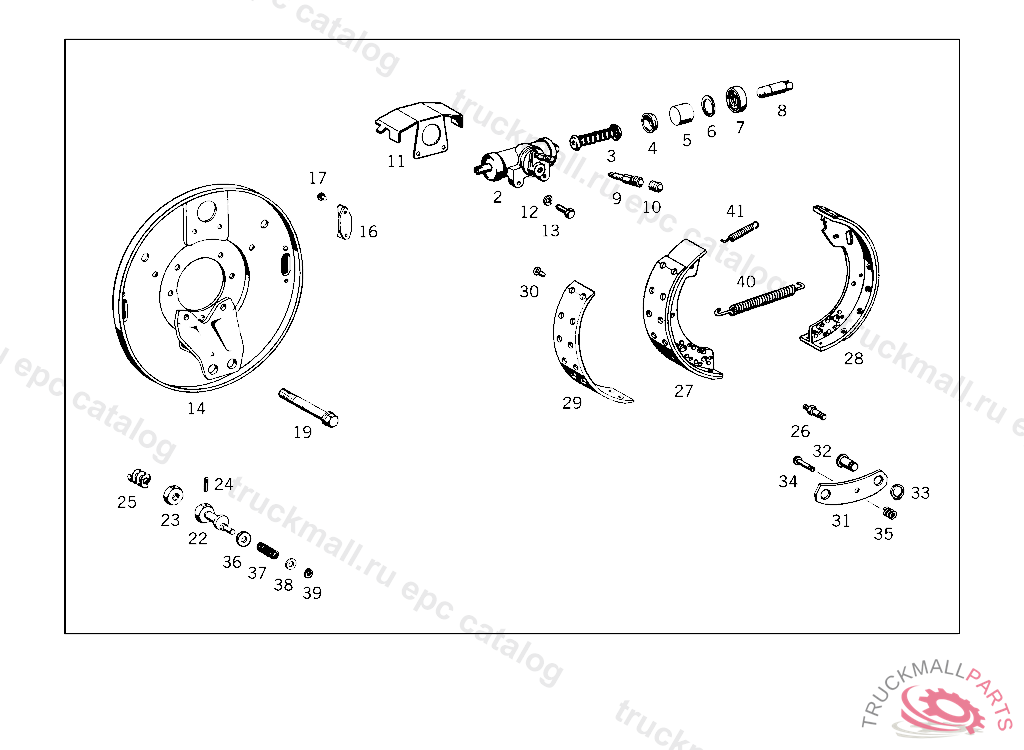

Поз.
Артикул
Описание
2
WHEEL BRAKE CYLINDER
3
SPRING RETAINER WITH SPRING RETAINER, 013933
4
CUP
5
PISTON , 024799
5
PISTON , 024798, Replaced By: A0004213883, +002A0004230888
6
LOCK
7
PROTECTIVE CAP
8
THRUST PIN , 013933-024798, Replaced By: A0004230888, +002A0004213883
8
THRUST PIN
9
BLEEDER VALVE
10
PROTECTIVE CAP , Replaced By: A0004217187
10
PROTECTIVE CAP ,5 962906
10
PROTECTIVE CAP , Replaced By: A0004217187
10
PROTECTIVE CAP , Replaced By: A0004210887
11
PROTECTIVE PLATE
12
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
13
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
14
BRAKE ANCHOR PLATE
14
BRAKE ANCHOR PLATE
16
INSPECTION HOLE COVER
17
RIVET
19
SCREW BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE, FROM CHASSIS 008664-011352 AND FROM CHASSIS 013846
22
ADJUSTER , FROM FRONT AXLE 046630
23
NUT
24
CLAMPING SLEEVE4X32 MM,TO 000 553 23 01,WEBER,4 250875
25
SPRING ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
25
SPRING
26
PIN , ON SPECIAL REQUEST, H.D. FRONT AXLE
26
PIN
27
BRAKE SHOE , Replaced By: A3224200319, +002A3234210510
28
BRAKE SHOE LESS LINING, UP TO CHASSIS 003239 EXCEPT FOR SEE FOOTNOTE 45
28
BRAKE SHOE LESS LINING
28
BRAKE SHOE , Replaced By: A3224200319, +002A3234210510
29
BRAKE LINING ASBESTOS-FREE 12.60 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING12.6 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING ASBESTOS-FREE 12.60 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING12.6 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING11.6 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING11.6 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING ASBESTOS-FREE 10.60 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING10.6 MM, FROM CHASSIS 013363 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING10.6 MM, UP TO CHASSIS 013362 ON SPECIAL REQUEST, H.D. FRONT AXLE
29
BRAKE LINING ASBESTOS-FREE 8.30 MM, 013363
29
BRAKE LINING8.3 MM, 013363
29
BRAKE LINING ASBESTOS-FREE 8.30 MM, 013362
29
BRAKE LINING8.3 MM, 013362
29
BRAKE LINING ASBESTOS-FREE 7.30 MM, 013363
29
BRAKE LINING7.3 MM, 013363
29
BRAKE LINING ASBESTOS-FREE 7.30 MM, 013362
29
BRAKE LINING7.3 MM, 013362
29
BRAKE LINING ASBESTOS-FREE 6.60 MM, 013363
29
BRAKE LINING6.6 MM, 013363
29
BRAKE LINING ASBESTOS-FREE 6.60 MM, 013362
29
BRAKE LINING6.6 MM, 013362
30
RIVET
30
RIVET
31
BRACKET
32
PIVOT PIN SHACKLE TO BRAKE SHOE
32
PIVOT PIN , 037393, Replaced By: A3124211318, +001N900055022301
33
LOCK RING , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
33
LOCK RING , 001926 600301
34
REPAIR KIT BRAKE SHOE SHACKLE SPACER PIN, 006652
34
REPAIR KIT , Replaced By: A3384200182
34
PIN , Replaced By: A3385860442
34
PIN , 006651, Replaced By: A3385860442
35
SPRING , Replaced By: A3385860442
36
SPRING
36
WASHER
37
SPRING , UP TO CHASSIS 910369 ALSO INSTALLED ON 500001-501455,FROM CHASSIS 910370 AND 501456-599999 SEE SPARE PARTS LIST 103
38
WASHER HORN TO ENGINE CROSS MEMBER
39
LOCK PLATE RELEASE LEVER TO SHAFT
40
SPRING
41
SPRING SHORT
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
PIN , Replaced By: N001434010009
999
CAP NUT
999
CONNECTION FITTING LINE CONNECTIONS
999
TOOTHED WASHER ELECTRIC CABLE TO FUSE BOX
999
LOCK PLATE
999
SEAL RING , Replaced By: N007603010110
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LINE CONNECTION
999
SHEET METAL SCREW , ON SPECIAL REQUEST, COMPRESSED AIR WARNING INDICATOR
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW BRACKET TO BODY, WITH COMPLETE VEHICLES
999
WASHER FOR PIPE CLAMPS
999
SNAP RINGTO 000 429 16 30
999
BALL PIVOT INTERMEDIATE LEVER
999
SNAP RING
999
SNAP RING
999
SECURING CLIP. CIRCLIP
999
UNION NUT FOR 6-MM-DIA. COMPRESSED AIR LINES
999
DOUBLE FITTING , 023243
999
DOUBLE FITTING BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR
999
ELBOW FITTING
999
NUT
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW SUPPORT TO FENDER
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW BRAKE ANCHOR PLATE TO STEERING KNUCKLE
999
SCREW CONSOLE TO SIDE MEMBER M 12X1.5X35, UP TO IDENT NO. 734559 EXCEPT FOR 500001-599999
999
SCREW
999
STUD BOLT
999
NUT , Replaced By: N308675014000
999
NUT
999
NUT
999
NUT BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE
999
NUT , Replaced By: N308673014001
999
NUT STRAP TO SUPPORT
999
NUT STRAP TO SUPPORT,5 149419
999
NUT PULL ROD
999
NUT L.H. THREAD
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT BALL PIVOT TO LEVER
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW , Replaced By: N304017010028
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW , Replaced By: N304017010002
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO CROSS MEMBER
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW COVER PLATE TO BRACKET
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017010050
999
SCREW
999
SCREW
999
HEX. HEAD. SCREW BEARING BRACKET TO FRAME
999
SCREW VALVE TO BRACKET
999
SCREW VALVE TO CAB M 8X85
999
SCREW , Replaced By: N304017008018
999
SCREW TEST CONNECTION TO BRACKET, ON SPECIAL REQUEST, HYDRAULIC BRAKE TEST CONNECTIONS IN CAB
999
HEX, HEAD. SCREW
999
SCREW
999
RIVET
999
LOCK RING22X1.2,TO 001 431 71 14
999
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
999
WASHER
999
WASHER VIBRATION ABSORBER TO BRACKET
999
WASHER , Replaced By: N000433010510
999
HEADLESS SETSCREW
999
LOCK WASHER BRACKET TO FRAME
999
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
999
WASHER
999
WASHER
999
WASHER , 034 UP TO CHASSIS A 004589
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PINTO 345 431 70 16, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
COTTER PIN BRAKE CABLE TO BRAKE LEVER, 010 UP TO CHASSIS 023660 EXCEPT FOR,SEE FOOTNOTE 59 012 UP TO CHASSIS 049855 EXCEPT FOR,SEE FOOTNOTE 54
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PINTO 360 320 01 89
999
COTTER PIN ,000032
999
COTTER PIN
999
COTTER PIN
999
SCREW
999
SCREW MOUNTING CLAMPS TO SUBSTRUCTURE, FOOTNOTE 39 UP TO CHASSIS 020237
999
SCREW , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
SCREW SHIFT CASE TO SLOTTED GATE
999
SCREW BRACKET TO CAB CROSS MEMBER
999
SCREW DIODE CASE
999
SCREW LINE TO HOSE
999
CYLINDRICAL PIN DRAIN VALVE, UP TO CHASSIS 001731
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
HANDLE , Replaced By: A3124271220
999
PIN BRAKE SHOE MOUNTING BOLT
999
REPAIR KIT , Replaced By: A3124201178
999
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
PIN FORKS TO LEVERS AT REAR AXLE TUBES
999
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
999
HOSE
999
BRACKET PRESSURE REGULATOR, UP TO IDENT NO. 693686 EXCEPT FOR:500001-599999
999
BRACKET LINE MOUNTING
999
BRACKET DISTRIBUTOR TO BRACKET, 815770
999
BRACKET BRACKET TO SEAT BOX, 035730
999
BRACKET TEST CONNECTION, FOOTNOTE 56 UP TO CHASSIS 035730
999
BRACKET , Replaced By: A3524202486
999
BRACKET , Replaced By: A3524202386
999
PIN , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
PIN , Replaced By: A3524270674
999
WASHER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
BUSHING , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
LINE , FOOTNOTE 56 UP TO CHASSIS 035730, Replaced By: A3404200929
999
LINE , FOOTNOTE 56 FROM CHASSIS 035731
999
BRACKET , 656999
999
BRACKET , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
