Поз.
Артикул
Описание

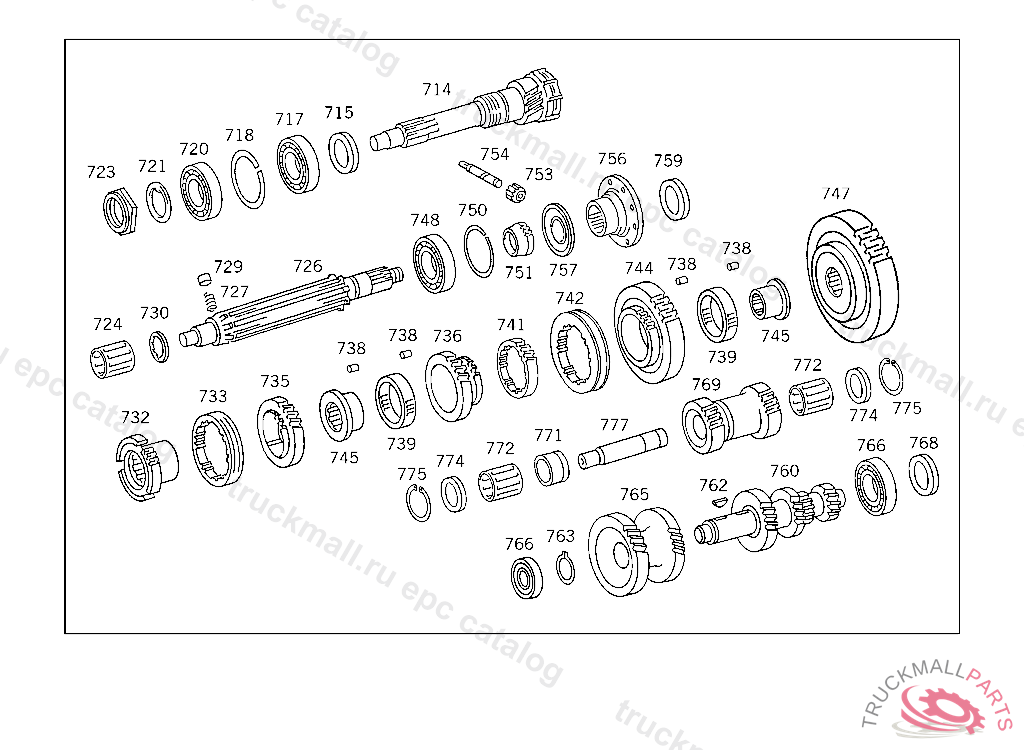

714
DRIVE SHAFT
715
SPACER WASHER DRIVE SHAFT
717
CYLINDR. ROLLER BEARING85 MM,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
718
SNAP RING
720
ANGULAR CONTACT BEARING OUTPUT SHAFT,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
720
ANGULAR CONTACT BEARING , Replaced By: A3459817027
720
ANGULAR CONTACT BEARING FRONT DRIVE SHAFT, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
720
ANGULAR CONTACT BEARING , Replaced By: A0009812827
721
THRUST WASHER
723
NUT BEARING TO DRIVE SHAFT, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
724
ROLLER ASSEMBLY
724
ROLLER ASSEMBLY
726
MAIN SHAFT
727
SPRING
729
PIN
730
THRUST WASHER. SEAL RING AS REQUIRED 8.20 MM
730
THRUST WASHER. SEAL RING AS REQUIRED 8.15 MM
730
THRUST WASHER. SEAL RING AS REQUIRED 8.10 MM
730
THRUST WASHER. SEAL RING AS REQUIRED 8.05 MM
730
THRUST WASHER. SEAL RING AS REQUIRED 8.00 MM
732
FOLLOWER RING 4TH AND 5TH SPEED
733
SLIDING COLLAR
735
GEAR 4TH SPEED
736
GEAR 3RD SPEED
738
CYLINDRICAL ROLLER , Replaced By: A3449817086
739
SPACER TUBE , Replaced By: A0019819810
741
FOLLOWER RING 2ND AND 3RD SPEED
742
SLIDING COLLAR
744
GEAR 2ND SPEED
745
BUSHING
747
GEAR 1ST SPEED
748
BALL BEARING
750
SNAP RING BEARING TO P.T.O. CASE
751
DRIVE GEAR SPEEDOMETER
753
DRIVE GEAR , Replaced By: A3122641331
753
DRIVE GEAR , Replaced By: A6732640031, +001A6732640032
753
DRIVE GEAR SPEEDOMETER
754
SHAFT SPEEDOMETER, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
754
SHAFT SPEEDOMETER
756
FLANGE REAR AXLE, UP TO IDENT NO. 4 477510 FROM IDENT NO. SEE UNIT MICROFICHE MODEL 750.5
757
PROTECTIVE PLATE
759
WASHER
760
COUNTERSHAFT
762
WOODRUFF KEY
763
LOCK RING AS REQUIRED 45X2.5 MM
765
GEAR 4TH SPEED
766
TAPERED ROLLER BEARING
766
TAPERED ROLLER BEARING
768
SPACER WASHER AS REQUIRED 0.05 MM
768
SPACER WASHER AS REQUIRED 0.125 MM
768
SPACER WASHER AS REQUIRED 0.24 MM
768
SPACER WASHER AS REQUIRED 0.50MM
769
REVERSE IDLER GEAR
771
SPACER TUBE
772
ROLLER ASSEMBLY
774
THRUST WASHER
775
LOCK RING SHIFT LEVER BEARING
777
REVERSE IDLER SHAFT
999
GROOVED BALL BEARING INTERMEDIATE BEARING
999
GROOVED BALL BEARING OUTPUT SHAFT
999
GROOVED BALL BEARING
999
GROOVED BALL BEARING , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
HEADLESS SETSCREW FLANGE
999
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
999
LOCK RING , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
999
WASHER BRACKET TO CROSS MEMBER
999
SPRING WASHER , Replaced By: N000137008212
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PIN DRAG LINK TO LEVER
999
COTTER PINTO 000 429 16 30
999
COTTER PIN FRONT WHEEL HUB TO STEERING KNUCKLE,695198
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PINTO 345 431 70 16, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN PULL ROD TO SHIFTING SHAFT
999
COTTER PIN
999
CYLINDRICAL PIN P.T.O. TO TRANSMISSION
999
CYLINDRICAL PIN
999
UNIT IDENTIFICATION PLATE , Replaced By: A6755841024
999
UNIT IDENTIFICATION PLATE , Replaced By: A6755840024
999
SHAFT BOTTOM
999
ROLLER ASSEMBLY 2ND SPEED GEAR, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
UNIT IDENTIFICATION PLATE
999
UNIT IDENTIFICATION PLATE
999
UNIT IDENTIFICATION PLATE
999
UNIT IDENTIFICATION PLATE
999
UNIT IDENTIFICATION PLATE
999
UNIT IDENTIFICATION PLATE
999
UNIT IDENTIFICATION PLATE
999
P.T.O. CENTRAL LESS SHIFT LEVER,RATIO 1:0,395, 322 FROM IDENT NO. 036635 ALSO INSTALLED ON 036376,036449,036450,036452-036454 323 FROM IDENT NO. 006438 328 FROM IDENT NO. 012104 ALSO INSTALLED ON 011917 L 338 FROM IDENT NO. 003000 ALSO INSTALLED ON 002938 LP 338 FROM IDENT NO. 001123 340 FROM IDENT NO. 000339 ALSO INSTALLED ON 000327,000328 ON VEHICLES EQUIPPEP WITH A STEMLER CABLE WINCH
999
P.T.O.
999
P.T.O.
999
P.T.O.
999
P.T.O. LESS GEARSHIFT LEVER
999
P.T.O. LESS GEARSHIFT LEVER
999
UNIT IDENTIFICATION PLATE TRANSMISSION CASE TOP COVER
999
TRANSMISSION LESS SHIFT LEVER AND BREATHER, USED WITH OM 352 A SUPERCHARGED ENGINE AND WITH M 352 GASOLINE ENGINE
999
TRANSMISSION LESS SHIFT LEVER AND BREATHER, USED WITH OM 352 A SUPERCHARGED ENGINE AND WITH M 352 GASOLINE ENGINE
999
TRANSMISSION WITH COUPLING FLANGE AND GEARSHIFT LEVER
999
TRANSMISSION WITH COUPLING FLANGE AND GEARSHIFT LEVER
999
TRANSMISSION , Replaced By: A3232602100
999
TRANSMISSION , Replaced By: A3232602000
999
SHIFT LEVER
999
SHIFT LEVER
999
P.T.O. WITH REVERSE SPEED AND WITH SHIFT LEVER
999
P.T.O. WITH SHIFT LEVER
999
REPAIR KIT , Replaced By: A3222602933
999
REPAIR KIT , Replaced By: A3222601933
999
REPAIR KIT , Replaced By: A3222602233
999
UNIT IDENTIFICATION PLATE P.T.O., FROM P.T.O.003501 UP TO CHASSIS 033577 ON TYPE 322,FROM P.T.O.003501 UP TO CHASSIS 004901 ON TYPE 323,FROM P.T.O.003501 UP TOCHASSIS 009892 ON TYPE 328
999
SHIFTING ROD , Replaced By: A3225860226
999
SELECTOR LEVER
999
DRIVE SHAFT 20 TEETH
999
CONNECTOR , Replaced By: A3812640133
999
GEAR 33 TEETH
999
PAWL FROM SHIFT LEVER TO P.T.O., ON TYPE 322 UP TO CHASSIS 055123,ONM TYPE 323 UP TO CHASSIS 021100,ON TYPE 328 UP TO CHASSIS 024258,ON TYPE 340 UP TO CHASSIS007861 UP TO TRANSMISSION 071059
999
DRIVE SHAFT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 391855, Replaced By: A3812641306
999
REVERSE IDLER GEAR ,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
COUNTERSHAFT , ON VEHICLES HAVING NO P.T.O.AND NO MEILLER DUMPER PUMP,FROM TRANSMISSION 032111-036480,AND FOOTNOTE 048
999
BUSHING AS REQUIRED 44.60 MM,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
BUSHING 4TH SPEED GEAR, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
SYNCHRONIZER BODY 4TH AND 5TH SPEED
999
SYNCHRONIZER BODY 2ND AND 3RD SPEED
999
SYNCHRONIZER CONE 2ND AND 3RD SPEED, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
NUT FLANGE TO MAIN SHAFT
999
TRANSMISSION LESS SHIFT LEVER AND BREATHER, ON TYPE 322 FROM CHASSIS 055124,ON TYPE 323 FROM CHASSIS 021101,BEI TYP 328 FROM CHASSIS 024259,ON TYPE 340 FROM CHASSIS 007862
999
TRANSMISSION LESS SHIFT LEVER AND BREATHER, ON VEHICLES HAVING NO P.T.O.AND NO MEILLER DUMPER PUMP,ON VEHICLES WITH P.T.O.'S 322 260 03 05,322 260 04 05,AND FOOTNOTE 011
999
TRANSMISSION , Replaced By: A3412601600
999
TRANSMISSION CASE COVER TOP,086510
999
TRANSMISSION , Replaced By: A3222606600
999
TRANSMISSION G 32, ON VEHICLES HAVING P.T.O.'S 321 260 01 05,321 260 02 05,322 260 02 05 UP TO CHASSIS 009892,ON VEHICLE HAVING P.T.O.321 260 03 05,AND FOOTNOTE 002 WITH COUPLING FLANGE AND GEARSHIFT LEVER
999
TRANSMISSION G 32, ON VEHICLES HAVING P.T.O.'S 321 260 01 05,321 260 02 05,322 260 02 05 UP TO CHASSIS 009892,ON VEHICLE HAVING P.T.O.321 260 03 05,AND FOOTNOTE 002 WITH COUPLING FLANGE AND GEARSHIFT LEVER
999
SHIFTING ROD PARTS KIT,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
SHIFTING ROD SHIFTING ROD, UP TO IDENT NO. 4 473926 FROM IDENT NO. SEE UNIT MICROFICHE,MODEL 714.0
999
SHIFTING ROD SHIFTING ROD, UP TO IDENT NO. 4 473926 FROM IDENT NO. SEE UNIT MICROFICHE,MODEL 714.0
999
REPAIR KIT , Replaced By: A3222602533
999
REPAIR KIT , Replaced By: A3222602333
999
TRANSMISSION CASE COVER ,086509, Replaced By: A3222606014, +001A3852600046, +004A1362650272, +004A1369908240
999
TRANSMISSION , Replaced By: A3222606200
999
TRANSMISSION , Replaced By: A3412600900
999
P.T.O. , Replaced By: A3522600505
999
P.T.O. , Replaced By: A3522600205
999
DRIVE SHAFT WITH DRIVE GEAR, UP TO P.T.O.003500
999
P.T.O. , Replaced By: A3522600605
999
SYNCHRONIZER BODY 4TH AND 5TH SPEED, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
P.T.O. , Replaced By: A3522600405
999
SYNCHRONIZER BODY 2ND AND 3RD SPEED
999
P.T.O. , Replaced By: A3522600305
999
P.T.O. , Replaced By: A3522600105
999
P.T.O. , Replaced By: A3522600005
999
P.T.O. , ON TYPE 322 UP TO CHASSIS 033577,ON TYPE 323 UP TO CHASSIS 004901,ON TYPE 328 UP TO CHASSIS 009892,, Replaced By: A3522600105, +001A3212640039
999
SYNCHRONIZER BODY 2ND AND 3RD SPEED
999
GEAR , 032111-034199, Replaced By: A3222600644, +001A3222630013
999
GEAR , 230800, Replaced By: A3222600325, +001A3222650305
999
UNIT IDENTIFICATION PLATE FOR RATIOS 1:1,023 AND 1:0,395, UP TO CHASSIS 012053 IN CASE OF P.T.O.WITH TWO DRIVEN SHAFTS
999
UNIT IDENTIFICATION PLATE FOR RATIOS 1:1,51 AND 1:0,395, UP TO CHASSIS 012053 IN CASE OF P.T.O.WITH TWO DRIVEN SHAFTS
999
UNIT IDENTIFICATION PLATE P.T.O., UP TO P.T.O.003500
999
UNIT IDENTIFICATION PLATE P.T.O., ON TYPE 322 UP TO CHASSIS 033577,ON TYPE 323 UP TO CHASSIS 004901,ON TYPE 328 UP TO CHASSIS 009892,
999
UNIT IDENTIFICATION PLATE , Replaced By: A3855845824
999
SHIFTING ROD
999
SHIFTING ROD REVERSE SPEED, 230800
999
PIN , 003994, Replaced By: A3212650074, +001A3212650050
999
SHIFTING FORK , UP TO CHASSIS 027277 OR UP TO TRANSMISSION 078167, Replaced By: A3212651301, +001A3372650007
999
LEVER 1ST SPEED SHIFTING FORK, 013213
999
DRIVE SHAFT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 391855, Replaced By: A3812641406
999
DRIVE SHAFT , Replaced By: A3222600720
999
DRIVE SHAFT , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
DRIVE SHAFT 16 TEETH
999
PIN , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
RING HOUSING FRONT HALF, UP TO P.T.O.003500
999
LOCK-OUT , UP TO P.T.O.003500
999
END PIECE , UP TO TRANSMISSION 007320
999
SHIFTING FORK
999
SLIDING COLLAR , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
GEAR , UP TO P.T.O.003500, Replaced By: A3222600720
999
DRIVE SHAFT , Replaced By: A3222600720
999
INTERMEDIATE SHAFT , 322 UP TO IDENT NO. 036634 EXCEPT FOR 036376,036449,036450,036452-036454 323 UP TO IDENT NO. 006437 328 UP TO IDENT NO. 012103 EXCEPT FOR 011917 L 338 UP TO IDENT NO. 002999 EXCEPT FOR 002938 LP 338 UP TO IDENT NO. 001122 340 UP TO IDENT NO. 000338 EXCEPT FOR 000327,000328
999
COUNTERSHAFT , UP TO IDENT NO. 740066 EXCEPT FOR 500001-599999
999
GEAR , 032110, Replaced By: A3222630314, +001A3222600244
999
GEAR , 032110, Replaced By: A3222630313, +001A3222600644, +001A3222620412
999
GEAR , 032110, Replaced By: A3222630010, +001A3222620802, +001A3222620434
999
COUNTERSHAFT , 032110, Replaced By: A3222630102, +001A3372610220, +001A3222620111, +001A3222625650, +001A3222625750, +001A3222625850, +001A3222625950, +001A3222626050, +001A3222626150, +001A3222626250, +001A3222626350
999
SYNCHRONIZER CONE , Replaced By: A3222620137
999
SLIDING COLLAR 2ND AND 3RD SPEED, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
DRIVE SHAFT , 019143-032110, Replaced By: A3222620102, +001A3222620434, +001A3222630610
999
SLIDING COLLAR 1ST SPEED, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
SYNCHRONIZER RING 5TH SPEED, 032110
999
DRIVE SHAFT , 019142, Replaced By: A3222620102, +001A3212610418, +001A3222620434, +001A3222630610, +001A0159977747
999
GEAR , 032110, Replaced By: A3222620211, +001A3372610220, +001A3222625650, +001A3222625750, +001A3222625850, +001A3222625950, +001A3222626050, +001A3222626150, +001A3222626250, +001A3222626350, +001A3222630102
999
MAIN SHAFT , 032110, Replaced By: A3222620505, +001A3222620072, +001A0009814312
999
BALL SOCKET , Replaced By: A3142620076
999
GEAR , 032110, Replaced By: A3222600644, +001A3222620412, +001A3222630013
999
PROTECTIVE PLATE , TO 337 260 02 17
999
SPACER TUBE , Replaced By: A3529810112
999
GEAR , 032110, Replaced By: A3222620112, +001A3222600644, +001A3222630013
999
GASKET
999
GASKET , Replaced By: A3222610180
999
COVER , Replaced By: A3222610133
