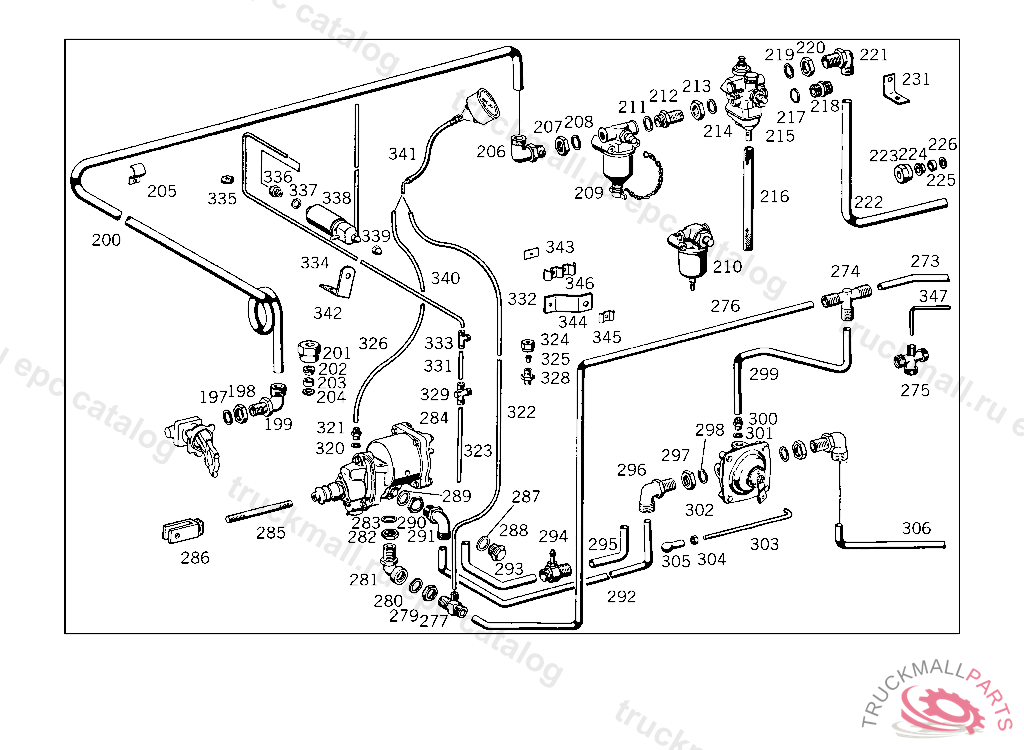

Поз.
Артикул
Описание
197
SEAL RING
198
NUT
199
ELBOW FITTING , BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
200
LINE 18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION, FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
201
UNION NUT TO 18-MM-DIA. COMPRESSED AIR LINES
202
SLIP RING TO 18-MM-DIA. COMPRESSED AIR LINES
203
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
204
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
205
CLAMP FEED LINE TO THERMOSTAT
205
CLAMP
205
CLAMP , Replaced By: A3049950120
206
ELBOW FITTING , BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
207
NUT
208
SEAL RING
209
TIRE INFLATOR CYLINDER
210
AIR CLEANERGRAU, ON SPECIAL REQUEST
211
SEAL RING LINE CONNECTION
212
DOUBLE FITTING BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR
213
NUT
214
SEAL RING
215
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION
215
VALVE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78, Replaced By: A0004318906
216
HOSE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
217
SEAL RING LINE CONNECTION
218
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
219
SEAL RING
220
NUT
221
ELBOW FITTING
222
LINE 15 MM, ON SPECIAL REQUEST, H.D. OIL BATH AIR CLEANER
223
UNION NUT BUTT SCREW CONNECTION
224
SLIP RING BRAKE LINE COUPLING
225
THRUST RING BUTT SCREW CONNECTION
226
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
226
SEAL RING , Replaced By: N007603012121
231
BRACKET , 023243
273
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
274
T-FITTING
276
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
277
T-FITTING
279
NUT
280
SEAL RING
281
ELBOW FITTING
282
NUT
283
SEAL RING
284
BRAKE BOOSTER , Replaced By: A3444317014
285
ROD
286
YOKETO 312 430 43 92,344 430 70 92, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
287
SEAL RING LINE CONNECTION
288
SCREW PLUG AT TANK
288
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
289
SEAL RING
290
NUT
291
ELBOW FITTING
292
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
296
ELBOW FITTING
297
NUT
298
SEAL RING
299
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
299
LINE
300
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
301
SEAL RING LINE CONNECTION
302
BRAKE VALVE
303
ROD
304
NUT
305
BALL SOCKET
306
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
320
SEAL RING LINE CONNECTION
321
DOUBLE FITTING
322
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
322
PIPE LINE , Replaced By: A0004290001
323
PIPE LINE , ON SPECIAL REQUEST, COMPRESSED AIR WARNING INDICATOR
324
UNION NUT
325
SEAL CONE
325
GLAND , Replaced By: A0019901667
326
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
326
PIPE LINE , Replaced By: A0004290001
328
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
329
T-FITTING , ON SPECIAL REQUEST, COMPRESSED AIR WARNING INDICATOR LESS CONNECTION FITTING FOR TEST PRESSURE GAUGE
329
T-FITTING , ON SPECIAL REQUEST, COMPRESSED AIR WARNING INDICATOR LESS CONNECTION FITTING FOR TEST PRESSURE GAUGE
331
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
331
PIPE LINE , Replaced By: A0004290001
332
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
332
PIPE LINE , Replaced By: A0004290001
333
T-FITTING
334
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
334
PIPE LINE , Replaced By: A0004290001
335
GROMMET CLUTCH LINE TO BRACKET
336
DOUBLE FITTING
337
SEAL RING LINE CONNECTION
338
WARNING INDICATOR COMPRESSED AIR, 10/20 UP TO CHASSIS 991702, 50/60 UP TO CHASSIS 990446 EXCEPT FOR 508945-599999
339
CAP NUT
340
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
340
PIPE LINE , Replaced By: A0004290001
341
HOSE PRESSURE GAUGE
342
BRACKET WARNING PRESSURE INDICATOR
343
PLATE
344
BRACKET LINE MOUNTING, INAPPLICABLE TO SUPERCHARGING SYSTEM398035
345
CLAMP LINE MOUNTING
345
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
346
CLAMP
999
SCREW PLUG , Replaced By: A0004315433
999
SCREWED NIPPLE. FITTING , Replaced By: A0084230084
999
SCREW PLUG CONNECTION "1","2",4 478330
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BRACKET. LOCK , Replaced By: A6525040038
999
BRAKE HOSE FRONT AXLE, FROM IDENT NO.: 001078 ALSO INSTALLED ON 000486,000532,000698,000721,000732,000737,000764,000794,000795,000798,000816,000823,000827,000828, 000833,000840,000847,000853,000865,000870,000884,000891,000901,000909,000944,000984,001032,001078, 001155,001156,001219,001363,001385,001427.
999
PIN
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE CONEBOSCH
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
COVERTO 000 429 48 30
999
COVERWABCO
999
BRAKE LINE COUPLING WITH SHUT-OFF VALVE
999
AIR CLEANER
999
DISTRIBUTOR REAR AXLE,4 478330
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
REPAIR KITKNORR
999
STRAINERTO 002 430 31 01
999
CONNECTOR , FROM IDENT NO. 001338 EXCEPT FOR 0013438 0000014 2827078 000001-8 001702
999
CLAMP FLUID RESERVOIR
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
TEST CONNECTION
999
PRESSURE REGULATOR
999
VALVE DISC
999
PROTECTIVE CAP BRAKE BOOSTER
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
ANTI-FREEZE DEVICE
999
VALVE. PRESSURE REGULATOR ,FB486597
999
FILLER CAP , Replaced By: A0004315533
999
CUPBOSCH
999
FILLER CAP , Replaced By: A0004315133
999
STRAINER , Replaced By: A0004314334
999
VALVE , Replaced By: A0004319106
999
STRAINER
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
PROTECTIVE CAP , Replaced By: A0009979486
999
CUP , 010506, Replaced By: A0059974746
999
FILLER CAP , Replaced By: A0004315433
999
FILLER CAP BUTTRESS THREAD
999
FILLER CAPTO 000 431 87 02
999
PROTECTIVE CAP
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
RESERVOIR
999
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0004320807, +001N900397000201
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
SPRING CAPSULETO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
SWITCH , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
REPAIR KITTO 002 430 61 01
999
REPAIR KITTO 002 430 41 01
999
REPAIR KITTEVES
999
REPAIR KIT
999
REPAIR KIT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
SPRINGTO 000 429 16 30
999
CLAMP BRACKET TO AIR COMPRESSOR
999
PIPE CONNECTION NUT. FITTING ,613554
999
GROMMET
999
GROMMET
999
GROMMET CAB ROOF
999
PLUG
999
SEAL RINGTO 000 429 16 30
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KITWABCO
999
REPAIR KIT , FROM 626
999
RESERVOIR COMPRESSED AIR 60 L.
999
SEAL RING42X21.5 MM
999
SEAL RING
999
SEAL RINGTO 000 429 16 30
999
SEAL RINGBOSCH
999
WASHER ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
ADJUSTER
999
BEARING BRACKET , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRAKE LEVER WITH SHAFT, 005081
999
SPACER WASHER
999
SPACER WASHER2.0 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LEVER LEFT, ON LEFT DOUBLE LEVER SHAFT
999
HANDLE
999
BRACKET , 003794
999
REPAIR KIT , Replaced By: A3144200067
999
RIVET
999
HOSE
999
YOKE INTERMEDIATE SHAFT
999
REPAIR KIT , Replaced By: A3124271196, +001A3164230451, +001A3124231552, +002A3124231187, +001A3124261550, +002A3224260183, +001N070852035000, +001N070952035101
999
REPAIR KIT
999
REPAIR KIT , Replaced By: A3144200092
999
BUSHING
