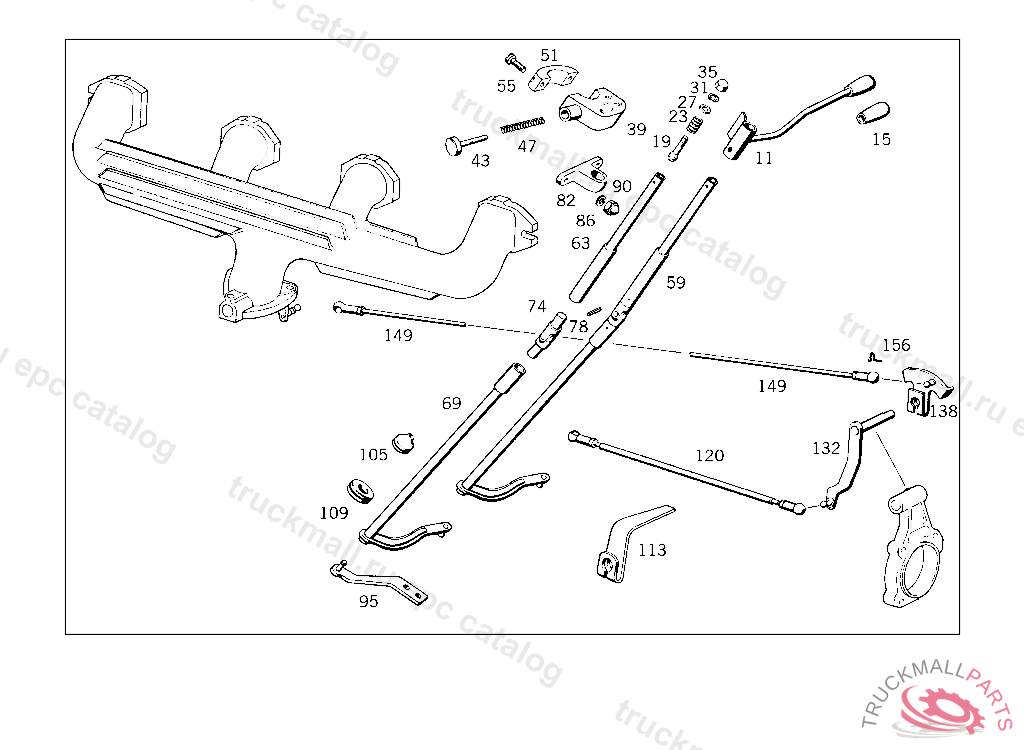

Поз.
Артикул
Описание
11
LEVER , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
15
SCHALTHEBELKNOPF SCHWARZ. KNOB , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
19
SET SCREW , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
23
SPRING , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
27
WASHER , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
31
LOCK RING
35
CAP NUTM 8
39
HAND LEVER BRACKET , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
43
SCREW , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
47
SPRING
51
55
SCREW
59
GUIDE TUBE , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
59
63
GUIDE TUBE , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
69
69
GUIDE TUBE , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
74
UNIVERSAL JOINT , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
78
CLAMPING SLEEVEROCKINGER,TYP 59 U150
82
86
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
CAP NUTM 8
95
95
BRACKET , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
105
GROMMET FOR PASSAGE OF LINE
109
GROMMET ENGINE COVERING
113
LEVER , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
120
ROD , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
132
INTERMEDIATE SHAFT , Replaced By: A3521500744
138
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
138
LEVER , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
149
ROD , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
156
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
999
PULL ROD
999
999
NUT
999
SNAP RING SPRING-LOADED PUSH ROD
999
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
999
BALL SOCKET FROM CONTROL LEVER TO INTERMEDIATE BEARING
999
BALL PIVOT , Replaced By: A3129910120
999
CLAMPING SLEEVE INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO BEARING BRACKET
999
SCREW VALVE TO BRACKET
999
SCREW CONNECTOR
999
SCREW
999
SCREW REAR SIDE PANEL M8X20
999
SCREW
999
WASHER , 034 UP TO CHASSIS A 004589
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
ROD , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
999
999
LEVER ,010639 SEE GROUP 15, Replaced By: A3521500744
999
999
999
999
ROD THROTTLE VALVE
999
BALL PIVOT LEVER
