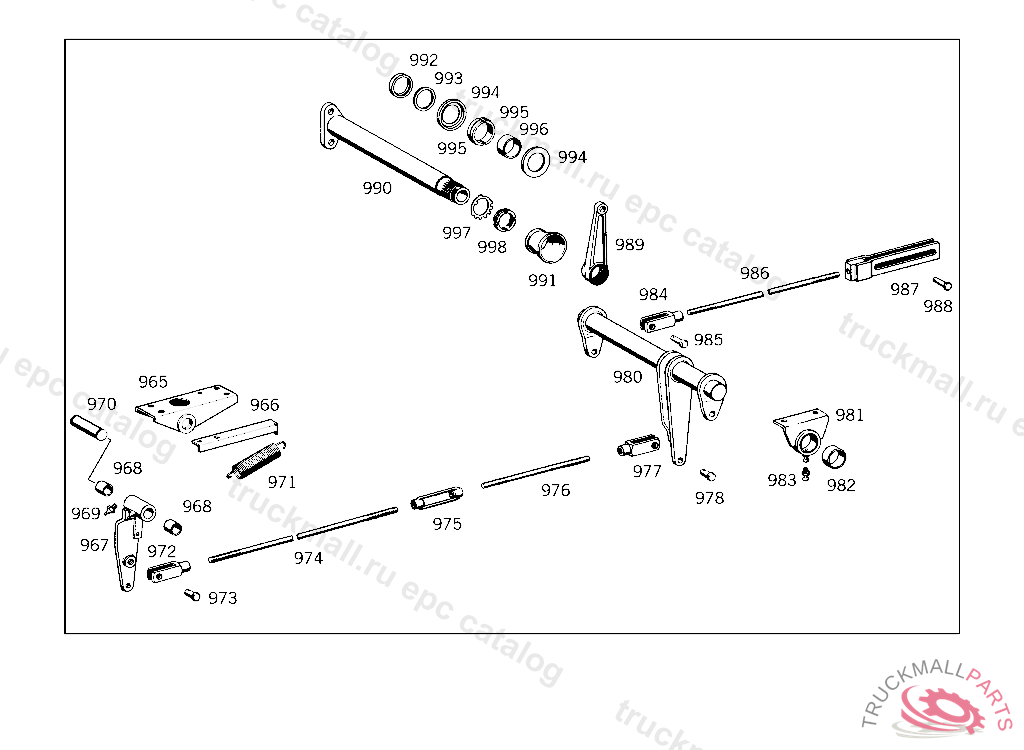

Поз.
Артикул
Описание
965
BEARING BRACKET
966
BRACKET INTERMEDIATE LEVER
967
LEVER FRONT
968
BUSHING LEVER
969
GREASE NIPPLE PROTECTIVE TUBE
970
PIN
971
SPRING LEVER
972
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
973
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
974
PULL ROD
975
TURNBUCKLE , Replaced By: A3859960034
975
NUT FROM BRAKE SHAFT TO BRAKE LEVER
976
PULL ROD
977
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
978
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
980
BRAKE INTERMEDIATE SHAFT REAR
981
BEARING BRACKET
982
BUSHING
983
GREASE NIPPLE PROTECTIVE TUBE
984
YOKE POWER CYLINDER TO EXHAUST SHUNT FLAP
985
PIN PULL ROD TO BRAKE INTERMEDIATE LEVER
986
PULL ROD
987
YOKE , Replaced By: A3524200047
988
PIN , Replaced By: A3529910107
988
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
989
LEVER RIGHT
990
BRAKE LEVER , Replaced By: A3224200042
991
CUP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
992
SPACER RING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
992
SPACER RING
993
SPACER WASHER0,2 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
993
SPACER WASHER1.0 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
993
SPACER WASHER2.0 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
994
PROTECTIVE CAP , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
995
SPHERICAL PIECE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
995
SPHERICAL PIECE , Replaced By: A3224260183
996
BUSHING , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
997
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
998
NUT TORSION BAR TO BEARING BRACKET,5 904660
999
SCREW PLUG , Replaced By: A0004315433
999
SCREWED NIPPLE. FITTING , Replaced By: A0084230084
999
SCREW PLUG CONNECTION "1","2",4 478330
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BRACKET. LOCK , Replaced By: A6525040038
999
BRAKE HOSE FRONT AXLE, FROM IDENT NO.: 001078 ALSO INSTALLED ON 000486,000532,000698,000721,000732,000737,000764,000794,000795,000798,000816,000823,000827,000828, 000833,000840,000847,000853,000865,000870,000884,000891,000901,000909,000944,000984,001032,001078, 001155,001156,001219,001363,001385,001427.
999
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
999
PIN
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE CONEBOSCH
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
COVERTO 000 429 48 30
999
COVERWABCO
999
BRAKE LINE COUPLING WITH SHUT-OFF VALVE
999
AIR CLEANER
999
DISTRIBUTOR REAR AXLE,4 478330
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
REPAIR KITKNORR
999
STRAINERTO 002 430 31 01
999
CONNECTOR , FROM IDENT NO. 001338 EXCEPT FOR 0013438 0000014 2827078 000001-8 001702
999
CLAMP FLUID RESERVOIR
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
TEST CONNECTION
999
PRESSURE REGULATOR
999
VALVE DISC
999
PROTECTIVE CAP BRAKE BOOSTER
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
ANTI-FREEZE DEVICE
999
VALVE. PRESSURE REGULATOR ,FB486597
999
FILLER CAP , Replaced By: A0004315533
999
CUPBOSCH
999
FILLER CAP , Replaced By: A0004315133
999
STRAINER , Replaced By: A0004314334
999
VALVE , Replaced By: A0004319106
999
STRAINER
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
PROTECTIVE CAP , Replaced By: A0009979486
999
CUP , 010506, Replaced By: A0059974746
999
FILLER CAP , Replaced By: A0004315433
999
FILLER CAP BUTTRESS THREAD
999
FILLER CAPTO 000 431 87 02
999
PROTECTIVE CAP
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
RESERVOIR
999
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0004320807, +001N900397000201
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
SPRING CAPSULETO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
SWITCH , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
REPAIR KITTO 002 430 61 01
999
REPAIR KITTO 002 430 41 01
999
REPAIR KITTEVES
999
REPAIR KIT
999
REPAIR KIT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
SPRINGTO 000 429 16 30
999
CLAMP BRACKET TO AIR COMPRESSOR
999
PIPE CONNECTION NUT. FITTING ,613554
999
GROMMET
999
GROMMET
999
GROMMET CAB ROOF
999
SEAL RING
999
PLUG
999
SEAL RINGTO 000 429 16 30
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KITWABCO
999
REPAIR KIT , FROM 626
999
RESERVOIR COMPRESSED AIR 60 L.
999
SEAL RING42X21.5 MM
999
SEAL RING
999
SEAL RINGTO 000 429 16 30
999
SEAL RINGBOSCH
999
WASHER ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
ADJUSTER
999
BEARING BRACKET , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRAKE LEVER WITH SHAFT, 005081
999
SPACER WASHER
999
LEVER LEFT, ON LEFT DOUBLE LEVER SHAFT
999
HANDLE
999
BRACKET , 003794
999
REPAIR KIT , Replaced By: A3144200067
999
RIVET
999
HOSE
999
YOKE INTERMEDIATE SHAFT
999
REPAIR KIT , Replaced By: A3124271196, +001A3164230451, +001A3124231552, +002A3124231187, +001A3124261550, +002A3224260183, +001N070852035000, +001N070952035101
999
REPAIR KIT
999
REPAIR KIT , Replaced By: A3144200092
999
BUSHING
999
BUSHING , Replaced By: A3179920101
999
PIN , 020105
999
PIN
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
END PIECE , Replaced By: A3224200347, +001A3529910707
999
LINE , Replaced By: A3224209728
999
LINE , Replaced By: A3224209928
999
END PIECE
999
LINE , 010505, Replaced By: A3404201529
999
PAWL
999
LINE , ON SPECIAL REQUEST, TWO-CIRCUIT BRAKE, Replaced By: A3404203929
999
PAWL
999
CABLE PULLEY , Replaced By: A3224200293
999
PAWL
999
PAWL
999
PAWL
999
ROD , UP TO CHASSIS 741766
999
ROD
999
BRAKE INTERMEDIATE SHAFT WITH INTERMEDIATE LEVERS, 015536
999
BRAKE INTERMEDIATE SHAFT REAR
999
BRAKE ANCHOR. SUPPORT BRAKE ANCHOR PLATE TO STEERING KNUCKLE
999
SPRING , UP TO CHASSIS 003239 EXCEPT FOR SEE FOOTNOTE 45
999
SHACKLE
999
BRAKE LINING11.30 MM, 013362
999
BRAKE LINING12.30 MM, 013362
999
LEVER LEFT
999
WASHER AS REQUIRED 2.00MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
PIN PAWL LEVER
999
WASHER AS REQUIRED 2.3MM, UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
PIN
999
BRACKET
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516256
999
SPRING
999
LINE , 010506, Replaced By: A3404201529
999
BRAKE LEVER WITH SHAFT, 005082
999
GUIDE , 020105
999
BRAKE LEVER FRONT, 015536
999
LEVER FRONT, 015536
999
PAWL , 656999
999
CABLE PULLEY , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
BRAKE LEVER , UP TO CHASSIS 629394 EXCEPT FOR:500001-599999
999
YOKE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BEARING BRACKET , 020105
999
PAWL , 656999
999
999
LEVER FRONT, 015537
999
BRAKE LEVER , 020106-035251
999
ROD , Replaced By: A3214201274
999
BEARING BRACKET , Replaced By: A3524200878, +001A3524270674, +001A0005454009
999
LINE , ON SPECIAL REQUEST, HYDRAULIC BRAKE TEST CONNECTIONS, Replaced By: A3404201729
999
LINE , ON SPECIAL REQUEST, HYDRAULIC BRAKE TEST CONNECTIONS IN CAB, Replaced By: A3404200229
999
LINE , ON SPECIAL REQUEST, HYDRAULIC BRAKE TEST CONNECTIONS IN CAB, Replaced By: A3404201529
999
LINE , 010506, Replaced By: A3404204029
999
BRAKE LINING ASBESTOS-FREE 11.30 MM, 013362
999
BRAKE LINING ASBESTOS-FREE 12.30 MM, 013362
999
PIN , 020105
999
SHIM LINE MOUNTING
