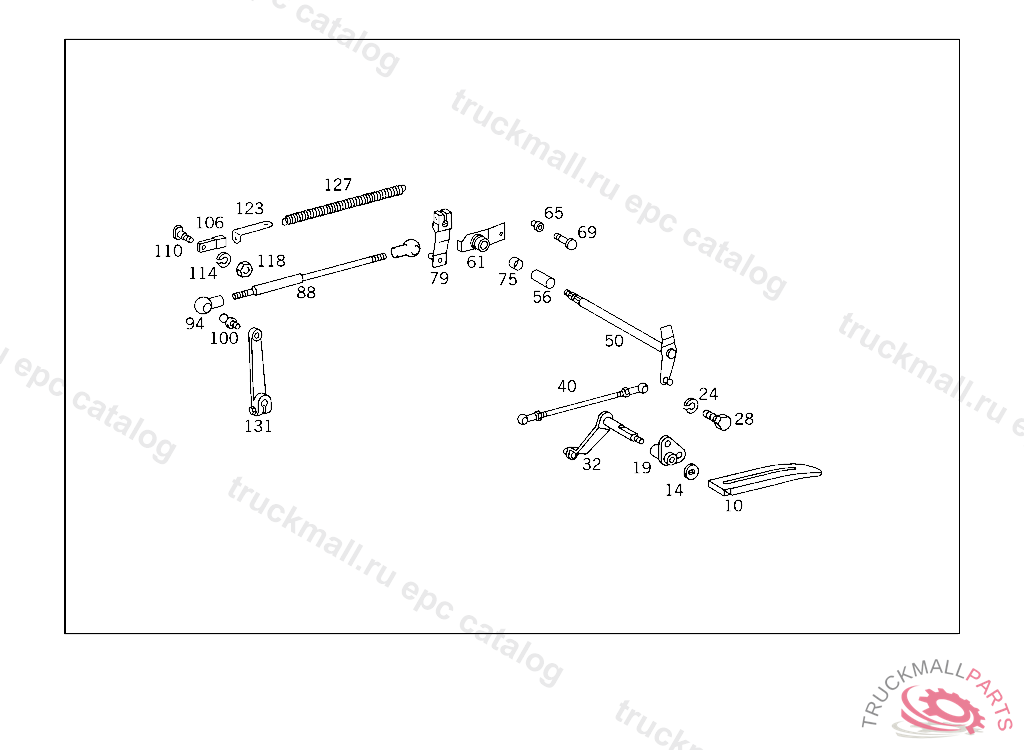

Поз.
Артикул
Описание
10
PLATE ACCELERATOR PEDAL
14
GUARD PLATE ACCELERATOR PEDAL BEARING
19
BEARING TUBE ACCELERATOR PEDAL CONTROL,GB718835
19
BEARING TUBE ACCELERATOR PEDAL CONTROL
24
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
28
SCREW CLAMP TO BRACKET AND TO PIPE
32
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEMGB718835
40
PULL ROD
50
SHAFT CONTROL, WITH DIESEL ENGINE
56
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
61
LEVER
65
BUSHING
69
SCREW MANUAL CONTROL TO BODY
69
SCREW
75
SPACER TUBE VIBRATION ABSORBER TO BRACKET
75
SPACER TUBE , Replaced By: A4070720353
79
LEVER (CONTROL LEVER), WITH DIESEL ENGINE
79
LEVER , Replaced By: A3520709021
79
LEVER ACCELERATOR CONTROL
88
ROD CONTROL LEVER, WITH DIESEL ENGINE WITH OM 352 ENGINE
94
BALL SOCKET
100
BALL SOCKET CONTROL LEVER, WITH DIESEL ENGINE
106
END PIECE ACCELERATOR PEDAL CONTROL, WITH GASOLINE ENGINE
110
PIN PULL ROD, ON SPECIAL REQUEST
114
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
118
NUT BALL PIVOT TO LEVER
123
BRACKET
127
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
131
LEVER AT INJECTION PUMP, WITH DIESEL ENGINE
999
BALL SOCKET , Replaced By: A0009912422
999
GUMMITULLE. GROMMET , Replaced By: A0009978581
999
ROD
999
PLATE , Replaced By: A3223000302
999
BRACKET CLUTCH PEDAL RELEASE SPRING, WITH DIESEL ENGINE WITH OM 312, OR OM 321, ENGINE
999
ROD , Replaced By: N900331006024
999
BUSHING
999
SHAFT CONTROL, WITH DIESEL ENGINE ON VEHICLES HAVING NO EXHAUST BRAKE
999
TUBE
999
BALL PIVOT LEVER
999
SHAFT
999
SPACER TUBE , Replaced By: A3210720053
999
LEVER , OM 312 UP TO ENGINE 200447,OM 321 UP TO ENGINE 083802, Replaced By: A3221400032, +001A3210720053
999
BEARING TUBE ACCELERATOR PEDAL CONTROL, L UP TO IDENT NO. 005243
999
ROD CONTROL, ON SPECIAL REQUEST
999
PEDAL PLATE , Replaced By: A3523000802
999
BEARING BRACKET CONTROL SHAFT, WITH DIESEL ENGINE ON VEHICLES HAVING NO EXHAUST BRAKE UP TO CHASSIS 005569
999
PLATE
999
BEARING BRACKET CONTROL SHAFT, WITH DIESEL ENGINE 005569
999
BEARING BRACKET CONTROL SHAFT, WITH DIESEL ENGINE 005570-020115
999
BEARING BRACKET CONTROL SHAFT, 005101
999
SHIM CONTROL SHAFT BEARING TO FIRE WALL
999
ROD , Replaced By: A3604301992
999
BRACKET OIL LINE TO CRANKCASE
999
SCREW , 032323
999
SCREW
999
LENS HEAD. SCREW MOUNTING CLAMP TO BRACKET, WITH GASOLINE ENGINE
999
COTTER PIN PULL ROD TO SHIFT LEVER
999
COTTER PIN BRAKE SHOE TO BRAKE ANCHOR,4 138316 FROM IDENT NO. 4 138317 SEE UNIT MICROFICHE,MODEL 730.702
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER , 000855
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER , 034 UP TO CHASSIS A 004589
999
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
999
WASHER BRACKET TO CROSS MEMBER
999
SCREW , Replaced By: N000933006194
999
SCREW CONNECTOR
999
SCREW , Replaced By: N304017006019
999
SCREW SHIFTING DOME TO 000 268 37 01
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW HANDLE TO LID
999
BALL PIVOT
999
BALL PIVOT
999
BALL PIVOT , Replaced By: A3129910120
999
BALL SOCKET ROD TO LEVER
999
SNAP RING. BALL SOCKET
999
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD CONTROL,FRONT, NOT USED
999
NUT
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
SCREW , WITH DIESEL ENGINE
999
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
SECURING CLIP. CIRCLIP
999
SNAP RING , WITH GASOLINE ENGINE
999
SNAP RING SPRING-LOADED PUSH ROD
999
SNAP RING PULL ROD, ON SPECIAL REQUEST
