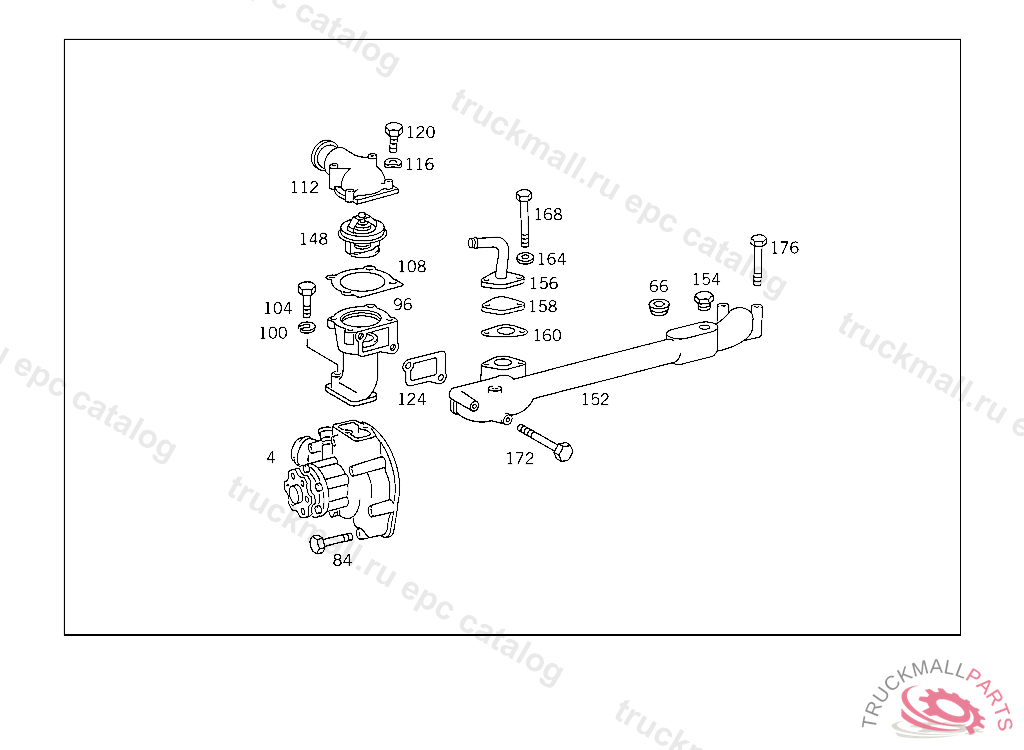

Поз.
Артикул
Описание
4
WATER PUMP
66
GREASE NIPPLE
66
GREASE NIPPLE , Replaced By: N000906010000
66
SCREW PLUG STABILIZER
84
SCREW CROSS MEMBER TO FRAME
84
SCREW PLATE TO TRANSMISSION CASE M 8 X 70
96
HOUSING
100
LOCK WASHER PARKING BRAKE
104
SCREW CLUTCH TO FLYWHEEL M 8X50,838705
108
GASKET COVER TO THERMOSTAT HOUSING, NOT USED
108
GASKET , Replaced By: A3522032080
108
GASKET , Replaced By: A3522032280
112
COVER THERMOSTAT
116
SPRING WASHER
120
SCREW LEVER TO THROTTLE VALVE SHAFT
124
GASKET , Replaced By: A3522032680
124
GASKET , Replaced By: A3522032480
148
THERMOSTAT ELEMENT , Replaced By: A0032032975, +001A3522032280
148
THERMOSTAT ELEMENT , Replaced By: A0032033275, +001A3522031680
148
THERMOSTAT ELEMENT , Replaced By: A0032037475
148
THERMOSTAT ELEMENT , Replaced By: A0032037975
148
THERMOSTAT ELEMENT , Replaced By: A0042038475
148
THERMOSTAT ELEMENT , Replaced By: A3412037075
148
THERMOSTAT ELEMENT , Replaced By: A0052032875
148
THERMOSTAT ELEMENT 71 DEGREES
148
THERMOSTAT ELEMENT 71 DEGREES
152
LINE
154
SCREW PLUG
156
PIPE SOCKET
156
PIPE SOCKET
158
FLANGE
160
GASKET PIPE SOCKET TO CYLINDER HEAD, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
160
GASKET HEATING PIPE TO ENGINE
160
GASKET , Replaced By: A3662030380
164
WASHER , Replaced By: N000125008443
168
SCREWTO 376 131 74 01
172
SCREW LEVER TO PEDAL,4 247126
176
SCREW ,R 034014
999
SHAFT ,A 057418
