Поз.
Артикул
Описание

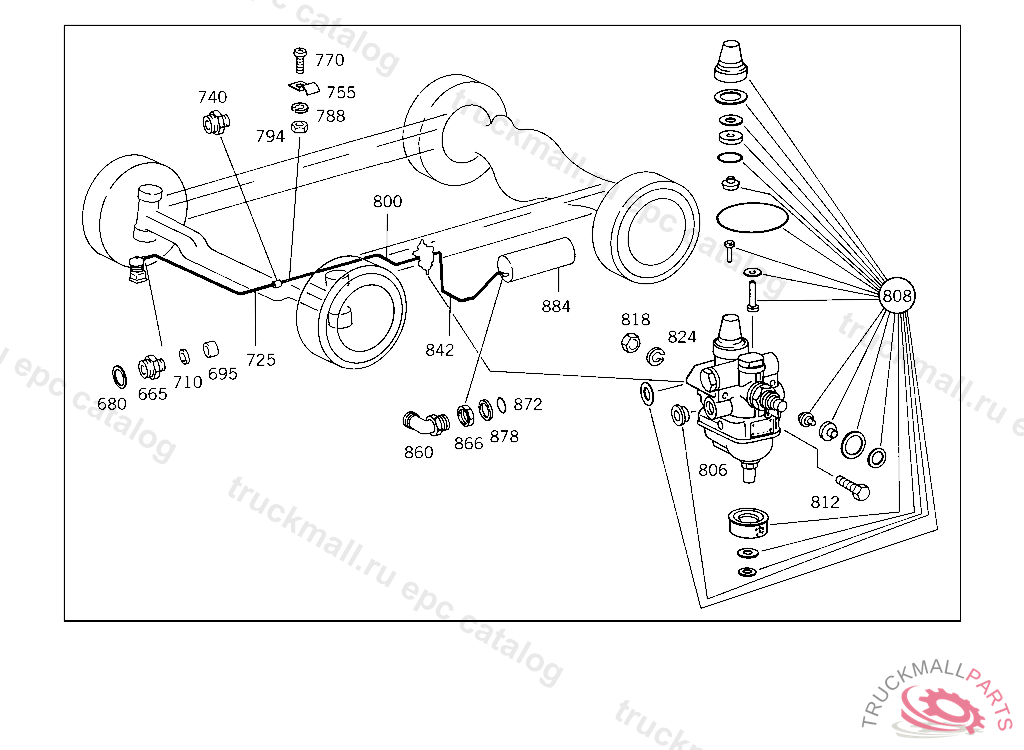

665
DOUBLE FITTING ,A 027954
695
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
710
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
725
LINE FROM AIR COMPRESSOR TO DOUBLE FITTING
740
DOUBLE FITTING , Replaced By: A3414290901
740
LINE
755
CLAMP , Replaced By: A3049950120
755
CLAMP
770
SCREW CABLE HARNESS TO BRACKET M 6X20
788
LOCK WASHER CLAMP TO BRACKET
794
NUT BALL PIVOT TO LEVER
800
LINE FROM DOUBLE FITTING TO PRESSURE REGULATOR
806
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION
808
REPAIR KIT , FROM 626
812
SCREW
818
NUT LEVER TO SHIFTING SHAFT
824
LOCK WASHER
842
LINE FROM PRESSURE REGULATOR TO AIR RESERVOIR
860
ELBOW FITTING
866
NUT CHECK VALVE TO AIR RESERVOIR
872
O-RING CHECK VALVE TO AIR RESERVOIR
878
THRUST RING CHECK VALVE TO AIR RESERVOIR
878
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
884
RESERVOIR AIR RESERVOIR
999
WASHERTO 004 094 61 02
999
SEAL RINGTO 431 094 70 01
999
SEAL RINGTO 431 094 70 01
999
WASHERTO 431 094 70 01
999
SEAL RINGTO 431 094 70 01
999
SCREWTO 004 094 61 02
999
SCREWTO 431 094 70 01
999
FILTER BOWLTO 004 094 61 02
999
FILTER BOWLTO 431 094 70 01
999
FILTER BOWLTO 431 094 70 01
999
GASKET INSIDE
999
GASKET OUTSIDE
999
FILTER ELEMENTTO 004 094 61 02
999
GASKETTO 004 094 61 02
999
SPINDLE THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING,K 062600
999
LOCKTO 002 250 67 04
999
BRACKET , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999 AXLE BORE IN PRESSURE PLATE TO BE REAMED FROM 8.0MM TO 8.1MM, Replaced By: A0002522914, +001A0002526413, +001A0002523816, +001A0002524216, +040A0002520018, +001A1249945241
999
NUT , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
999
BRACKET , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
999
SCREW HOUSING TO PRESSURE PLATE,393781
999
SPINDLE , Replaced By: A0002523816, +001A1249945241
999
PROTECTIVE WRAPPER LICENSE DOCUMENTS
999
SEAL CONE
999
CLAMP , Replaced By: A0019978390
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
FILTER ELEMENTTO 431 094 70 01
999
REPAIR KIT , UP TO 625
999
CONNECTOR
999
RUBBER MOUNTING
999
CLAMP , Replaced By: A3049950120
999
BOOT
999
COVER CYLINDER HEAD COVER
999
COVER THERMOSTAT HOUSING
999
HOSE FROM THERMOSTAT TO RADIATOR
999
HOSE FROM RADIATOR TO WATER PUMP
999
INTERMEDIATE PIECE RETURN LINE
999
INTAKE PIPE
999
COVER CYLINDER HEAD COVER
999
COVER THERMOSTAT HOUSING
999
SHIM SPRING STOP TO FRAME BOTTOM SIDE
999
PLATE LEFT FRONT SPRING
999
PLATE RIGHT FRONT SPRING
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE , Replaced By: A3415017282
999
HOSE FROM RADIATOR TO WATER PUMP
999
FENDER RIGHT
999
END PLATE RIGHT
999
RUBBER PIECE CYLINDER HEAD COVER
999
RUBBER PIECE THERMOSTAT HOUSING
999
LINE RETURN LINE
999
COVERING , Replaced By: A3415217024
999
ELECTRIC CABLE , Replaced By: A3415408427
999
CLAMP
999
CLAMP HOSE 70-90X13 MM
999
SCREW BRAKE LINE TO SIDE AND CROSS MEMBERS M 5X10
999
LOCK RING
999
SCREW MASTER CYLINDER TO BRACKET
999
SCREW
999
SCREW , Replaced By: N304017006020
999
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
999
SEAL RING INJECTION PUMP
999
ANGLE JOINT PULL ROD
999
BALL SOCKET CONTROL
999
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
SLIP RING. SEAL RING AT DISTRIBUTOR
999
THRUST RING , Replaced By: N915065018101
999
LOOM TIE , Replaced By: A0029978790
999
PULL ROD FROM ACCELERATOR CONTROL BRACKET TO REVERSING LEVER 6X290X30/30, TO BE ADAPTED DURING ASSEMBLYD 232777
999
LOCK WASHER LINE MOUNTING
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
999
BANJO UNION FUEL LINE TO FUEL TANK
999
NUT. UNION NUT RETURN
999
HOLLOW SCREW
999
SEAL RING LINE CONNECTION
999
THRUST RING BUTT SCREW CONNECTION
999
CLAMP , Replaced By: N000000000671
999
CLAMP , Replaced By: N000000000674
