Поз.
Артикул
Описание

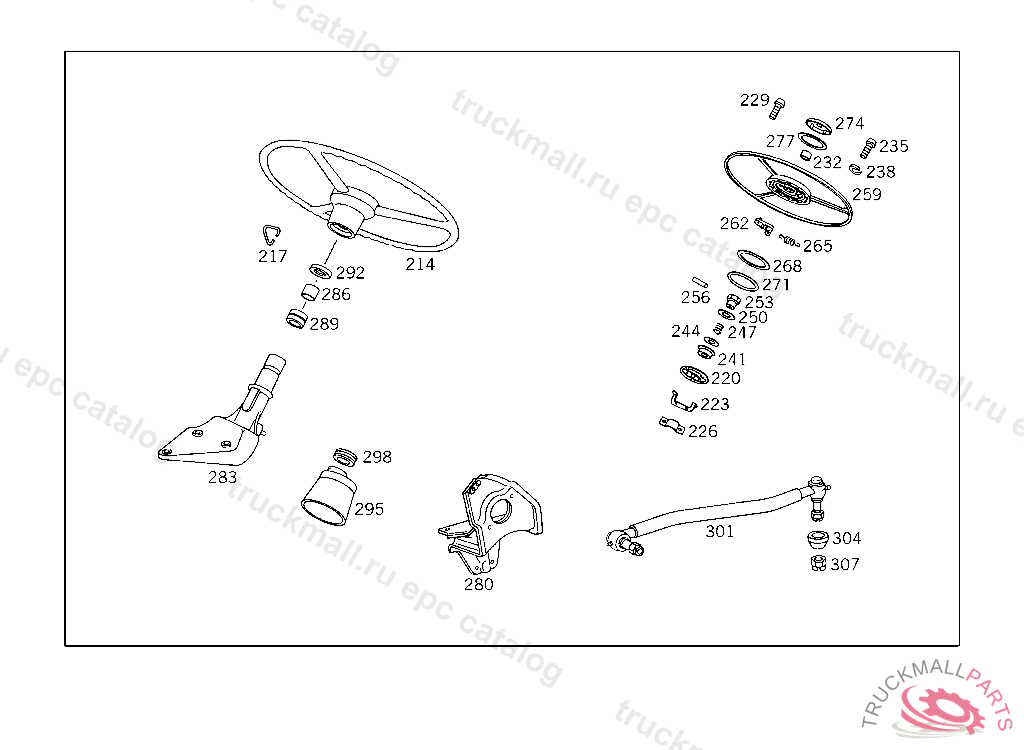

214
STEERING WHEEL
217
ORNAMENTAL RING
220
CONTACT PLATE
223
BRACKET
226
CLAMP
229
SCREW CONTACT PLATE TO STEERING WHEEL
232
SPACER TUBE CONTACT PLATE TO STEERING WHEEL
235
SCREW CONTACT PLATE TO STEERING WHEEL
238
LOCK WASHER CONTACT PLATE TO STEERING WHEEL
241
KONTAKTTELLER. CONTACT CUP
244
ISOLIERPLATTE. INSULATING PLATE
247
SPRING
250
KONTAKTSCHEIBE. CONTACT RING
253
NUT
256
PIN
259
SIGNAL RING
262
RATCHET LEVER. LEVER
265
RELEASE SPRING. SPRING
268
THRUST WASHER
271
RING
274
FIRMENZEICHEN AM LENKRAD. BADGE
277
GUMMISCHEIBE. SEAL RING
280
STEERING BRACKET
283
BRACKET , Replaced By: A3414600037
283
BEARING
286
BUSHING ,582084
289
RING
292
COVER
295
BOOT STEERING COLUMN TUBE THRU CAB FLOOR
298
SEAL RING STEERING COLUMN TUBE THRU CAB FLOOR,D 591979
301
DRAG LINK
304
BOOT , Replaced By: A0003300285
304
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
307
NUT DRAG LINK TO LEVER
999
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
SCREW PLUG , Replaced By: A3029970035
999
SCREW SPARE WHEEL CARRIER
999
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X28
999
HEX. NUT M 4 DIN 934-5 S. NUT FUEL CONSUMPTION DISPLAY
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
HEX. HEAD. SCREW BEARING BRACKET TO TRANSMISSION
999
SNAP RING STEERING SHAFT BEARING IN COVER, FOR L.H.D. UP TO CHASSIS 422483 FROM CHASSIS SEE SPARE PARTS LIST 814
999
GREASE NIPPLE INTERMEDIATE LEVER
999
RIVET12X28 MM
999
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
999
NUT SUPPORT TO SIDE MEMBER
999
DUST CAP
999
RIVET , Replaced By: N910005012001
999
RIVET , Replaced By: N910005012020
999
NEEDLE BEARING , 005,006,007,011,012,021,031,106,108 FROM CHASSIS A 011991
999
SEAL RING
999
SEAL RING
999
BEARING BUSHING O.D., 28.024 BIS 28.036 MM
999
UNIVERSAL JOINT CROSS , UP TO IDENT NO. 622785 EXCEPT FOR 500001-599999
999
SEAL HOLDER , UP TO IDENT NO. 622785 EXCEPT FOR 500001-599999
999
RUBBER RING , UP TO IDENT NO. 622785 EXCEPT FOR 500001-599999
999
SNAP RING1.50 MM, 032,033,040,041: UP TO CHASSIS 039639 132,133,140,141: UP TO CHASSIS 000510
999
SNAP RING1.55 MM, 032,033,040,041: UP TO CHASSIS 039639 132,133,140,141: UP TO CHASSIS 000510
999
SNAP RING1.60 MM, 032,033,040,041: UP TO CHASSIS 039639 132,133,140,141: UP TO CHASSIS 000510
999
SNAP RING1.65 MM, 032,033,040,041: UP TO CHASSIS 039639 132,133,140,141: UP TO CHASSIS 000510
999
SNAP RING1.70 MM, 032,033,040,041: UP TO CHASSIS 039639 132,133,140,141: UP TO CHASSIS 000510
999
STEERG. WORM SECTOR SHAFT , Replaced By: A3214601111
999
BALL CUP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3214620537
999
NUT ,297463
999
BRACKET
999
PITMAN ARM , Replaced By: A3414630001
999
UNIVERSAL JOINT , Replaced By: A3164600157
999
STEERING BOX COVER , Replaced By: A3214600414, +001A0029900251
999
STEERING WORM , Replaced By: A3274602208
999
STEERING BOX ASSEMBLY , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A3274606501
999
STEERING SHAFT BOTTOM,A 061071
999
UNIVERSAL JOINT
999
BOOT STEERING COLUMN TO CAB
999
SCREW BRACKET TO CONTACT PLATE M 4X8,A 061071
999
SCREW DIODE CASE
999
COTTER PIN , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
COTTER PIN4X32, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
COTTER PIN6.3X63 MM
