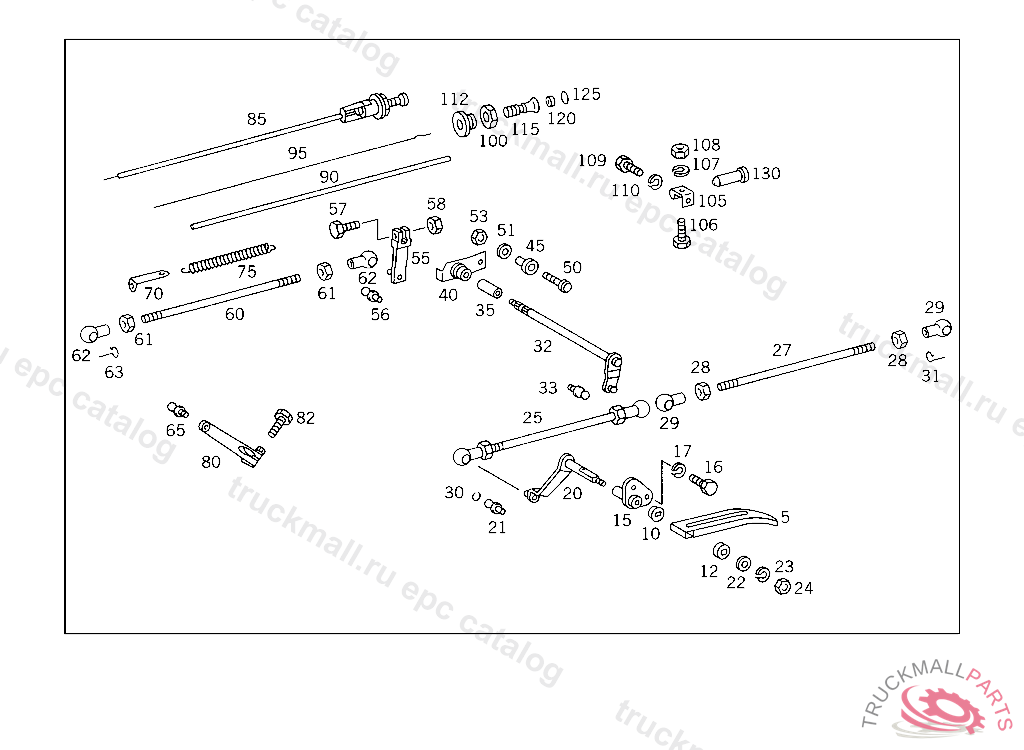

Поз.
Артикул
Описание
5
PLATE ACCELERATOR PEDAL
5
PEDAL PLATE , Replaced By: A3523000802
10
GUARD PLATE ACCELERATOR PEDAL BEARING
12
COVERING ACCELERATOR PEDAL BEARING
15
BEARING TUBE ACCELERATOR PEDAL CONTROL,GB718835
15
BEARING TUBE ACCELERATOR PEDAL CONTROL
16
SCREW IGNITION COIL TO BRACKET
17
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEMGB718835
21
BALL PIVOT , Replaced By: A3129910120
22
WASHER CLUTCH LINING WEAR INDICATOR
23
LOCK WASHER
24
NUT LEVER TO SHIFTING SHAFT
25
PULL ROD
27
PULL ROD
28
NUT BALL PIVOT TO LEVER
29
BALL SOCKET AT CONTROL LEVER
30
SNAP RING SPRING-LOADED PUSH ROD
31
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
32
SHAFT
33
BALL PIVOT , Replaced By: A3129910120
35
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
35
SPACER TUBE , Replaced By: A3210720053
40
LEVER
45
BUSHING
50
SCREW
51
WASHER
53
HEX. NUT M 4 DIN 934-5 S. NUT FUEL CONSUMPTION DISPLAY
55
LEVER ACCELERATOR CONTROL
56
BALL PIVOT , Replaced By: A3129910120
57
SCREW
58
NUT BALL PIVOT TO LEVER
60
PULL ROD
60
ROD , Replaced By: N900331006024
61
NUT BALL PIVOT TO LEVER
62
BALL SOCKET AT CONTROL LEVER
62
PART NAME MISSING , Replaced By: N071805010202
62
BALL SOCKET PULL ROD TO LEVER
63
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
65
BALL PIVOT ACCELERATOR PEDAL,4 859026
65
BALL PIVOT
70
BRACKET
75
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
80
LEVER , Replaced By: A0000744927
80
LEVER
82
SCREW CONNECTOR TO TRANSMISSION
85
KNOB , Replaced By: A3413007207
85
KNOB , Replaced By: A3413007207
85
KNOB
90
TUBETO 323 300 00 07
95
WIRETO 323 300 00 07
100
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
105
CLAMP
106
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
107
LOCK WASHER CLAMP TO BRACKET
108
NUT , Replaced By: N304032006004
109
SCREWM 6X12
110
LOCK WASHER CLAMP TO BRACKET
112
THREADED UNIONTO 323 300 00 07
115
KNOBTO 323 300 00 07
120
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
125
COVERTO 323 300 00 07
130
GROMMET
130
GROMMET , Replaced By: A3453027091
999
PART NAME MISSING , Replaced By: N071805010202
999
BALL PIVOT LEVER
