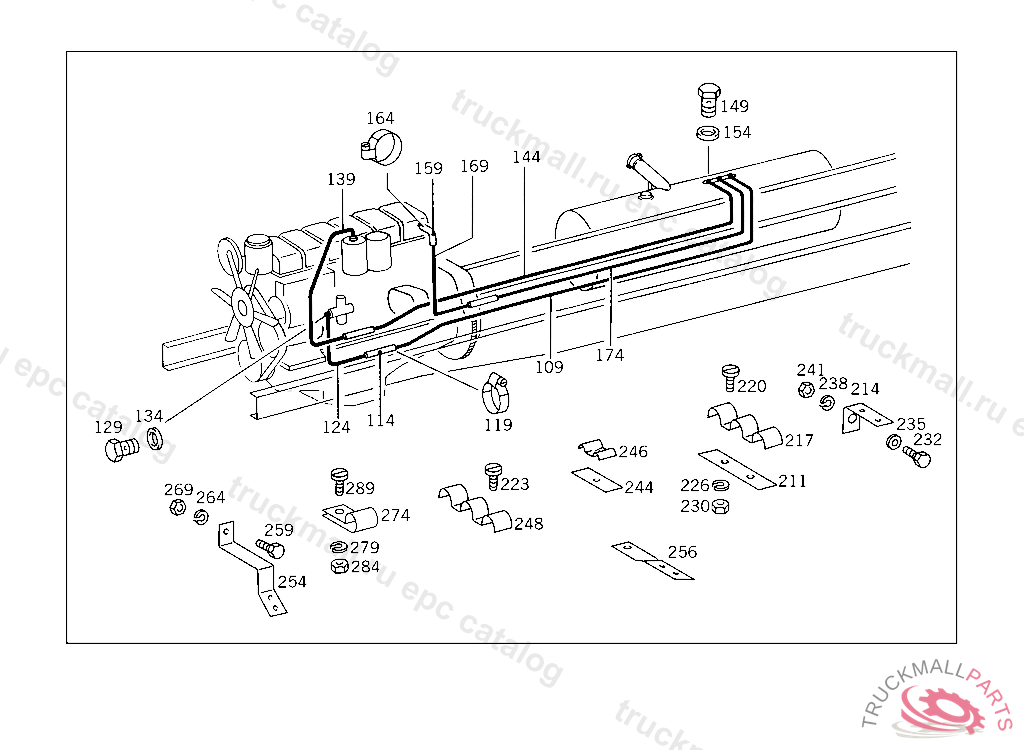

OF 1114 BIS FGST 000292 OF 1214 AB FGST 000293 - 341.066 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
129
HOLLOW SCREW
134
SEAL RING FUEL LINE TO FEED PUMP
149
HOLLOW SCREW
154
SEAL RING FUEL LINE TO FEED PUMP
248
CLAMP LINE MOUNTING
256
BRACKET FUEL LINE
259
SCREW COMPRESSED AIR ELBOW
264
LOCK WASHER
269
NUT LEVER TO SHIFTING SHAFT
274
CLAMP LINE MOUNTING
279
LOCK WASHER CLAMP TO BRACKET
284
NUT BALL PIVOT TO LEVER
289
SCREW FUEL LINE TO BRACKET
999
LOOM TIE , Replaced By: A0019978490
