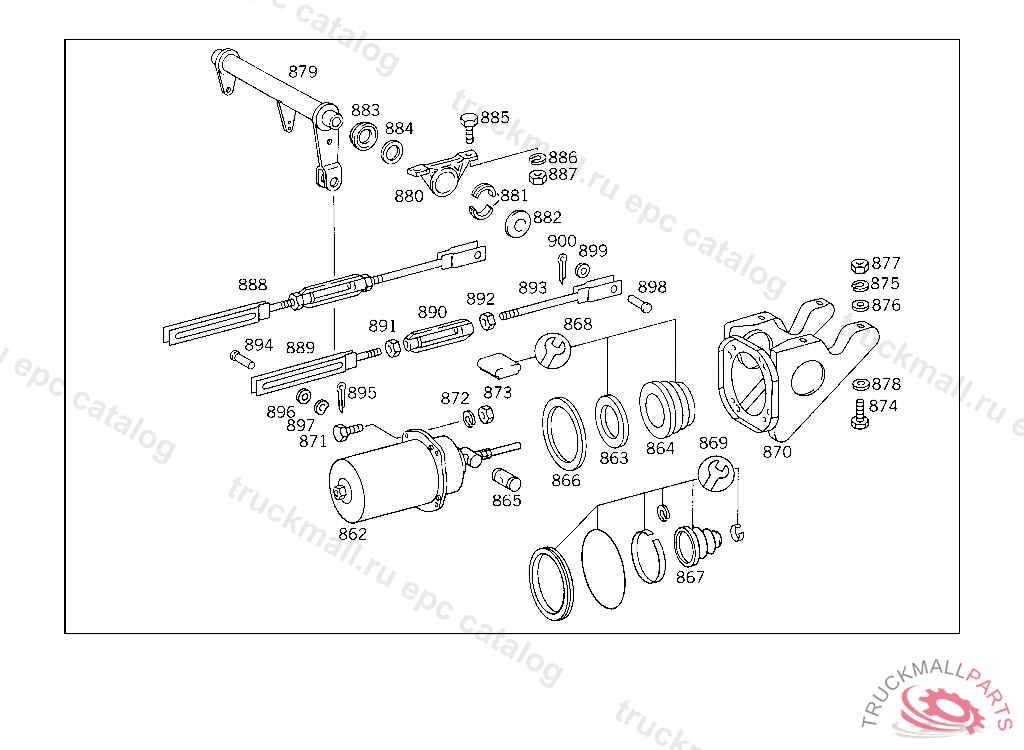

Поз.
Артикул
Описание
862
BRAKE CYLINDERWABCO
862
BRAKE CYLINDERBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
862
BRAKE CYLINDER SPRING LOAD ACCUMULATOR CYLINDER WABCO
863
FILTER BOTTOMTO 000 431 24 14
864
CUPTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 724
864
CUP , WITH BOSCH CHARACTERISTIC NUMBER 723, Replaced By: A0004312786, +001A0004318583
864
CUP , Replaced By: A0004312786
865
PISTONTO 000 431 21 14,BOSCH
866
SEAL RINGTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 723
866
SEAL RINGTO 000 431 24 14
867
PROTECTIVE CAPTO 000 431 24 14
868
REPAIR KITTO 345 431 72 14,98 345 431 02 14, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
868
REPAIR KIT , Replaced By: A0034201724
868
PROTECTIVE CAP , Replaced By: A0004301808
869
REPAIR KIT , Replaced By: A0004301708
869
REPAIR KIT SPRING LOAD ACCUMULATOR CYLINDER TO 345 431 72 14
869
REPAIR KITTO 000 431 56 14,001 431 13 14,WABCO
870
CONSOLE SPRING LOAD ACCUMULATOR CYLINDER
871
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
872
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
873
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
874
SCREW , Replaced By: N304017010002
875
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
876
WASHER , Replaced By: N000125010532
877
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
878
WASHER , Replaced By: A4219905440
879
BRAKE INTERMEDIATE SHAFT
880
BEARING BRACKET
881
SPHERICAL PIECE , Replaced By: A3025860242
882
EXPANSION PLUG
883
SEAL HOLDER
884
SEAL RING
885
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
886
LOCK WASHER BRACKET TO SUPPORTING ARM
887
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
888
ROD FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
889
ROD FROM BRAKE SHAFT TO BRAKE LEVER
890
NUT FROM BRAKE SHAFT TO BRAKE LEVER
891
NUT STRAP TO SUPPORT
892
NUT STRAP TO SUPPORT,5 149419
893
ROD FROM DOUBLE LEVER TO REAR AXLE II, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
894
PIN PULL ROD TO BRAKE INTERMEDIATE LEVER
895
COTTER PIN
896
WASHER
897
LOCK RING. SPRING WASHER
898
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
899
WASHER
900
COTTER PIN
999
DIAPHRAGM , Replaced By: A0004290745
999
SLIDETO 000 431 50 14,000 431 24 14
999
CUP , Replaced By: A0015864342
