Поз.
Артикул
Описание

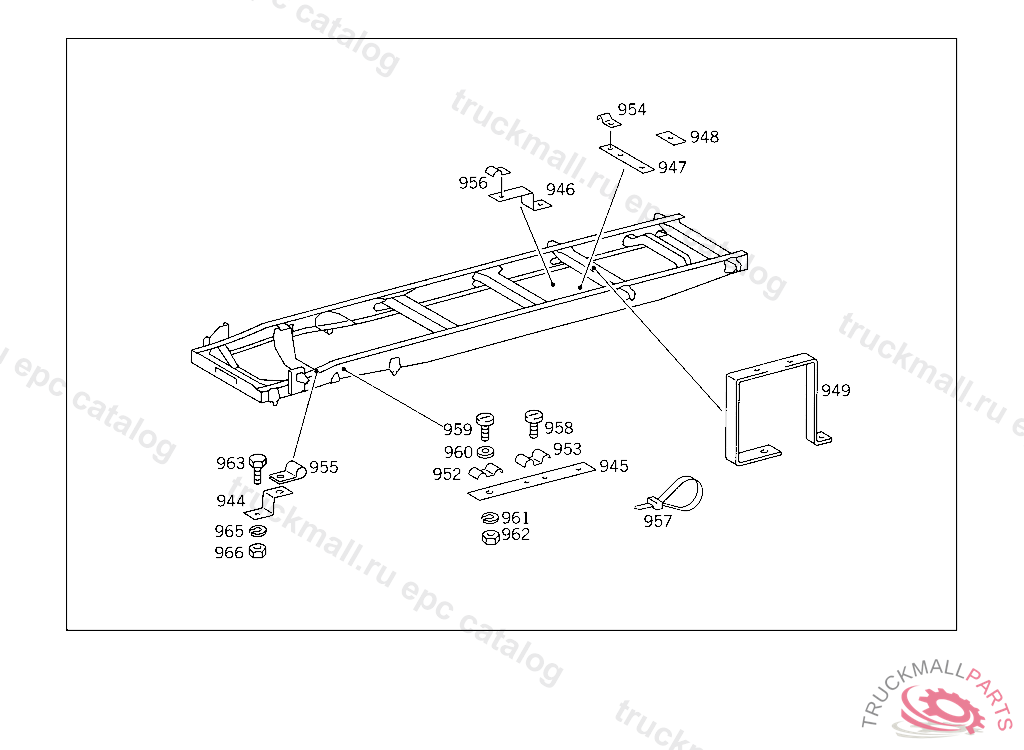

944
BRACKET COMPRESSED AIR LINE MOUNTING, USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
946
BRACKET COMPRESSED AIR LINE MOUNTING
947
BRACKET COMPRESSED AIR LINE TO CROSS MEMBER "3,4", USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
948
BRACKET COMPRESSED AIR LINE TO CROSS MEMBER "3,4", USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
949
BRACKET COMPRESSED AIR LINE MOUNTING, USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
952
CLAMP
953
CLAMP COMPRESSED AIR LINE TO CROSS MEMBER NO.3, USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
954
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES, USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
955
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
956
CLAMP , Replaced By: A1109950401
957
LOOM TIE , Replaced By: A0019978390
958
SCREW PROTECTION PLATE TO BRACKET
959
SCREW COMPRESSED AIR LINE MOUNTING M 6X25, USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
960
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
961
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
962
NUT BALL PIVOT TO LEVER
963
SCREW BEARING BRACKET TO CROSS MEMBER
965
LOCK WASHER , Replaced By: N912004010102
966
NUT BRACKET TO RETARDER
999
DIAPHRAGM , Replaced By: A0004290745
999
SLIDETO 000 431 50 14,000 431 24 14
999
CUP , Replaced By: A0015864342
