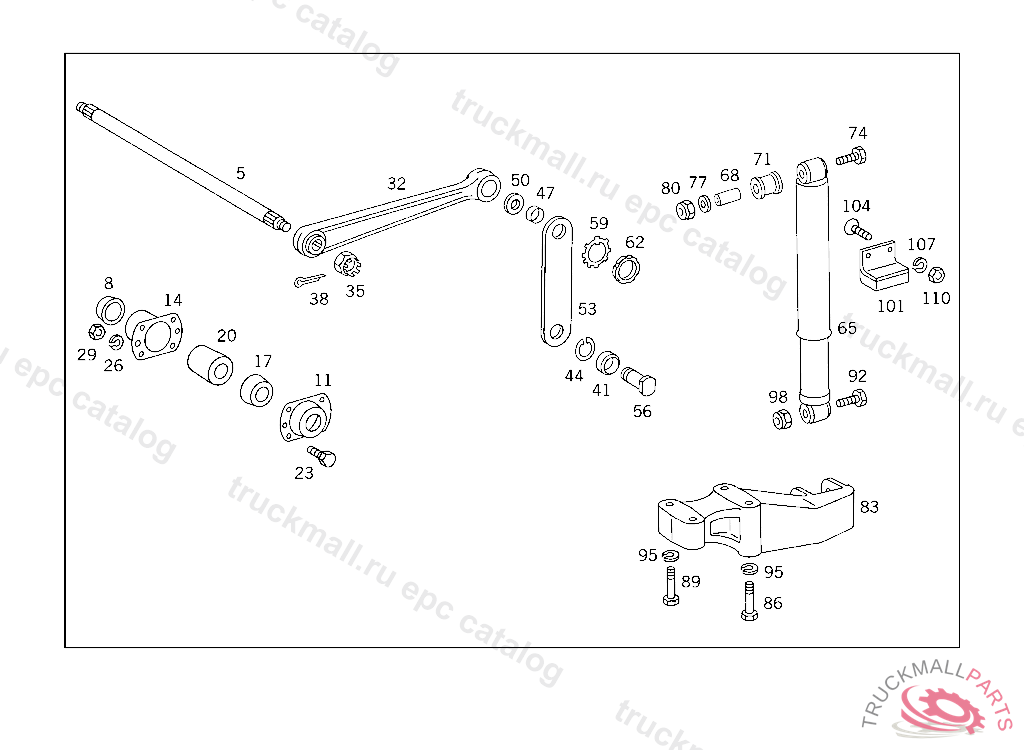

Поз.
Артикул
Описание
5
TORSION BAR REAR AXLE
5
TORSION BAR
8
SPACER RING REAR AXLE STABILIZER
8
SPACER RING REAR AXLE STABILIZER
11
HOUSING FRONT AXLE STABILIZER
14
HOUSING FRONT AXLE STABILIZER
17
RUBBER MOUNTING FRONT AXLE STABILIZER
20
RUBBER MOUNTING FRONT AXLE STABILIZER
23
SCREW BRACKET TO FRAME M 10X28
26
LOCK WASHER , Replaced By: N912004010102
29
NUT BRACKET TO FRAME
32
LEVER STABILIZER
32
LEVER TORSION BAR,REAR
35
NUT LEVER TO TORSION BAR
38
COTTER PIN HOOD FASTENER,RB037929
41
JOINT BEARING TORSION BAR TO LINK,5 903513
41
JOINT BEARING TORSION BAR TO LINK,5 903513
44
LOCK RING TORSION BAR TO LINK,5 903513
47
SPACER TUBE LINK TO BEARING BRACKET,5 903513
50
SEAL RING LINK TO BEARING BRACKET,5 903513
53
LINK REAR AXLE STABILIZER
56
PIN TORSION BAR TO BEARING BRACKET,D 005410
59
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
62
NUT TORSION BAR TO BEARING BRACKET,5 904660
65
65
SHOCK ABSORBER ,KB860814
68
BUSHING , Replaced By: A0003230553
71
RUBBER MOUNTING004 326 01 00
74
SCREW SHOCK ABSORBER TO CROSS MEMBER
74
SCREW ,511930, Replaced By: A3459908601, +002N913004020000
77
WASHER SHOCK ABSORBER TO CROSS MEMBER
80
NUT CROSS MEMBER TO REINFORCEMENT
83
BRACKET RIGHT
83
BRACKET LEFT
86
SCREW , Replaced By: N308676014013
89
SCREW BRACKET TO SPRING SADDLE
92
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
92
SCREW SHOCK ABSORBER TO BRACKET, 727680
95
LOCK WASHER SUPPORT TO SIDE MEMBER
98
NUT CROSS MEMBER TO REINFORCEMENT
101
RUBBER MOUNTING
104
SCREW RUBBER BUFFER TO FRAME
107
LOCK WASHER , Replaced By: N912004010102
110
NUT BRACKET TO FRAME
