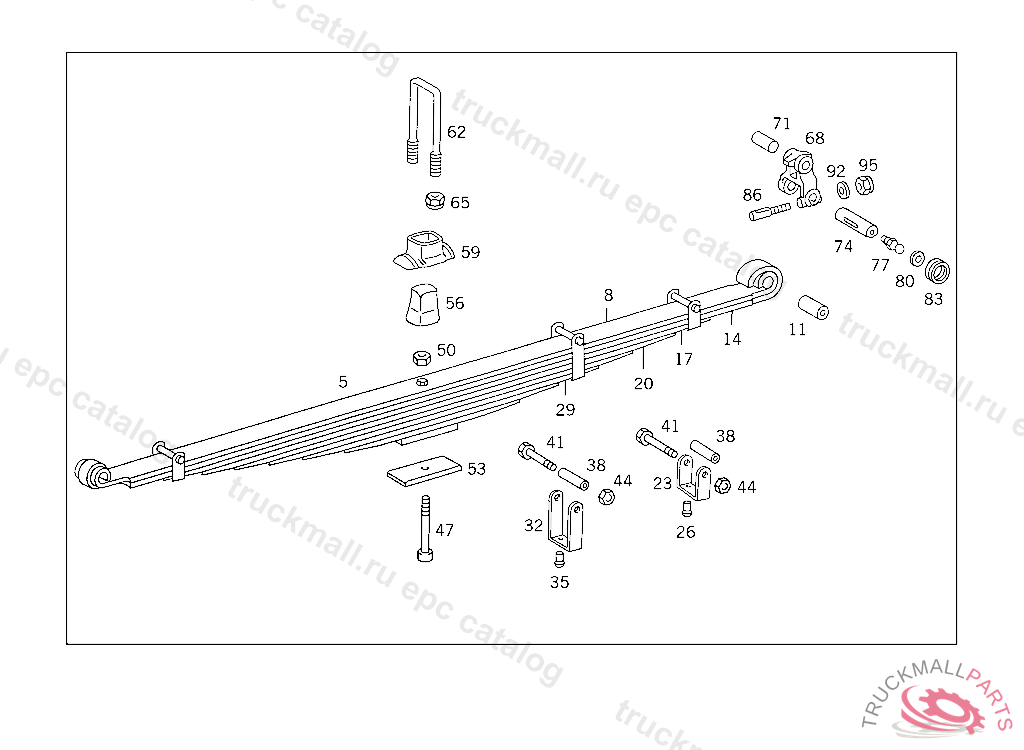

Поз.
Артикул
Описание
5
FRONT SPRING 10-LEAF,A 072935
8
SPRING LEAFNO.1,TO 360 320 01 02
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2,TO 360 320 01 02
17
SPRING LEAFNO.3,A 072935
20
SPRING LEAF ,A 072935
23
SPRING CLAMP
26
RIVET ,A 006846
29
SPRING LEAF ,A 072935
32
SPRING CLAMP
35
RIVET ,A 006846
38
SPACER TUBE , Replaced By: A0003213253
41
SCREWM 8X100
44
NUT TAIL LAMP TO BRACKET
47
SPRING BOLT ,A 072935
50
NUT LEAF SPRING
53
SHIM
56
HELPER SPRING ,6951998 0000014 168249, Replaced By: A3183240008, +001A3143310727, +001A3143310827
59
PLATE FRONT SPRINGS TO FRONT AXLE
62
U-BOLT FRONT SPRINGS TO FRONT AXLE 220 MM
62
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793511025, +001A6793250031
65
NUT , Replaced By: N910113018004
68
SHACKLE FRONT SPRING SUSPENSION,REAR
71
BUSHING
71
BUSHING
74
SHACKLE PIN FRONT SPRING TO FRONT SPRING FRONT BRACKET
74
SHACKLE PIN , Replaced By: A3923227030
74
SHACKLE PIN , Replaced By: A3923227030
77
GREASE NIPPLE PROTECTIVE TUBE
77
GREASE NIPPLE
80
WASHER AS REQUIRED 4.20 MM
80
WASHER AS REQUIRED 4.00 MM
83
SEAL RING SPRING SUSPENSION
86
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
92
WASHER , Replaced By: N000125010532
95
NUT ,A 006846
