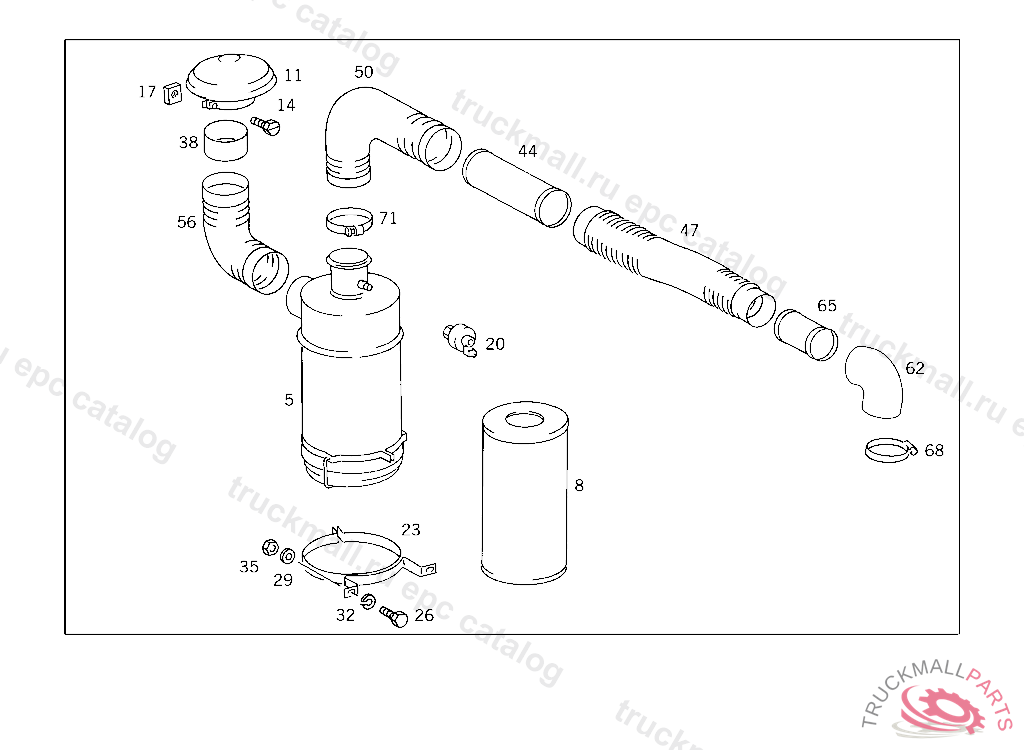

OF 1214 - 341.068 - 52 CHASSIS SHEET METAL
Поз.
Артикул
Описание
5
AIR CLEANER LESS BRACKET
8
FILTER ELEMENTTO 394 094 70 01
11
COVER
11
COVER
14
HEX.-HD. SCREW. SCREW
17
NUT
20
VACUUM BOX
23
BRACKET AIR CLEANER
26
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
29
WASHER GROUND CABLE
32
LOCK WASHER , Replaced By: N912004010102
35
NUT BRACKET TO FRAME
38
AIR INTAKE PIPE ,A 081820
44
AIR INTAKE PIPE
47
GROMMET ,A 081187
50
HOSE
56
HOSE RAIN DEFLECTOR TO DRY AIR CLEANER
62
HOSE
62
HOSE
65
AIR INTAKE PIPE
68
CLAMP AS REQUIRED
68
LOOM TIE80-95 MM
71
CLAMP
71
LOOM TIE
999
HOSE , Replaced By: A3450947182
