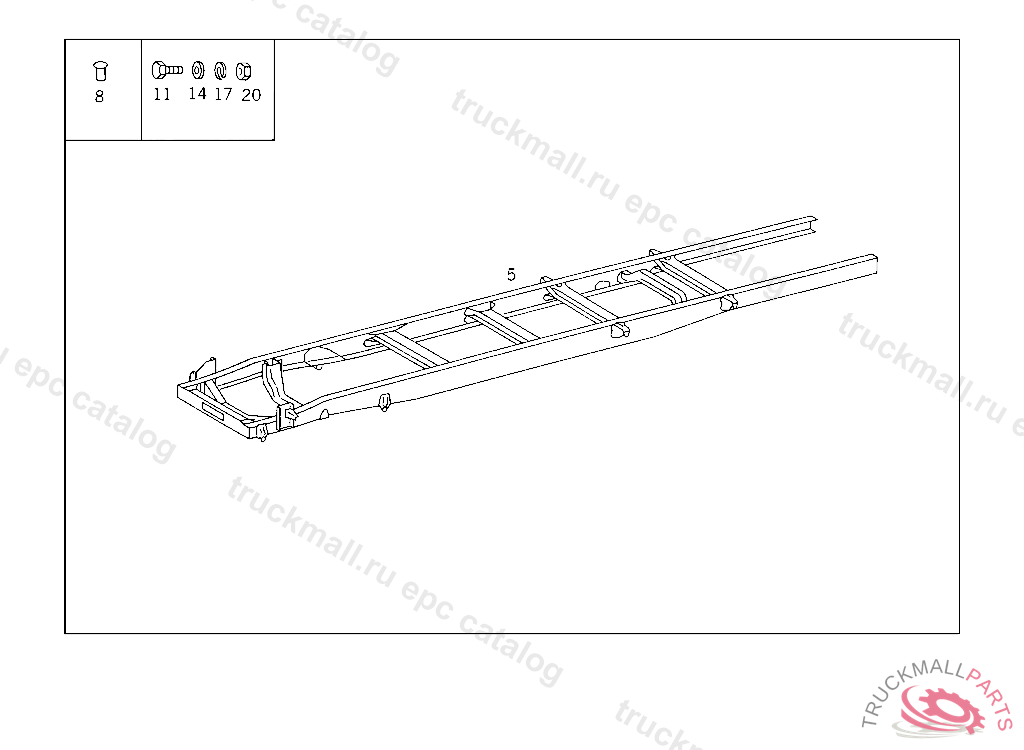

OF 1214 - 341.068 - 31 FRAME
Поз.
Артикул
Описание
5
8
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
8
RIVET14X45 MM
8
RIVET10X30 MM
8
RIVET12X42 MM
8
RIVET12X38 MM
8
RIVET
8
RIVET10X24 MM
8
RIVET10X34 MM
8
RIVET12X28 MM
8
RIVET CONSOLE TO SIDE MEMBER
11
SCREW , Replaced By: N304017010002
14
WASHER , Replaced By: N000125010532
17
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
20
NUT BRACKET TO FRAME
