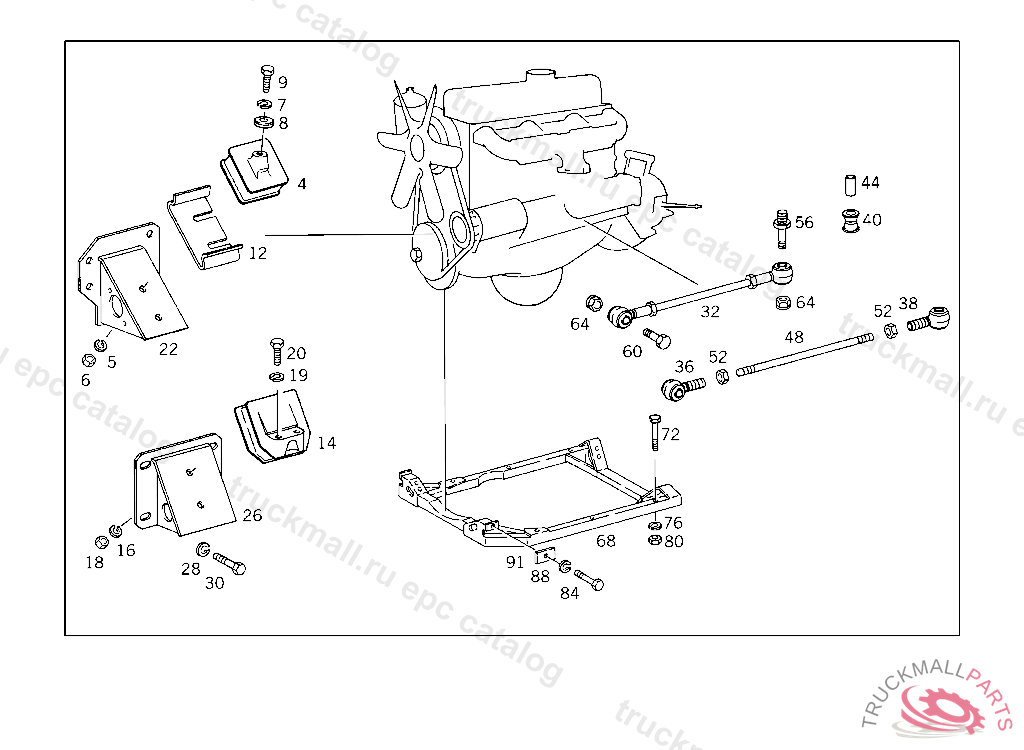

Поз.
Артикул
Описание
4
RUBBER MOUNTING , 695022, Replaced By: A3522400417, +002A3529902440, +002N000960016014
5
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
6
NUT STRAP TO SUPPORT
7
LOCK WASHER SUPPORT TO SIDE MEMBER
8
WASHER RUBBER MOUNTING TO FRONT CROSS MEMBER, UP TO IDENT NO. 695022 EXCEPT FOR,500001-599999
9
SCREW REAR SPRING BRACKET TO SIDE MEMBER
12
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
14
RUBBER MOUNTING
16
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
18
NUT STRAP TO SUPPORT
19
LOCK WASHER SUPPORT TO SIDE MEMBER
20
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
20
SCREW , Replaced By: A9429901304
22
CONSOLE
26
CONSOLE
28
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
30
SCREW CONSOLE TO SIDE MEMBER
32
ROD
32
ROD ENGINE TO REAR RUBBER MOUNTING
36
ROD END
36
ROD END
38
ROD END
40
BUSHING
44
BUSHING
48
ROD
52
NUT ARTICULATED ROD TO LEVER
56
PIVOT PIN , Replaced By: A3452427020
56
PIVOT PIN
60
STUD ROD END TO BRACKET AT SUBSTRUCTURE AND TO BELL HOUSING
64
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
68
72
SCREW LEAF SPRING TO CONSOLE
76
LOCK WASHER BRACKET TO SUPPORTING ARM
80
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
84
88
LOCK WASHER RAIL TO SUBSTRUCTURE
91
999
999
999
999
999
999
CONSOLE
999
RUBBER MOUNTING
999
WASHER IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 360 990 18 40
999
RUBBER MOUNTING ENGINE FRONT SUSPENSION
999
LOCK
999
COTTER PINROCKINGER TYP 260 G140
999
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
