Поз.
Артикул
Описание

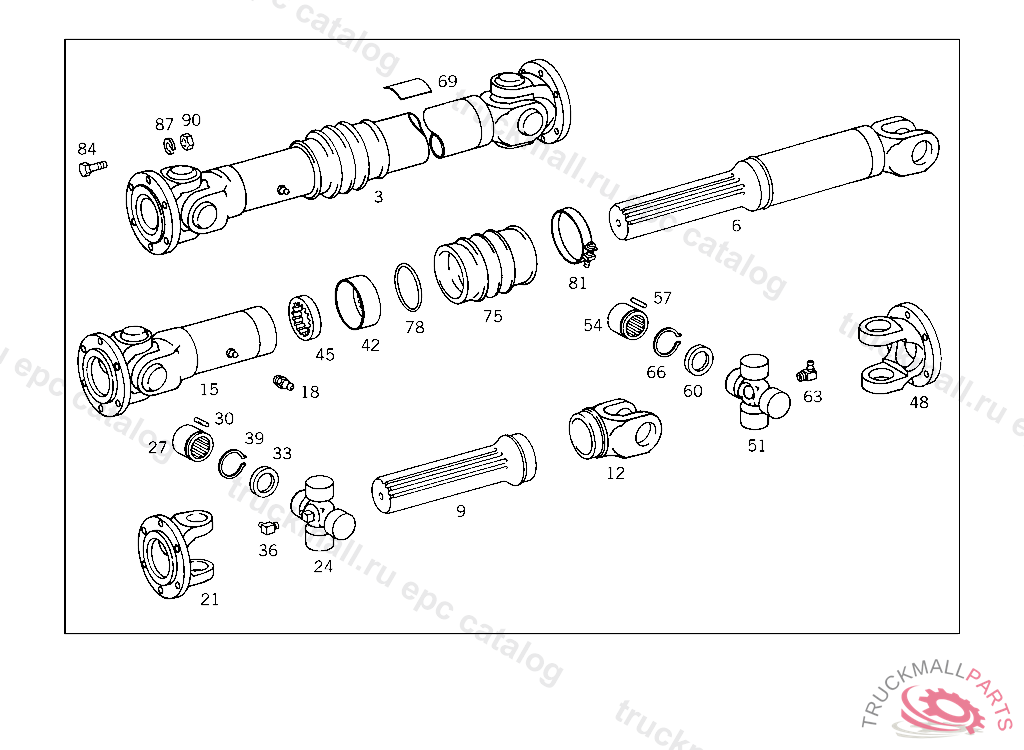

3
6
9
END PIECE
12
15
UNIVERSAL JOINT YOKE , 005 FROM CHASSIS A 008022,006 FROM CHASSIS A 008012,007 FROM CHASSIS A 008032,011 FROM CHASSIS A 007996,012 FROM CHASSIS A 007 992,014 FROM CHASSIS A 002945 016 FROM CHASSIS A 002940,018 FROM CHASSIS A 003198,021 FROM CHASSIS A 007997
18
GREASE NIPPLE INTERMEDIATE LEVER
21
DRIVE FLANGE
24
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
27
BEARING BUSHING
30
NEEDLE , Replaced By: A3189810287
33
EXPANSION PLUG
36
GREASE NIPPLE
36
GREASE NIPPLE
39
SNAP RING2.650 MM
39
SNAP RING2.500 MM
39
SNAP RING2.600 MM
39
SNAP RING2.550 MM
39
SNAP RING2.750 MM
39
SNAP RING2.700 MM
42
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
45
SEAL RING , PROPELLER SHAFT WITH BOOT
48
DRIVE FLANGE
51
UNIVERSAL JOINT CROSS , Replaced By: A3854100231
54
BEARING BUSHING
57
NEEDLE , Replaced By: A3189810287
60
EXPANSION PLUG
63
GREASE NIPPLE
63
GREASE NIPPLE
66
SNAP RING2.650 MM
66
SNAP RING2.500 MM
66
SNAP RING2.600 MM
66
SNAP RING2.550 MM
66
SNAP RING2.750 MM
66
SNAP RING2.700 MM
69
BALANCING PLATE AS REQUIRED 20 MM
69
BALANCING PLATE AS REQUIRED 60 MM
69
BALANCING PLATE AS REQUIRED 95 MM
69
BALANCING PLATE AS REQUIRED 160 MM
69
BALANCING PLATE AS REQUIRED 120 MM
69
BALANCING PLATE AS REQUIRED 190 MM
75
BOOT
75
BOOT
78
WIRE RING , WITH BOOT
81
CLAMP , WITH BOOT
84
SCREW , Replaced By: A3539900001
87
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
90
NUT , Replaced By: N308673010001
999
NEEDLE , Replaced By: A0009815087
999
UNIVERSAL JOINT CROSS , Replaced By: A3024100031
999
BEARING BUSHING , 005 UP TO CHASSIS A 008021,006 UP TO CHASSIS A 008011,007 UP TO CHASSIS A 008031,011 UP TO CHASSIS A 007995,012 UP TO CHASSIS A 007991,014 UP TO CHASSIS A 002944 016 UP TO CHASSIS A 002939,018 UP TO CHASSIS A 003197,021 UP TO CHASSIS A 007996
999
DRIVE FLANGE , 005 UP TO CHASSIS A 008021,006 UP TO CHASSIS A 008011,007 UP TO CHASSIS A 008031,011 UP TO CHASSIS A 007995,012 UP TO CHASSIS A 007991,014 UP TO CHASSIS A 002944 016 UP TO CHASSIS A 002939,018 UP TO CHASSIS A 003197,021 UP TO CHASSIS A 007996
999
999
BEARING BUSHING , Replaced By: A3224100542
999
999
999
999
999
999
999
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
