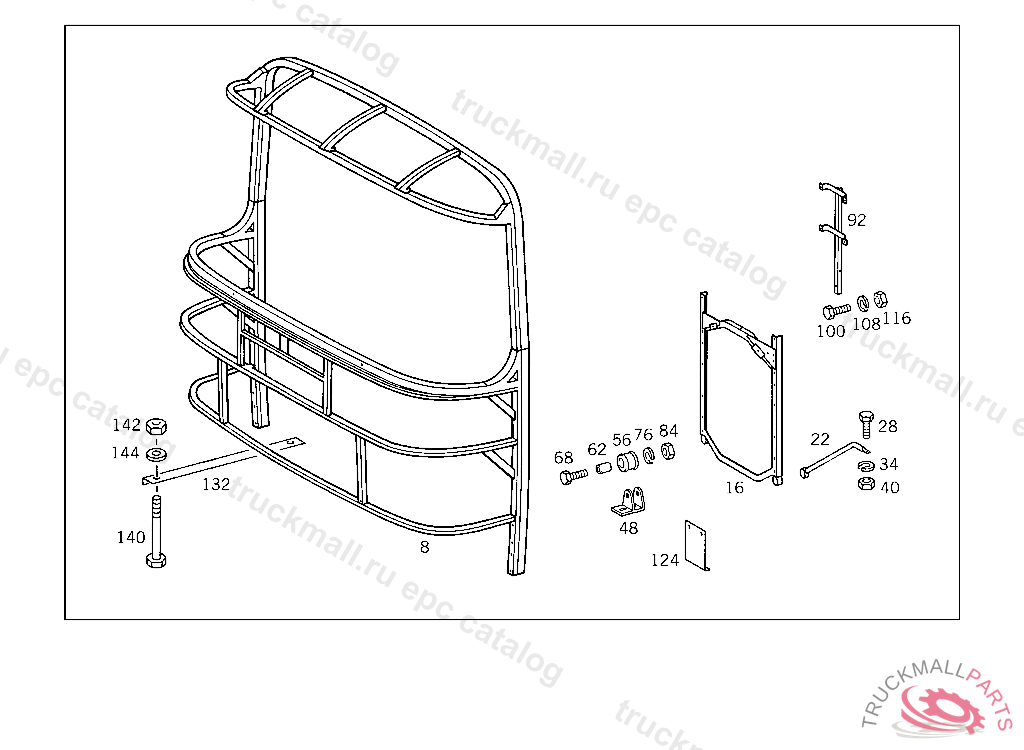

Поз.
Артикул
Описание
8
FRAME
16
FRAME
22
STRUT RADIATOR FRAME TO BODY
28
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
34
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
40
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
48
MOUNTING RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE
56
JOINT RUBBER BRACKET TO SUBSTRUCTURE
62
SPACER TUBE
68
SCREW , Replaced By: N308676012031
76
LOCK WASHER FITTING TO BRACKET
84
NUT STRAP TO SUPPORT
92
BELT
100
SCREW , Replaced By: N304017008034
108
LOCK WASHER
116
NUT LEVER TO SHIFTING SHAFT
124
BRACKET
132
SUPPORT SPARE WHEEL
140
SCREW SPARE WHEEL TO CROSS MEMBER, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
140
HOOK BOLT
142
NUT FUEL TANK TO CONSOLE
144
WASHER
999
999
999
SPACER , Replaced By: A3216420026
999
JOINT RUBBER , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A3216420074
