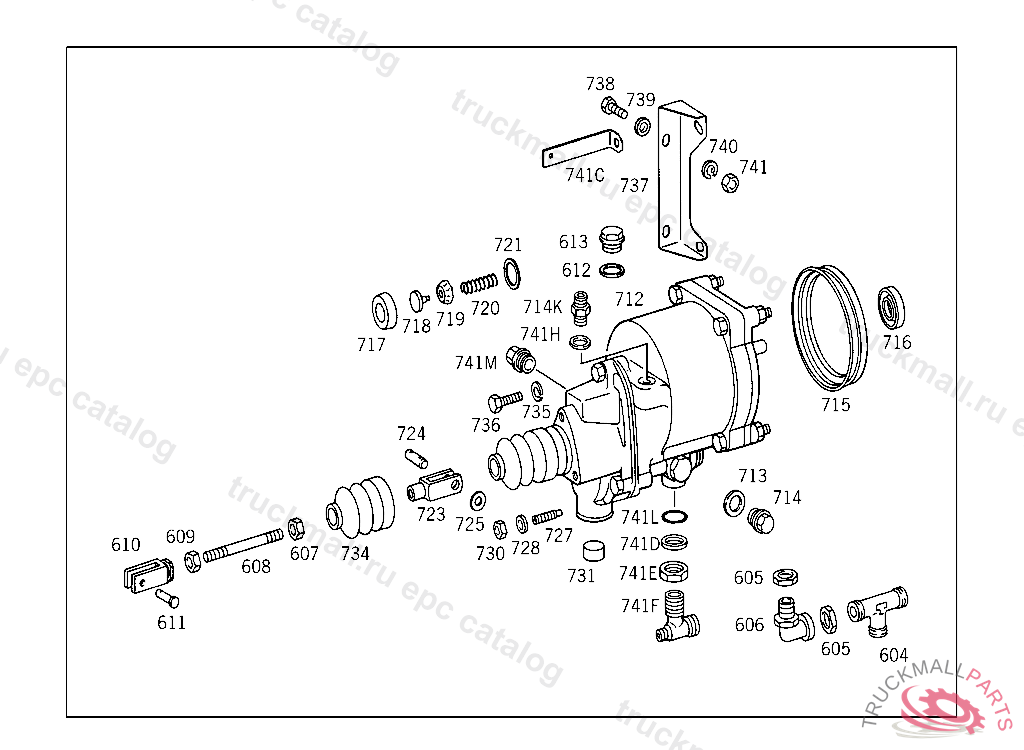

Поз.
Артикул
Описание
604
T-FITTING
605
NUT
606
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
607
NUT BRAKE BOOSTER
608
ROD
609
NUT
610
YOKETO 312 430 43 92,344 430 70 92, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
611
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
612
SEAL RING AIR-PRESSURE-GAUGE CONNECTION
613
SCREW PLUG AT BRAKE BOOSTER
712
BRAKE BOOSTER , Replaced By: A3444317014
713
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
714
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
714
SCREW PLUG AT TANK
716
SEAL RING
717
CUPBOSCH
718
VALVE DISCTO 000 429 48 30
719
VALVE DISCTO 000 429 48 30
720
SPRINGTO 000 429 16 30
721
SEAL RING OIL DRAIN 30X36 MM
723
YOKE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
724
PIN
725
WASHER
727
HEADLESS SETSCREW
728
WASHER
730
NUT LEVER TO SHIFTING SHAFT
731
AIR CLEANER
734
PROTECTIVE CAP BRAKE BOOSTER
735
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
736
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
737
BRACKET BRAKE BOOSTER
738
SCREW BRACKET TO SUBSTRUCTURE
739
WASHER , Replaced By: N000125010532
740
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
741
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BREMSSCHLAUCHHALTER. LOCK , Replaced By: A0004280473
999
BRACKET. LOCK , Replaced By: A6525040038
999
CONNECTOR , Replaced By: A0004292736
999
VALVE"BOSCH"
999
DIAPHRAGMTO 000 429 00 44
999
THRUST WASHERTO 000 429 00 44
999
LOCKTO 000 429 00 44
999
SPRING RETAINERTO 000 429 00 44
999
VALVE NIPPLETO 000 429 00 44
999
SPRINGTO 000 429 00 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
SPRINGTO 000 429 00 44
999
VALVE
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
SCREW BRAKE MASTER CYLINDER, UP TO IDENT NO. 734559,FROM CHASSIS,STANDARD EQUIPMENT
999
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KITTO 001 430 68 01,002 430 19 01
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
T-FITTING AT BRAKE BOOSTER
999
VALVE , Replaced By: A0014296144
999
VALVE , Replaced By: A0024297244
999
PRESSURE REGULATOR , Replaced By: A0024313406
999
REPAIR KITTO 001 429 52 44
999
REPAIR KIT , Replaced By: A0004301407
999
VALVE REAR AXLE AIR RESERVOIR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
999
REPAIR KIT , UP TO 625
999
REPAIR KIT , FROM 626
999
999
999
999
999
999
SCREW , Replaced By: H993414320006
999
STUD , Replaced By: A3024230170
999
CLAMP
999
LOCK
999
CLAMP , Replaced By: A3049950120
999
CLAMP , Replaced By: A1109950401
999
BRACKET
999
999
END PIECE , Replaced By: A3224200347, +001A3529910707
999
END PIECE
999
999
999
999
999
999
GROMMET
999
HOSE PRESSURE REGULATOR BREATHING
999
999
999
999
999
999
SPHERICAL PIECE , UP TO REAR AXLE 11016,FROM REAR AXLE SEE SPARE PARTS LIST 816
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
999
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
ELBOW FITTING AT TRUCK-TRACTOR BRAKE VALVE
999
999
999
999
999
999
REPAIR KIT BRAKE BOOSTER
999
999
BRACKET BRAKE HOSE
999
BRAKE CYLINDER. BRAKE BOOSTER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
999
RING
999
SCREW , Replaced By: A3544230171
999
999
SCREW PROTECTION PLATE TO BRACKET
999
COTTER PIN BATTERY COVERING TO A 386 540 70 14
999
COTTER PIN PULL ROD TO LEVER
999
COTTER PIN STRAP TO CONSOLE 20 L
999
COTTER PIN
999
COTTER PINTO 000 431 24 05
999
COTTER PINTO 000 431 24 05
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW , Replaced By: N000933008134
999
SCREW BRACKET TO EXHAUST PIPE BRACKET
999
SCREW SCREENING PLATE TO BRACKET,K 142858
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017008034
999
NUT BALL PIVOT TO LEVER
999
PIN , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
TURNBUCKLE
999
GLAND , Replaced By: A0019901167
999
SEAL RING
999
SEAL RING LINE CONNECTION
999
SHEET METAL SCREW WIRE CABLE TO MOUNTING CLAMP,774712
999
UNION SCREW , Replaced By: A0004280072
999
SLIP RING. SEAL RING AT DISTRIBUTOR
999
SEAL RING COMPRESSED AIR LINE TO DOUBLE FITTING
999
SLIP RING BRAKE LINE COUPLING
999
THRUST RING , Replaced By: N915065018101
999
UNION NUT
999
DOUBLE FITTING ,376447
999
ELBOW FITTING
999
ELBOW FITTING LINE CONNECTION
999
NUT CHECK VALVE TO AIR RESERVOIR
999
LOOM TIE , ELIMINATED NO LONGER REQUIRED
999
RING , Replaced By: A0005830296
999
LOCK WASHER
999
UNION NUT , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
999
CLAMP LINE MOUNTING
